EasyLink-PRO-US - Wireless Bridge Kit, Preconfigured, IP67, 867Mbps 802.11a/n/ac, IP67, 5GHz/13dBi Panel Antenna

EasyLink-PRO-US - Wireless Bridge Kit, Preconfigured, IP67, 867Mbps 802.11a/n/ac, IP67, 5GHz/13dBi Panel Antenna

SKU:EasyLink-PRO-US

Regular price $995.00 USD
Regular price Sale price $995.00 USD
Sale Sold out

Complete Wireless Bridge Kit

EasyLink-PRO-US

Designed for Point-to-Point wireless remote connectivity

EtherWAN's EasyLink is a pre-configured point-to-point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it, and you are connected.

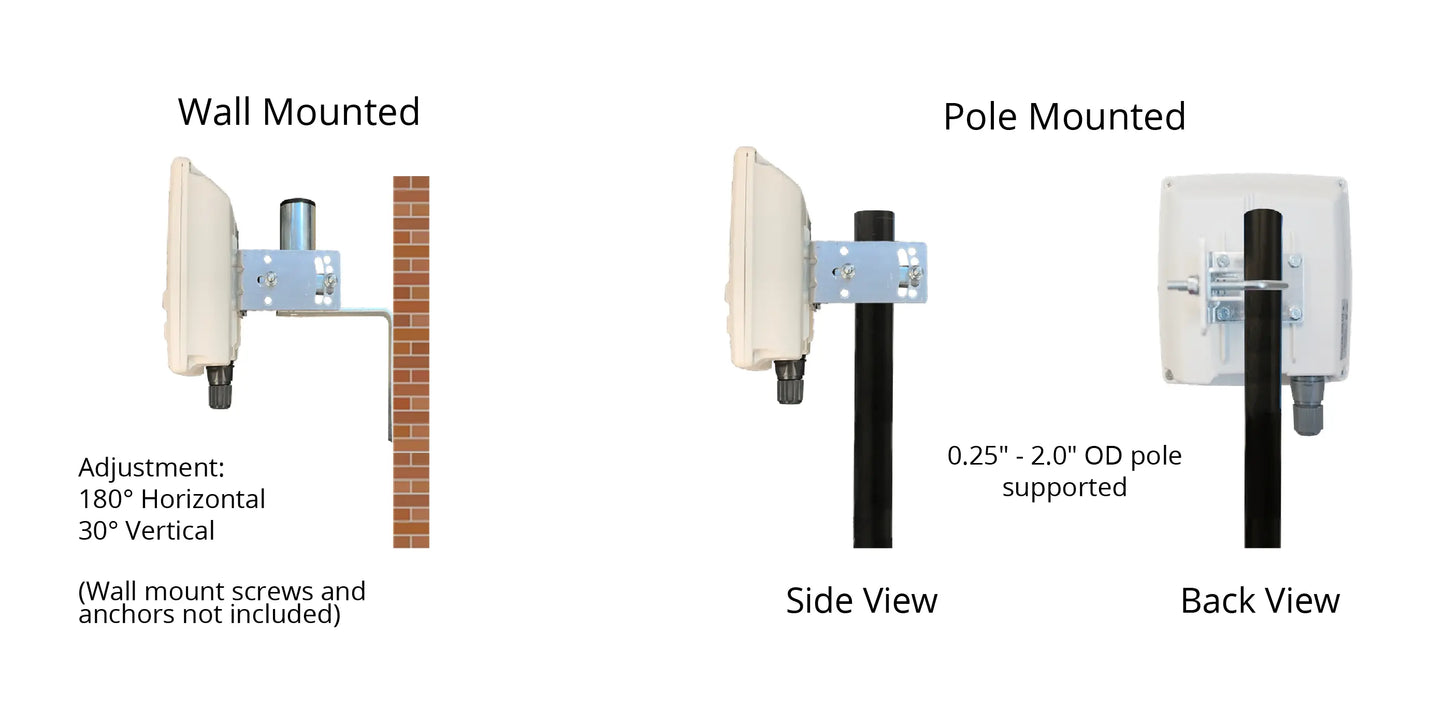

  • Mount units to a pole or wall using included mount kit
  • Signal strength LED's for easy alignment
  • Just power and align using supplied PoE injectors and power supplies
  • No technical expertise needed
  • Highly secure, encrypted & authenticated wireless connection (WPA2)
  • Every kit has unique SSID and security settings
  • Hardened-grade for outdoor & harsh environments
  • Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
  • Wide operating temperature range (-40 to 167°F)
  • Connections up to 2 miles away

Features

  • Speeds up to 867Mbps
  • Highly Secure connections
  • 2 x 2 MIMO antennas with high gains
  • Hardened grade for Outdoor and Harsh Environments
  • Wide operating temperature range for extreme environments
  • Fanless and ruggedized outdoor IP67 enclosure
  • RF strength LEDs to ease installation effort

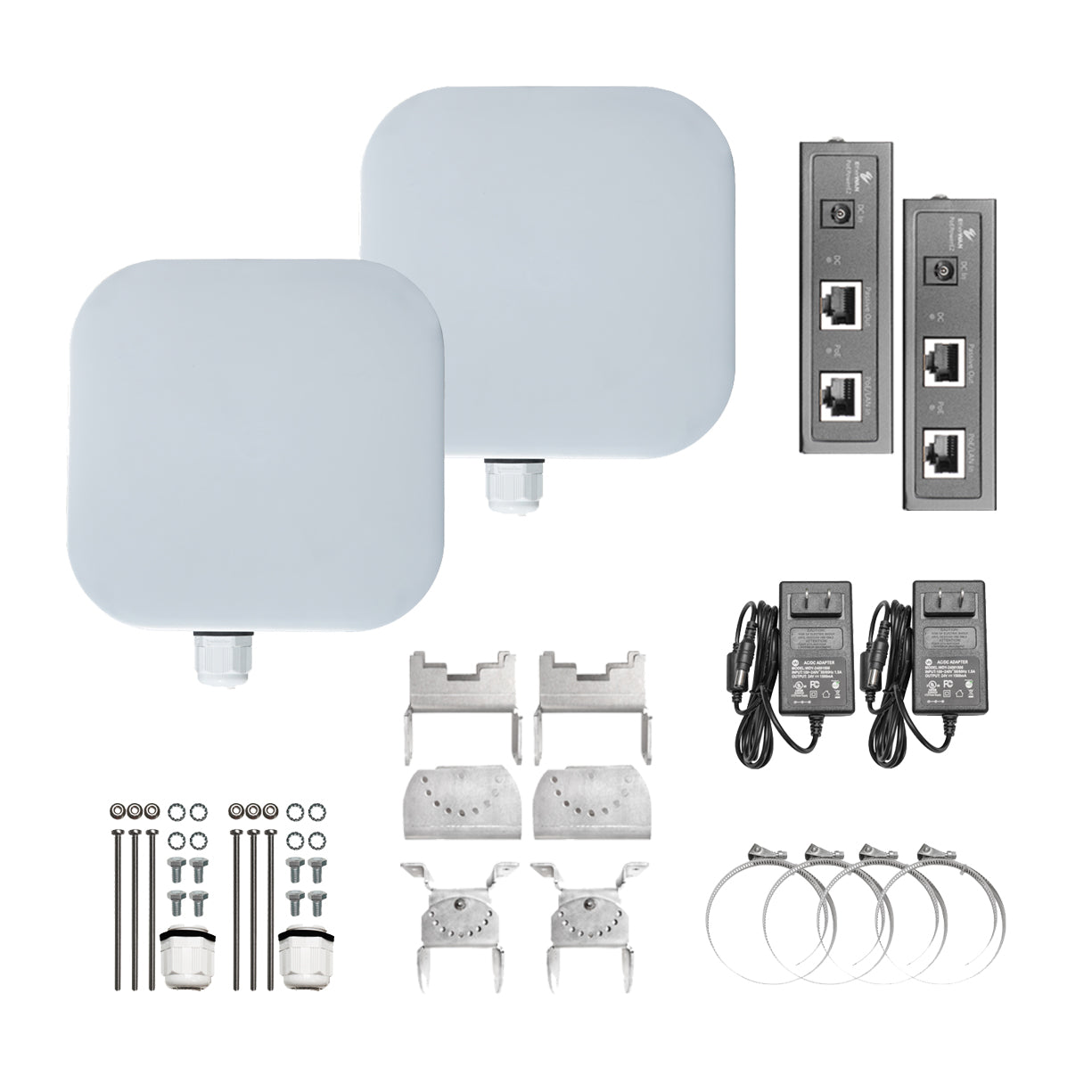

Includes

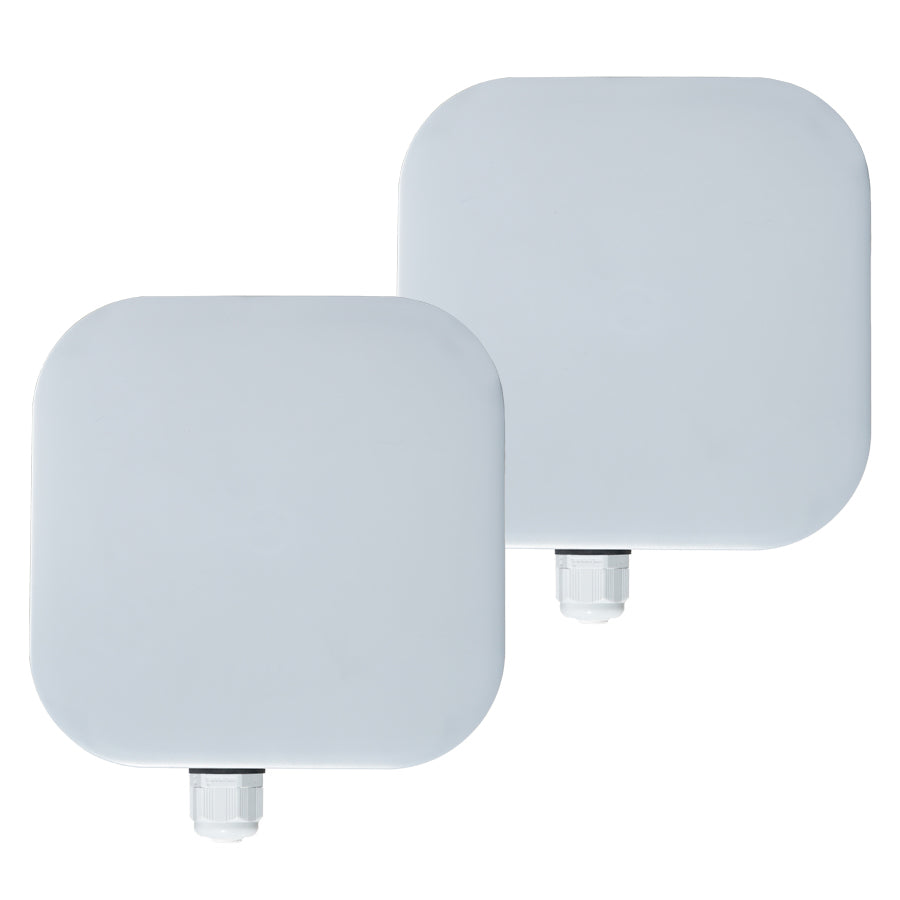

  • 2 x EasyLink Units
  • 2 x Wall and Pole Mount Kits
  • 2 x PoE Injectors
  • 2 x Power Supplies
  • 2 x Active to Passive PoE Adapters

Click here for additional information

For detailed specifications, download the datasheet here

100 in stock

View full details

Collapsible content

More Information

POE TYPE: Passive PoE
ANTENNA TYPE: 5GHz/13dBi Internal Panel
MOUNT TYPE: Wall, Pole
WIRELESS STANDARD: 802.11a/n/ac
SECURITY: AES, WPA2
RADIO FREQUENCY: 5.8 GHz
POWER INPUT: 8-30VDC Passive PoE (24V Passive PoE Injector included)
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Unmanaged
LAYER 3: No
10/100/1000 PORTS: 1
WIRELESS TYPE: Bridge
