EASYPOE8P - EasyPoE Lite 8P (8-Ports 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor)

• Comes with Surge Suppressor
• 8-Ports 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor
• NEMA 4x rated indoor/outdoor design for non-ventilated & harsh environments

• Wide operating temperature -40 to 75°C (-40 to 167°F)

• Fanless, integrated design

• Weather-resistant, anti-corrosion, and vandal-resistant design

• Time/cost saving features

• Integrated components ready out of the box

• Wall and pole mountable (pole mounting kit option available)

• Preinstalled bulkheads for cable connections

• Replaceable hardened components

• The integrated PoE switch comes with 4 or 8-port options at full 30W PoE per port

• Outdoor-rated, IP67 power supply

EtherWAN's EasyPoE® Lite series is an integrated solution that combines a PoE switch, power supply, and a surge suppressor, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with either 4 or 8 gigabit PoE ports that provide a full 30W max PoE output per port (with a power budget of 120W for 4-ports and 240W for 8-ports), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

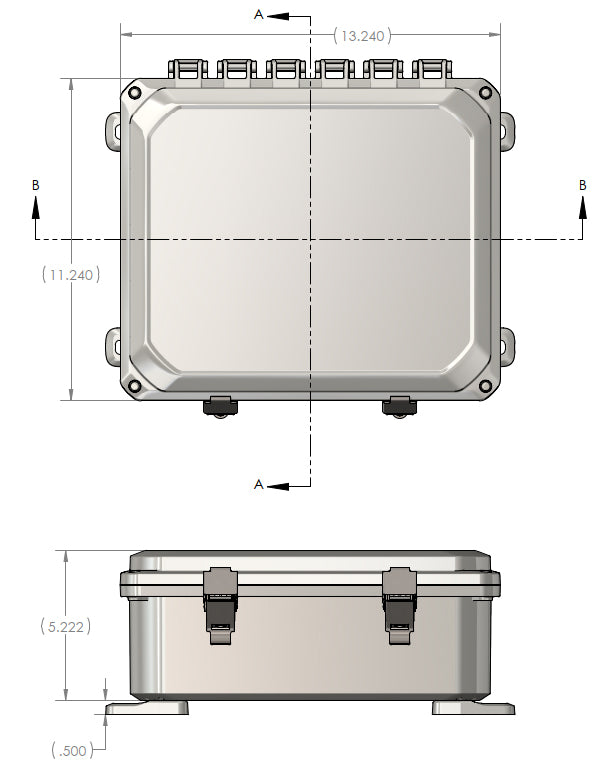

Dimensions
11.75" x 5.22" x 13.81"(W x D x H)
298mm x 127mm x 351mm (W x D x H)

Weight
8.9lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Casing Material
Polycarbonate (PC)

Input
100-277VAC

PoE Power Budget
8-Port Switch: 240W @ 75°C
