EASYPOEBOX4F : Outdoor Ethernet Switch Enclosure PoE Integrated

EASYPOEBOX4F : Outdoor Ethernet Switch Enclosure PoE Integrated

EASYPOEBOX4F

$2,119.78 USD
$2,119.78 USD
Sale Sold out

EASYPOEBOX4F : Outdoor Ethernet Switch Enclosure

Managed gigabit ethernet PoE switch with (4) Gigabit PoE Ports + (2) SFP fiber ports. Provides 15W up to 90W with 165W PoE power budget. Wall or pole mount, 100-240VAC power input.

  • (4) Port 10/100/1000BASE-T PoE + (2) Port 100/1000BASE SFP Managed Ethernet Switch
  • NEMA-rated indoor/outdoor design for non-ventilated & harsh environments
  • Wide operating temperature -40 to 70°C (-40 to 158°F)
  • Fanless design
  • Weather-resistant, anti-corrosion, and vandal-resistant design
  • Time/cost saving features
  • Integrated splicing tray for safe fiber connection storage
  • Adapter for wall and pole mounting
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
  • Smart PoE and Power
  • Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • PoE watchdog monitors status of connected PoE devices
  • Built-in power supply and surge protection with auxiliary DC power output

EtherWAN's EasyPoE® Box Series is an integrated solution that combines a managed PoE switch, splice tray, power supply, and a DIN-rail for accessories, all in a single, secure, NEMA-rated cabinet enclosure.

Equipped with up to 4 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and 2 uplink ports, the smart camera box series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

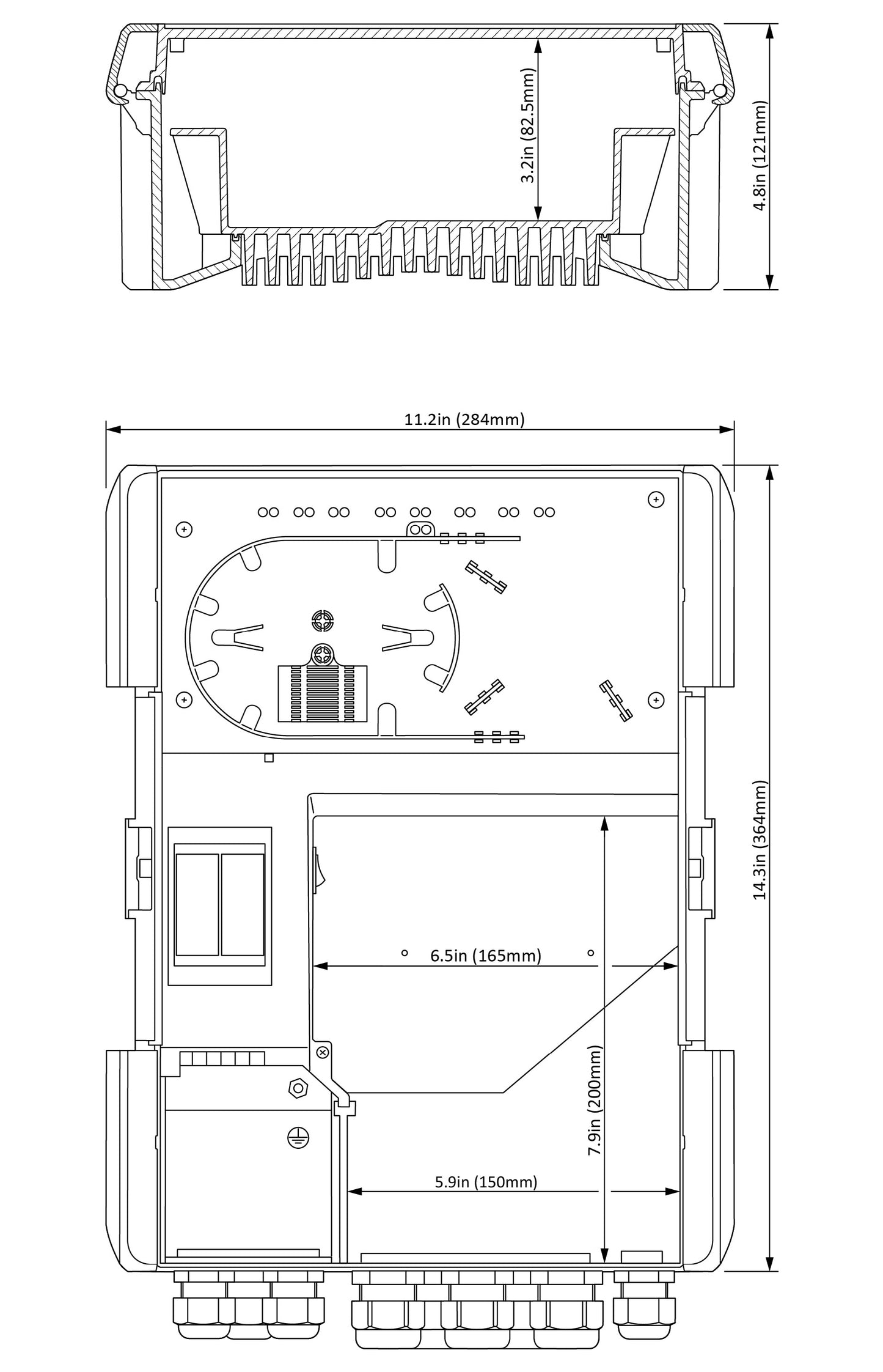

Dimensions
11.2" x 4.8" x 14.3" (W x D x H)
284mm x 121mm x 364mm (W x D x H)

Weight
9.5 lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Please note that the EASYPOEBOX4F managed PoE ethernet switch enclosure is a very popular item and might be on backorder. Purchasing this unit will add you to the waiting list immediately. Lead time is approximately 4 weeks if it's out of stock. Updates on inventory status will be communicated to you through email or phone calls as soon as the information is available.

Please contact us at info@etherwanshop.com if you want to know the most updated inventory availability.

Low stock: 1 left

View full details

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 70°C (-40 to 158°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100-240VAC
ALARM RELAY: No
MOUNT TYPE: Panel, Wall, Pole
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 165W
REDUNDANT POWER: No
10/100/1000 PORTS: 4
10 GIG PORTS: No
FIBER TYPE: 100MB SFP, 1000MB SFP
FIBER PORTS: 2
FIBER/SFP CONNECTOR: SFP
FIBER DISTANCE: SFP (Various distances)
INDUSTRY STANDARDS: UL 61010
ROUTING PROTOCOLS: RIP v1 & v2
