EPOW-54-240 - Hardened Power Supply 240W, 54VDC, 100-277 VAC Input, NEMA-TS2 rated, 0-11.1A w/ Open Wire (US Plug)

Hardened Power Supply 54V 240W

With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-54-240 is a 54V 240W hardened power supply designed to operate in the most extreme environments. The EPOW-54-240 has a 240W power budget and built-in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.

• Active built-in PFC for max power distribution efficiency
• Constant voltage across output terminal
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• IP67 total dust protection and water resistance
• Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
• High impact, thermal shock, and electrical noise resistance
• AC and DC cables pre-attached

Casing Material
Aluminum

IP Rating
IP67 (Dust Tight and Waterproof)

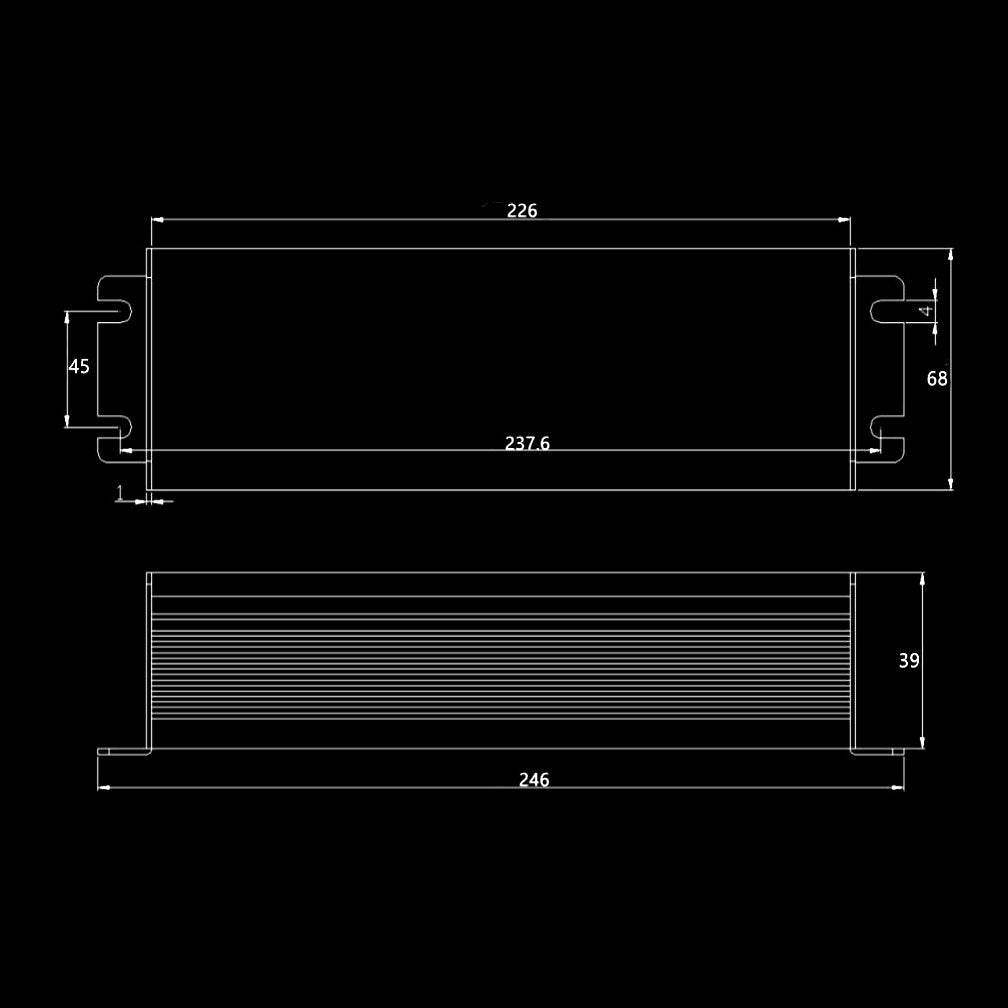

Dimensions
246mm x 68mm x 39mm (W x D x H)
9.69" x 2.68” x 1.54"

Weight
2.86lbs (1.3kg)

Installation Type
Wall mounting

Click here for additional information

For detailed specifications, download the datasheet here
