EX19244 - Smart Managed 24-Port Gigabit PoE Ethernet Switch (24) 10/100/1000BASE-T(X) PoE Ports + (4 SFP combo)

EX19244

EtherWAN's EX19244 provides a 24-port managed switching platform supporting IEEE802.3at Power over Ethernet, high performance switching with features required for small-business or enterprise environments where sustained connectivity is crucial.

The EX19244 is equipped with (24) 10/100/1000BASE Gigabit PoE ports, with four being used as combo ports with Gigabit SFP ports. The EX19244 is feature rich with full wire speed throughput and management features, making it a powerful network switch.

The IEEE802.3at PoE ports provide up to 30W/port with a PoE power budget of 460W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption.

Users are able to access management features such as IP configuration, QoS, VLANs, trunking and more, via a web browser interface.

• Easy to use web GUI
• VLAN configuration
• Comprehensive IP configuration and QoS
• Total PoE power budget of 460W to deliver sufficient power to all connected PoE devices
• Overloading protection
• Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

Casing Material
Metal

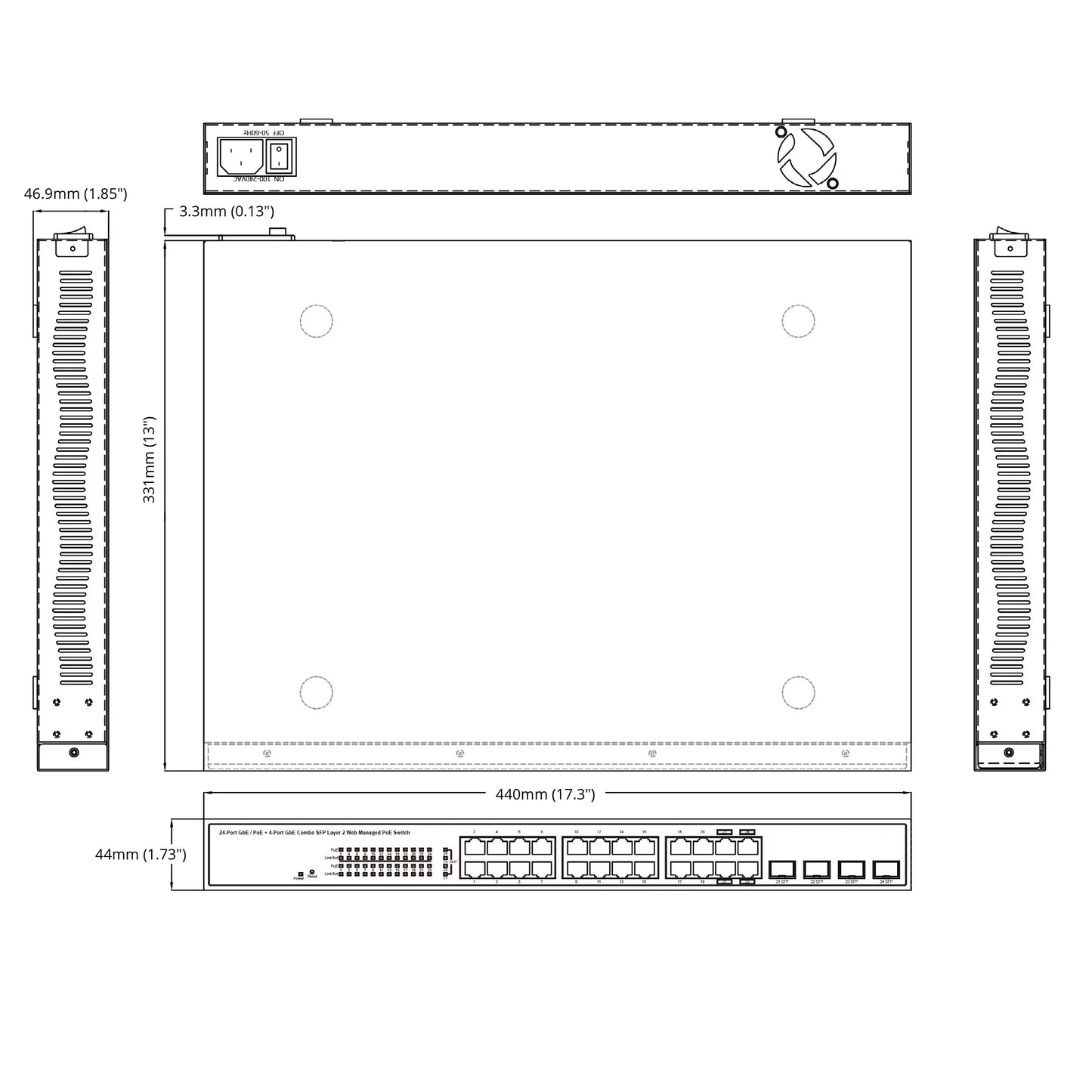

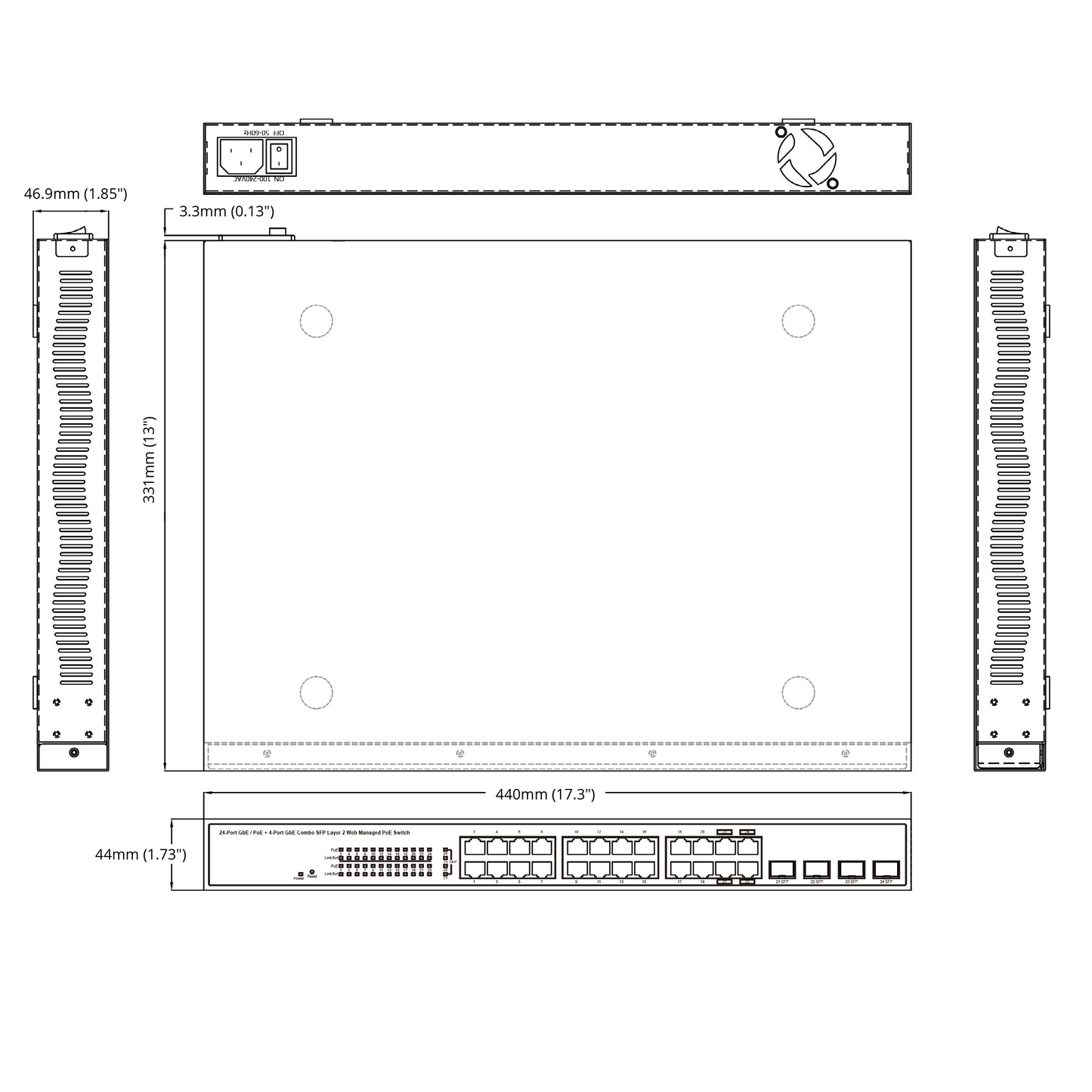

Dimensions
440mm x 331mm x 44mm (W x D x H)
17.3" x 13" x 1.73"

Weight
9.75lbs (4.4kg)

Installation Type
Rack mounting

Click here for additional information

For detailed specifications, download the datasheet here
