PoEPowerEZ - Hardened Gigabit 802.3af/at Active to Passive PoE Converter & Passive Injector

PoEPowerEZ

The PoEPowerEZ is a dual function Passive PoE Injector providing 24VDC Passive PoE Power and 10/100/1000M Ethernet to Passive PoE PD Devices such as EtherWANs EasyLink Series of Preconfigured Wireless Bridge Units.

With the PoEPowerEZ, there are 2 ways to power a Passive PoE device. Using an standard, external power supply with a DC Jack (5.5 x 2.1mm), the PoEPowerEZ acts as a 24VDC Passive PoE Injector. When using a Standard 802.3af/at PoE Switch or Injector, the PoEPowerEZ can be used to convert the active PoE connection from the switch or injector to 24VDC Passive PoE with no external power supply needed. Our Passive PoE Injector is designed to simplify your PoE connectivity and offers a flexible solution to power up your devices. It is compact, easy to install, and provides reliable power and data transmission to your devices.

Casing Material
Rugged Metal, IP30 Protection

IP Rating
IP30

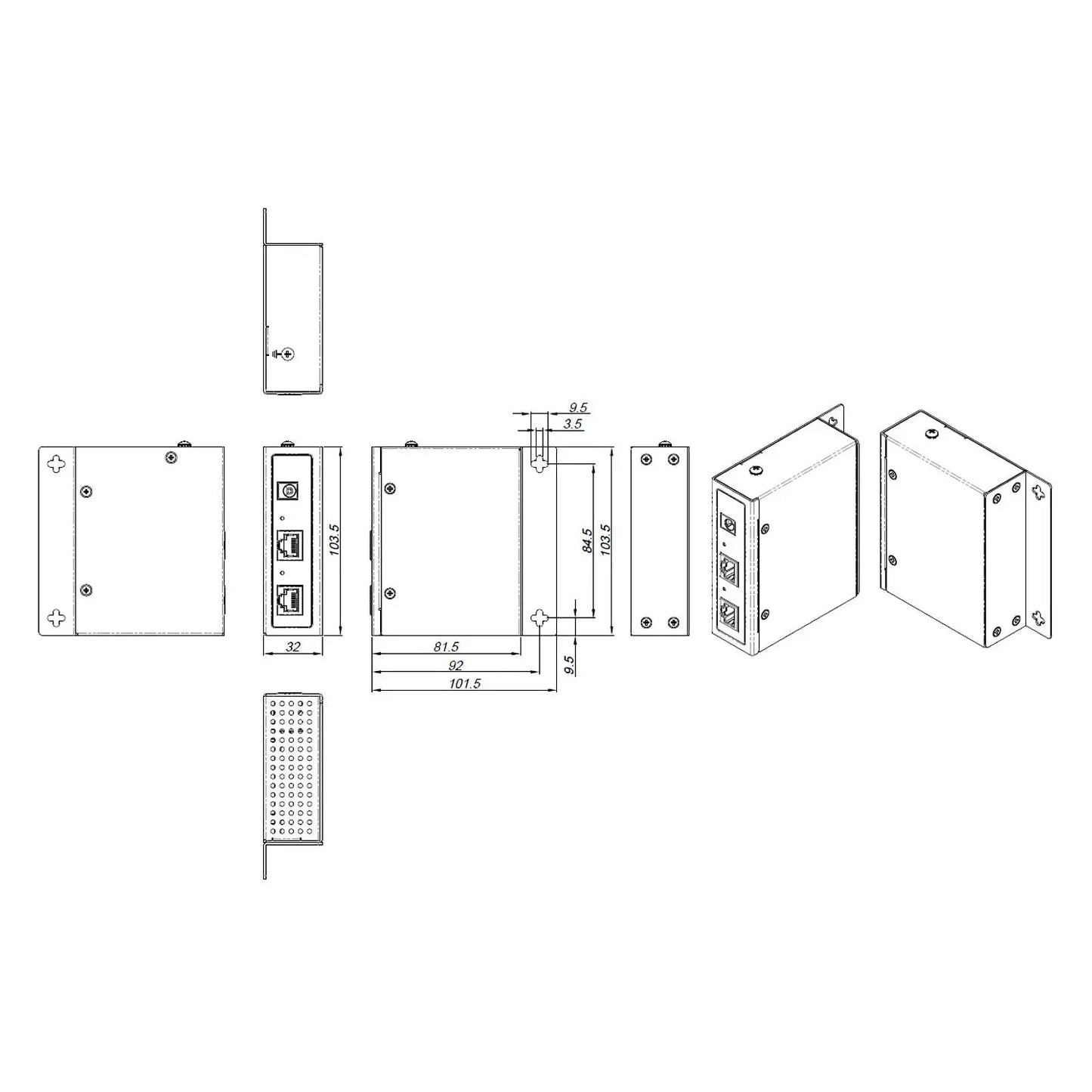

Dimensions
103.5mm x 32mm x 81.5mm
4.07" x 1.26" x 3.21"

Installation
Wall mounting

Click here for additional information

For detailed specifications, download the datasheet here
