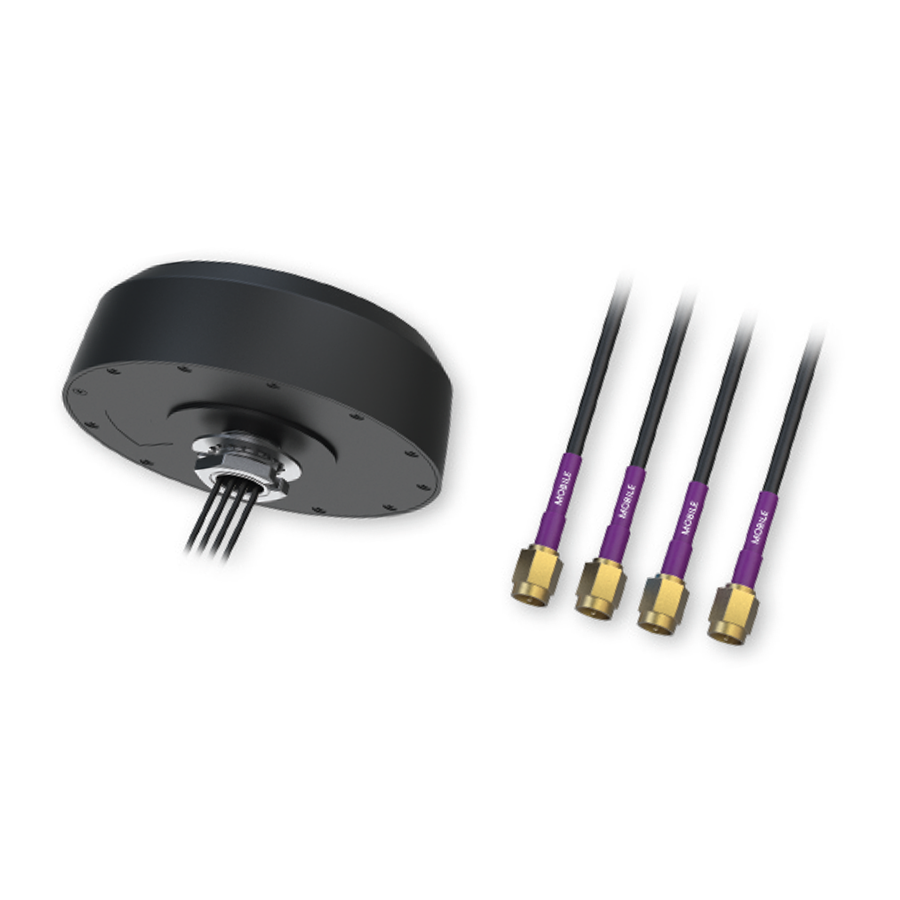

EASYCELL5G-ANT-RFC - 5G Combo MIMO Mobile Roof SMA Antenna for EASYCELL5G

The EtherWAN 5G Combo MIMO Mobile Roof Antenna is a rugged, high-performance solution designed to deliver reliable 5G and LTE connectivity in mobile and outdoor environments. Engineered for seamless integration with EtherWAN’s EasyCell 5G routers, this antenna ensures optimal signal strength and stability, even in challenging conditions.

• Broadband Coverage: Supports 600–960 MHz and 1400–6000 MHz frequency ranges for full 5G and LTE spectrum compatibility

• Omni-Directional Design: Maintains consistent signal reception across all directions, ideal for mobile applications

• High Gain Efficiency: Up to 4.7 dBi gain for enhanced throughput and reduced latency

• Ruggedized Construction: IP67/IP69K-rated enclosure resists water, dust, and vibration—perfect for harsh environments

• Extreme Temperature Tolerance: Operates reliably from -40 °C to +85 °C.

• Secure Mounting: Screw-mount design with M27 nut ensures stable rooftop installation

• Flexible Connectivity: Includes 4x SMA Male connectors and 4x ALS302 cables (3000 mm) for easy integration

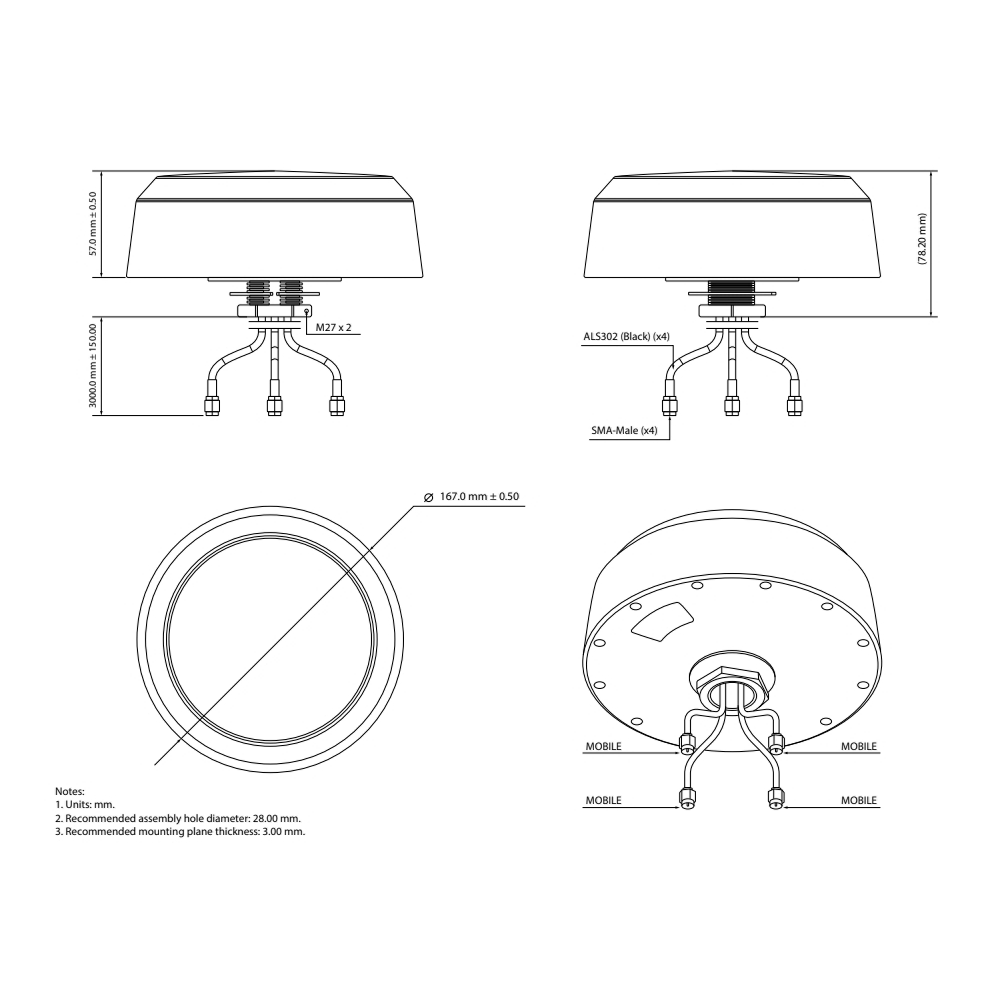

Dimensions
167mm x 167mm x 57mm (W x H x D)
6.57" x 6.57" x 2.24"

Weight
.70kg (1.54lbs)

Operating Temperature
-40°C to 85°C (-40°F to 185°F)

Click here for additional information

For detailed specifications, download the datasheet here
