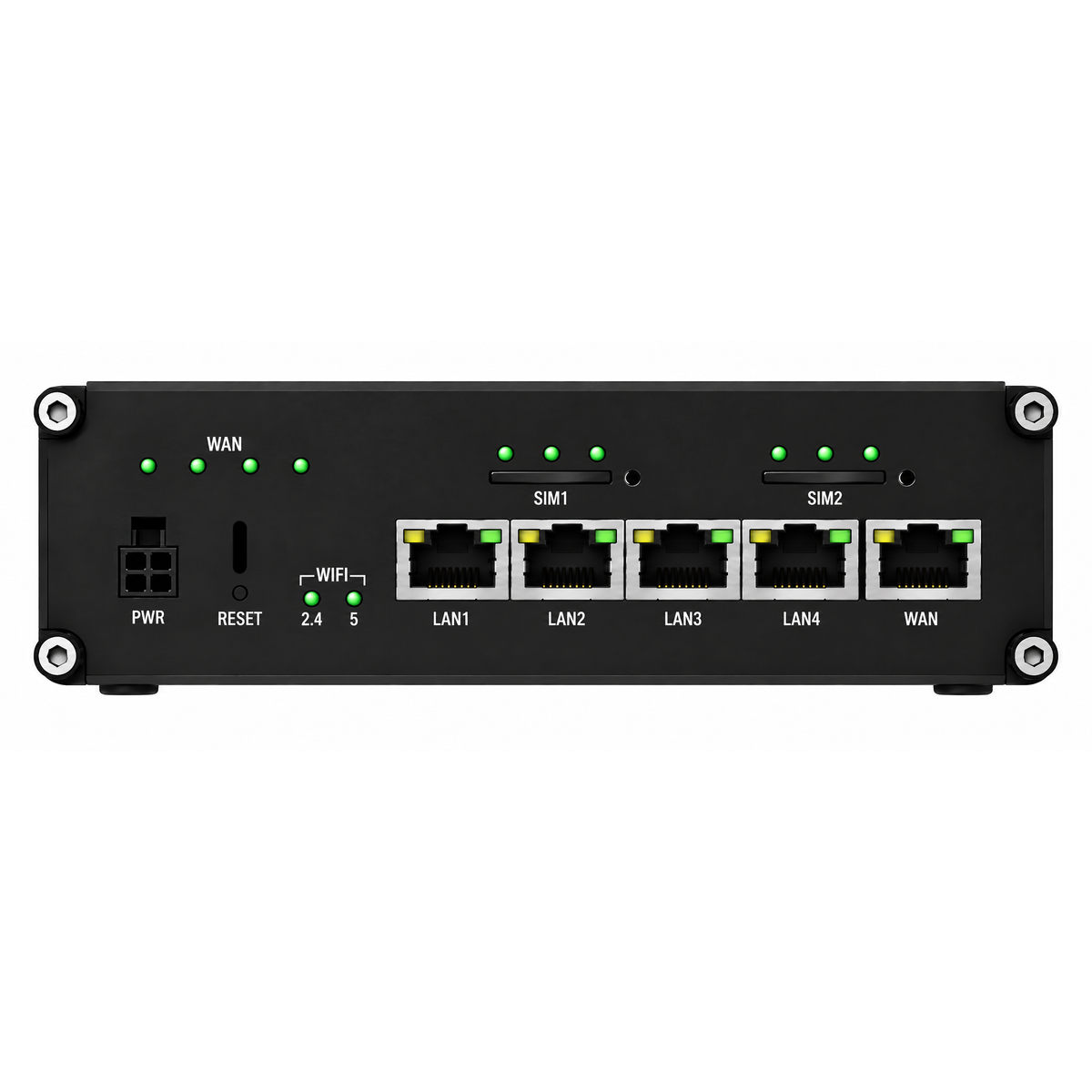

EASYCELL5G Industrial 5G Cellular Router

The EtherWAN EASYCELL5G is a hardened industrial 5G cellular router designed for reliable, high-speed connectivity in demanding industrial and outdoor environments. Supporting both SA and NSA 5G architecture with speeds up to 3.4 Gbps, it also provides backward compatibility with 4G LTE for flexible network deployment.

Built for applications where maintaining connectivity is critical, the EASYCELL5G features WAN failover that automatically switches to an available backup connection if the primary network goes down. HexaCloud remote device monitoring, Auto APN, wireless access point functionality and an operating temperature range of -40°C to 75°C make it ideal for CCTV, ANPR, remote sites and other industrial applications requiring dependable cellular connectivity.

EASYCELL5G Industrial 5G Router Features

• Supports both SA & NSA 5G architecture (3.4 Gbps Max.) speed — backward compatible with 4G (LTE Cat 19/18)
• Remotely monitor devices connected to EasyCell with ease via responsive and user-friendly HexaCloud portal
• Integrated with WAN Failover which automatically switches to available backup connection
• Ideal for CCTV, ANPR, and more where near-permanent connection and high data rate are necessary
• EASYCELL's Auto APN allows the device to analyze the SIM card and automatically select the correct APN
• Provides a direct connection between the mobile ISP and LAN devices — acts as a wireless access point with hotspot functionality
• Hardened: designed for harsh outdoor environments — Operating temperature -40 to 75°C (-40 to 167°F)

Industrial 5G Router Applications
The EASYCELL5G provides reliable 5G cellular connectivity for industrial and outdoor network applications where wired internet may be unavailable or network redundancy is required. Typical applications include CCTV and video surveillance, ANPR systems, transportation networks, remote facilities, industrial IoT deployments and backup WAN connectivity.

What is an industrial 5G router?
An industrial 5G router provides cellular network connectivity while being designed for demanding environments and applications requiring reliable operation.

Does the EASYCELL5G support 4G LTE?
Yes. EASYCELL5G supports SA and NSA 5G architecture and is backward compatible with 4G LTE Cat 19/18.

Does EASYCELL5G support WAN failover?
Yes. Its WAN failover functionality can automatically switch to an available backup connection if the primary connection becomes unavailable.

Can EASYCELL5G operate in extreme temperatures?
Yes. EASYCELL5G is designed for harsh environments and has an operating temperature range of -40°C to 75°C (-40°F to 167°F).

Casing Material
Aluminum housing

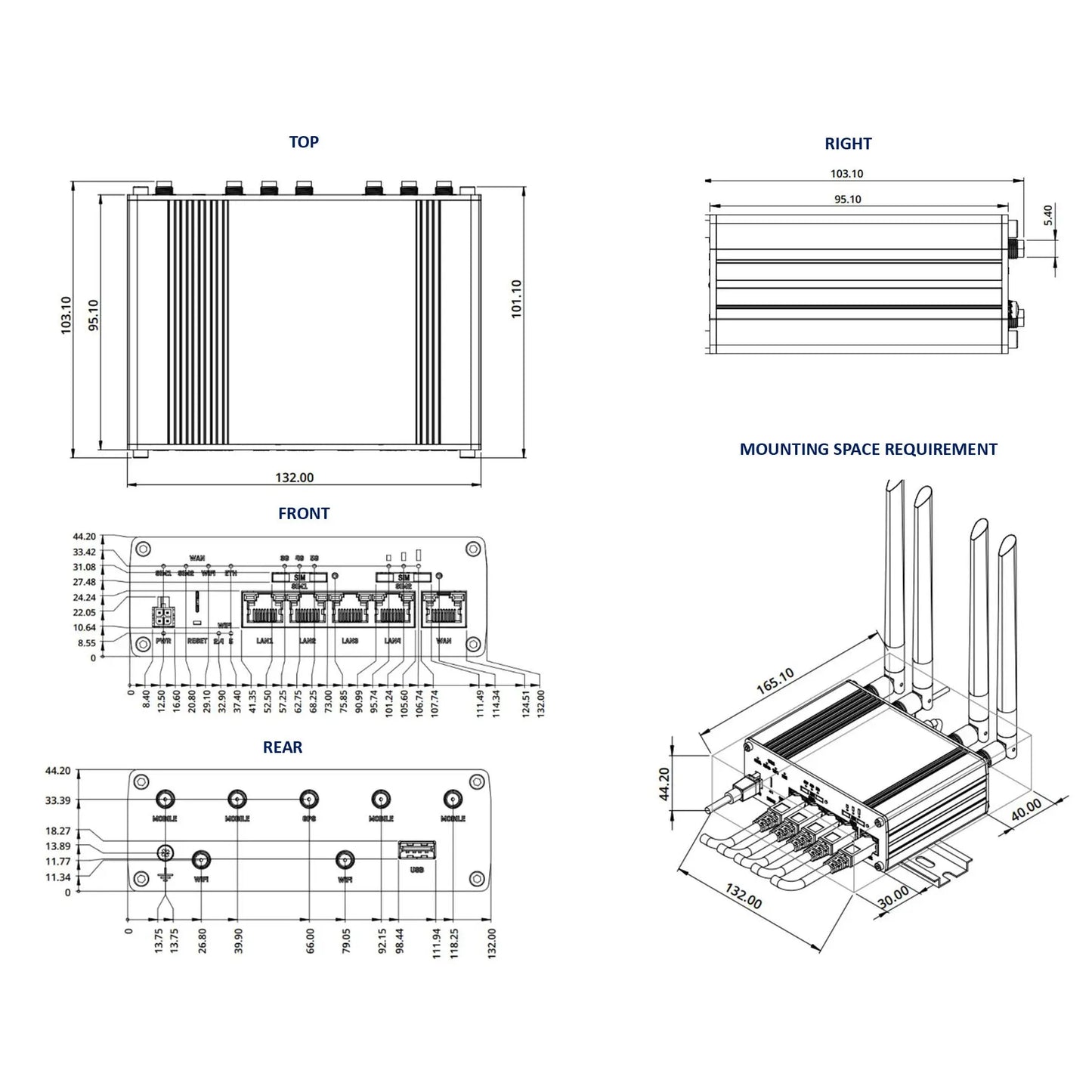

Dimensions
132mm x 44.2mm x 95.1mm (W x H x D)
5.2" x 1.74" x 3.74"

Weight
.52kg (1.14lbs)

Mounting Options
DIN rail (can be mounted on two sides), flat surface placement

Click here for additional information

For detailed specifications, download the datasheet here
