EASYLINK-60 | Outdoor WiFi Antenna | 60GHz Wireless Bridge Kit

EASYLINK-60 | Outdoor WiFi Antenna | 60GHz Wireless Bridge Kit

SKU:EASYLINK-60

Regular price $1,257.31 USD
Regular price Sale price $1,257.31 USD
Sale Sold out
Shipping calculated at checkout.

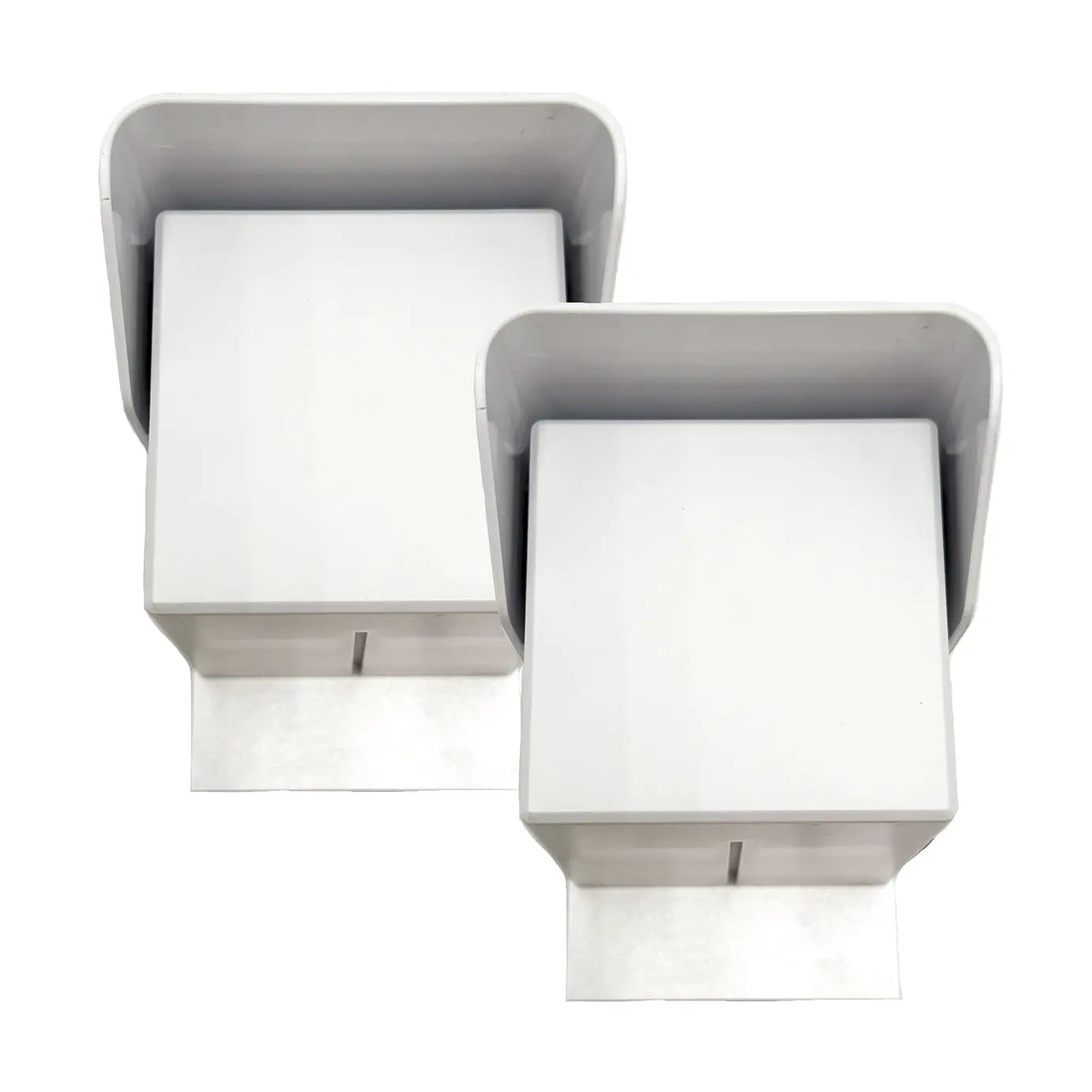

EASYLINK-60 Industrial Outdoor Wireless Bridge Kit

Preconfigured 60GHz point-to-point wireless bridge kit with two paired units, Gigabit Ethernet connections, and 5GHz failover.

First orders being fulfilled now — very limited stock. Technically this is not officially launched yet.

The EtherWAN EASYLINK-60 connects Ethernet networks between buildings and remote locations without running network cable across the entire distance. Its integrated directional antennas create a dedicated wireless link for remote switches, IP cameras, and other Ethernet equipment.

The two units arrive paired with unique wireless security settings. Mount them, connect power and Ethernet cables, and use the signal-strength LEDs to align the antennas.

Key Features

  • Preconfigured two-unit kit: Includes both ends of the point-to-point wireless connection.
  • 60GHz wireless link: Uses 802.11ad technology for communication between the paired units.
  • 5GHz failover: Provides a backup wireless connection when the primary 60GHz link is unavailable.
  • Gigabit Ethernet connectivity: Each unit includes one Gigabit Ethernet port for connection to local network equipment.
  • Secure wireless communication: WPA2 security with a unique hidden SSID and randomly generated passphrase.
  • Hardened outdoor construction: Fanless, IP67-rated polycarbonate enclosure with included solar shields.
  • Wide operating temperature: Wireless units are rated from −40 to 70°C (−40 to 158°F).
  • Simplified alignment: Built-in signal-strength LEDs help position the units.
  • Power accessories included: Supplied with PoE injectors, power supplies, and waterproof cable connections.

Applications

Connect networks between separate buildings, extend connectivity to gates and parking areas, or link remote IP surveillance equipment where installing fiber or copper cabling is difficult. Plan for a clear, unobstructed path between the antennas.

What’s Included

  • Two preconfigured EASYLINK-60 wireless units
  • Two solar shields
  • Two PoE injectors
  • Two power supplies
  • Two waterproof cable connections
  • Two pole clamps
  • Two administrator login handouts

Ethernet cables are sold separately.

Common Questions

Do I need to purchase a second unit?
No. The kit includes two paired units, providing both ends of the wireless bridge.

What does the 5GHz failover connection do?
It provides a backup connection when the primary 60GHz link is unavailable. Backup-link performance can differ from the primary connection.

Do I still need Ethernet cables and power at both locations?
Yes. Each wireless unit needs an Ethernet cable to connect to its local switch or other Ethernet equipment through the included PoE injector. Each location also needs a suitable power source.

How far apart can the units be installed?
Plan for connections up to 1 mile with clear line of sight and careful alignment. Actual performance depends on distance, weather, interference, and installation conditions.

Casing
Polycarbonate, IP67

Dimensions
190.5mm x 114.3mm x 76.2mm (L x W x H)
7.50" x 4.50" x 3.00"

Weight
Approximately 0.60kg (1.31lbs.) per unit

Power Input
18–48VDC PoE, using the included power accessories

Power Consumption
13W maximum per unit

Installation
Pole or wall mounting, pole clamps included

Outdoor Ethernet Cable
Shielded Outdoor CAT6 Cable — Connects each EASYLINK-60 unit to its local Ethernet network through the included PoE injector.

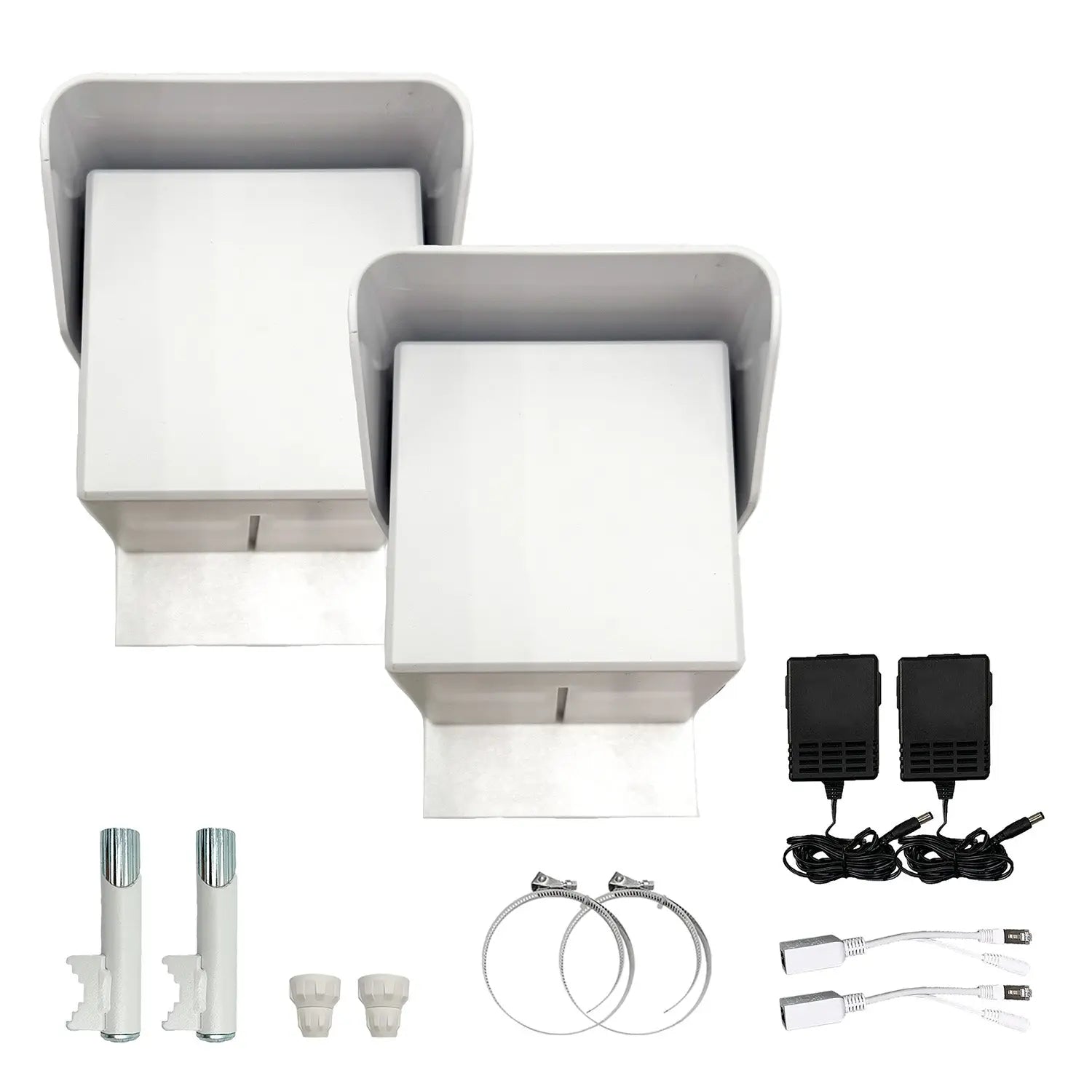

EtherWAN EASYLINK-60 wireless bridge kit with two units, power supplies, PoE injectors, cable glands, and mounting hardware

For detailed specifications, download the datasheet here

Please note that the EASYLINK-60 outdoor WiFi antenna is a very popular item and inventory is very limited.

If it's out of stock, purchasing this unit will add you to the waiting list immediately. Lead time is approximately 4-6 weeks. Updates on inventory status will be communicated to you through email or phone calls as soon as the information is available.

Please contact us at info@etherwanshop.com if you want to know the most updated inventory availability.

Low stock: 4 left

View full details

Collapsible content

More Information

MOUNT TYPE: Wall, Pole
WIRELESS STANDARD: 802.11ad, 5GHz backup connection
SECURITY: WPA2
RADIO FREQUENCY: 60GHz primary, 5GHz failover
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: −40 to 70°C (−40 to 158°F)
MANAGEMENT TYPE: Unmanaged
LAYER 3: No
ETHERNET PORTS: One Gigabit Ethernet port per unit
WIRELESS TYPE: Point-to-point bridge
ENCLOSURE RATING: IP67
POWER INPUT: 18–48VDC PoE
