EASYPOE34X-PNC - NEMA-Rated Indoor/Outdoor Polycarbonate Enclosure (12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch)

EASYPOE34X-PNC - NEMA-Rated Indoor/Outdoor Polycarbonate Enclosure (12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch)

SKU:EASYPOE34X-PNC

Regular price $7,210.00 USD
Regular price Sale price $7,210.00 USD
Sale Sold out

EasyPoE Pro Series

EASYPOE34X-PNC - NEMA-4X Polycarbonate Enclosure System with integrated PoE switch, power supply, circuit breaker, surge suppressor, and cable management. Managed gigabit ethernet PoE switch with (12) Gigabit PoE Ports + (4) 1/10G SFP+ ports. IEEE802.3bt 90W with 360W PoE power budget. Wall or pole mount, 100-240VAC power input.

EASYPOE PRO systems are made to order, and the current estimated lead time is 6-8 weeks.

If you have any question please contact us at info@etherwanshop.com

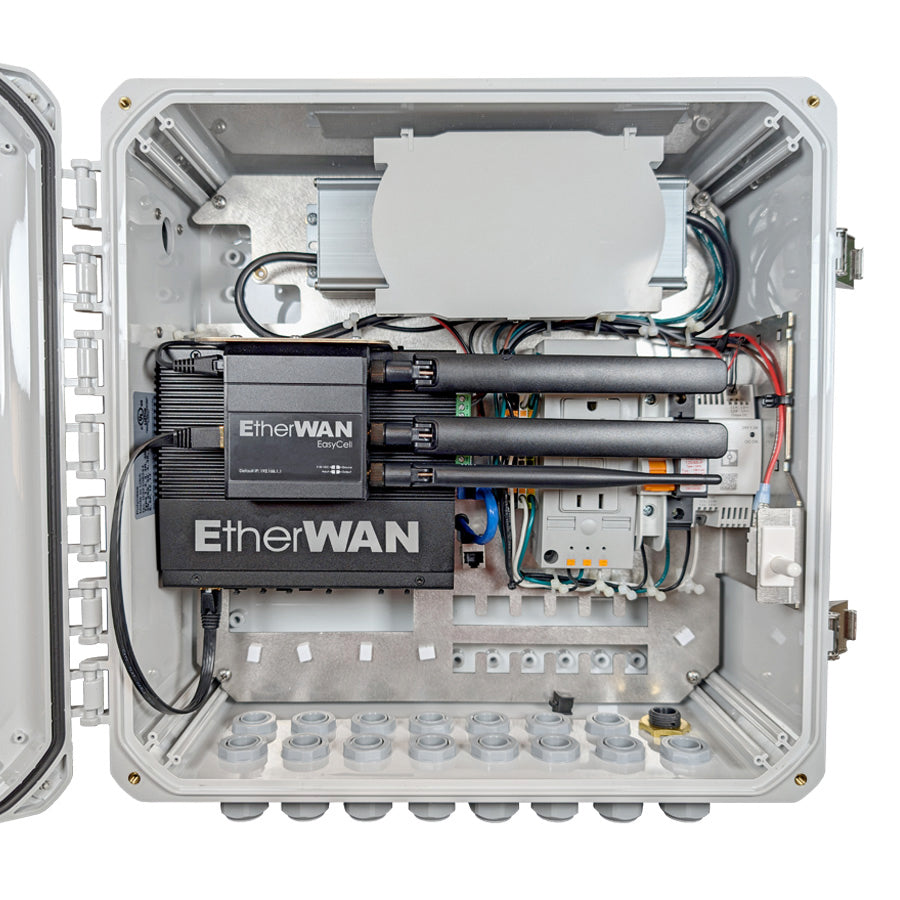

EtherWAN's EasyPoE® Pro Series is an integrated outdoor enclosure solution that combines a managed PoE switch, fiber splice tray, power supply, and optional accessories such as a 4G LTE router and RJ45 patch panel, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to (12) gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and up to (4) SFP uplink ports, the EasyPoE® Pro series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

  • 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ managed switch
  • Polycarbonate enclosure system
  • NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
  • Futureproof with up to 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • 10 Gigabit SFP options
  • Integrated splicing tray for safe fiber connection storage
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
  • Optional 4G LTE router and/or patch panels
  • PoE watchdog monitors status of connected PoE devices
  • Built-in power supply and surge protection
  • Wide operating temperature -40 to 75°C (-40 to 167°F)
  • Fanless design
  • Weather-resistant, anti-corrosion, and vandal-resistant design
  • Wall/Panel (included), Pole (optional)

Polycarbonate Enclosure System

Dimensions
387.35mm x 387.35mm x 177.8mm (W x H x D)
15.25" x 15.25" x 7.25"

Weight
27 lbs. when fully populated

Mounting Options
Wall/Panel (included), Pole (optional)

Input Voltage
100-240VAC

Low stock: 1 left

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100-240VAC
ALARM RELAY: No
MOUNT TYPE: Wall/Panel (included), Pole (optional)
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 360W
REDUNDANT POWER: No
10/100/1000 PORTS: 12
10 GIG PORTS: Yes
FIBER TYPE: 1000MB SFP, 1/10G SPF+
FIBER PORTS: 4
FIBER/SFP CONNECTOR: SFP+
FIBER DISTANCE: SFP (Various distances)
ROUTING PROTOCOLS: RIP v1 & v2
