EASYPOE4B - EasyPoE Lite 4B (4-Ports 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45)

EASYPOE4B - EasyPoE Lite 4B (4-Ports 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45)

SKU:EASYPOE4B

Regular price $822.02 USD
Regular price Sale price $822.02 USD
Sale Sold out

EasyPoE Lite Series

EASYPOE4B

  • 4-Ports 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45
  • NEMA-rated indoor/outdoor design for non-ventilated & harsh environments
  • Wide operating temperature -40 to 75°C (-40 to 167°F)
  • Fanless, integrated design
  • Weather-resistant, anti-corrosion, and vandal-resistant design
  • Time/cost saving features
  • Integrated components ready out of the box
  • Wall and pole mountable (pole mounting kit option available)
  • Preinstalled bulkheads for cable connections
  • Replaceable hardened components
  • The integrated PoE switch comes with 4 or 8-port options at full 30W PoE per port
  • Outdoor-rated, IP67 power supply

EtherWAN's EasyPoE® Lite series is an integrated solution that combines a PoE switch, power supply, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with either 4 or 8 gigabit PoE ports that provide a full 30W max PoE output per port (with a power budget of 120W for 4-ports and 240W for 8-ports), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

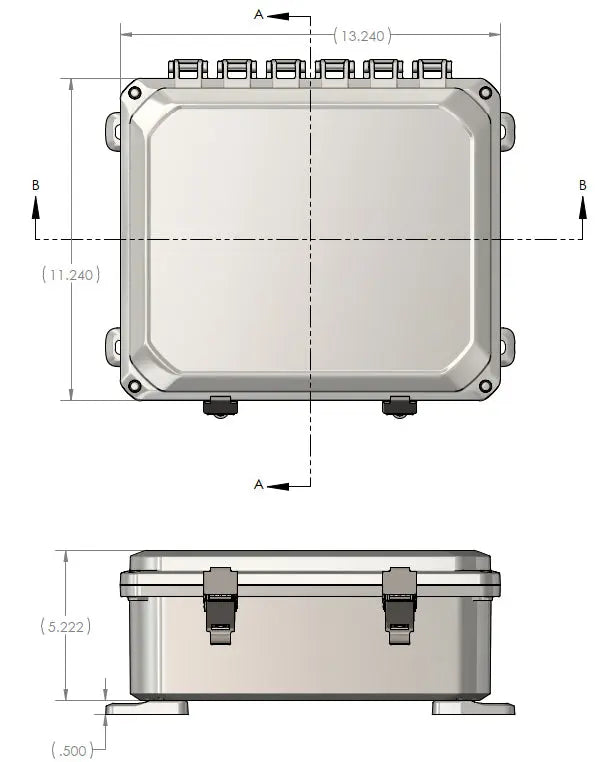

Dimensions
11.75" x 5.22" x 13.81"(W x D x H)
298mm x 127mm x 351mm (W x D x H)

Weight
8.9lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Casing Material
Polycarbonate (PC)

Input
100-277VAC

PoE Power Budget
4-Port Switch: 120W @ 75°C

Low stock: 4 left

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 70°C (-40 to 158°F)
POWER INPUT: 100-240VAC
MOUNT TYPE: Panel, Wall, Pole
POE TYPE: 802.3af (15w), 802.3at (30w)
POE POWER BUDGET: 120W
REDUNDANT POWER: No
10/100/1000 PORTS: 5
10 GIG PORTS: No
