EASYPOE4P : Outdoor Ethernet Switch Enclosure PoE Integrated Unmanaged

EASYPOE4P : Outdoor Ethernet Switch Enclosure

EASYPOE LITE SERIES: unmanaged industrial hardened gigabit ethernet PoE switch with (4) gigabit PoE ports + (1) gigabit RJ45 uplink port + plus surge suppressor. Provides 30W with 120W PoE power budget. Wall or pole mount, 100-277VAC power input.

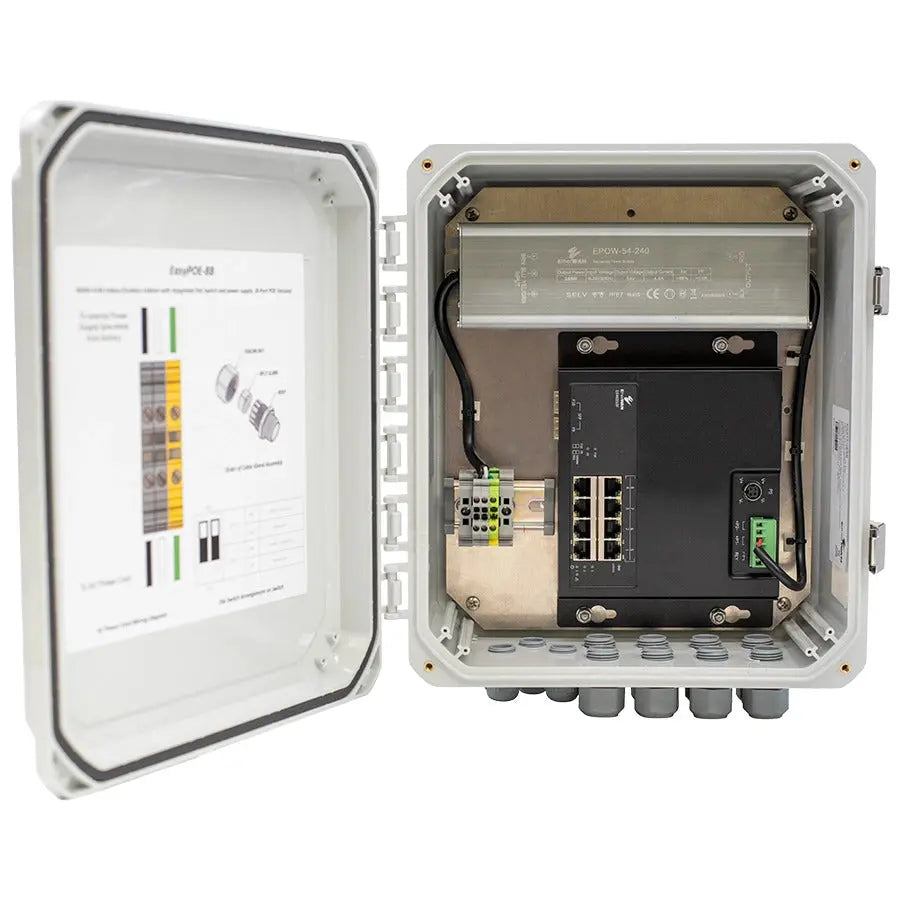

EtherWAN's EASYPOE4P outdoor ethernet switch enclosure is an integrated solution that combines an unmanaged PoE switch, power supply, and a surge suppressor, all in a single, secure, NEMA 4X rated cabinet enclosure.

Equipped with 4 gigabit PoE ports that provide a full 30W max PoE output per port, with a power budget of 120W for 4-ports, the EASYPOE4P provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

• Comes with Surge Suppressor
• 4-Ports 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 + Surge Suppressor
• NEMA-rated indoor/outdoor design for non-ventilated & harsh environments

• Hardened operating temperature -40 to 75°C (-40 to 167°F)

• Fanless, integrated design

• Weather-resistant, anti-corrosion, and vandal-resistant design

• Time/cost saving features

• Integrated components ready out of the box

• Wall and pole mountable (pole mounting kit option available)

• Preinstalled bulkheads for cable connections

• Replaceable hardened components

• The integrated PoE switch comes with 4-ports at full 30W PoE per port

• Outdoor-rated, IP67 power supply

Dimensions
11.75" x 5.22" x 13.81"(W x D x H)
298mm x 127mm x 351mm (W x D x H)

Weight
8.9lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Casing Material
Polycarbonate (PC)

Input
100-277VAC

PoE Power Budget
4-Port Switch: 120W @ 75°C
