EASYPOEBOX2C - Indoor/Outdoor Enclosure with Integrated 2-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switches

• 2-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch
• NEMA-rated indoor/outdoor design for non-ventilated & harsh environments
• Wide operating temperature -40 to 70°C (-40 to 158°F)
• Fanless design
• Weather-resistant, anti-corrosion, and vandal-resistant design
• Time/cost saving features
• Integrated splicing tray for safe fiber connection storage
• Adapter for wall and pole mounting
• Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
• Smart PoE and Power
• Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
• PoE watchdog monitors status of connected PoE devices
• Built-in power supply and surge protection with auxiliary DC power output

EtherWAN's EasyPoE® Box Series is an integrated solution that combines a managed PoE switch, splice tray, power supply, and a DIN-rail for accessories, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 4 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and 2 uplink ports, the smart camera box series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

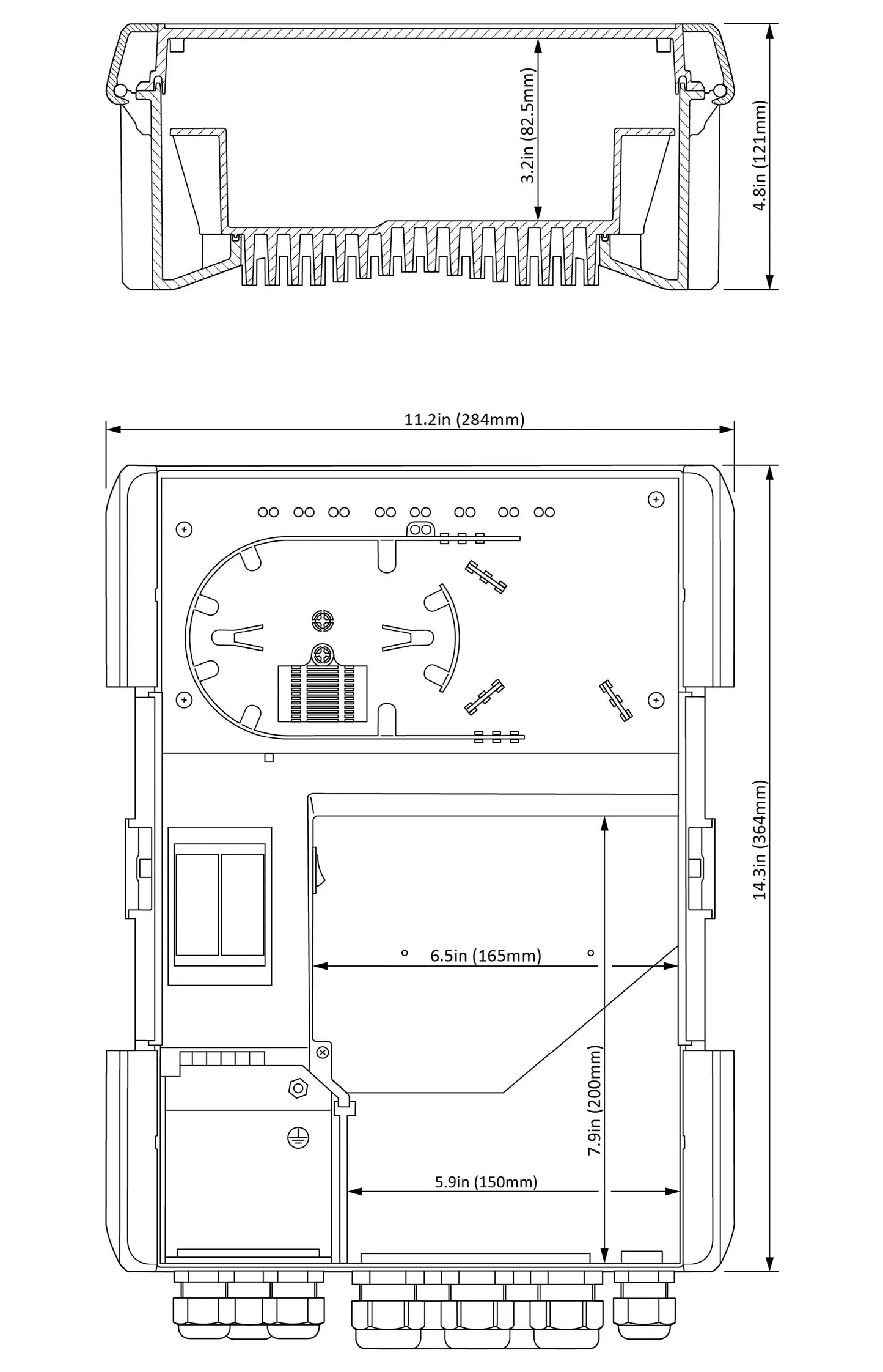

Dimensions
11.2" x 4.8" x 14.3" (W x D x H)
284mm x 121mm x 364mm (W x D x H)

Weight
9.5 lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Click here for additional information

For detailed specifications, download the datasheet here
