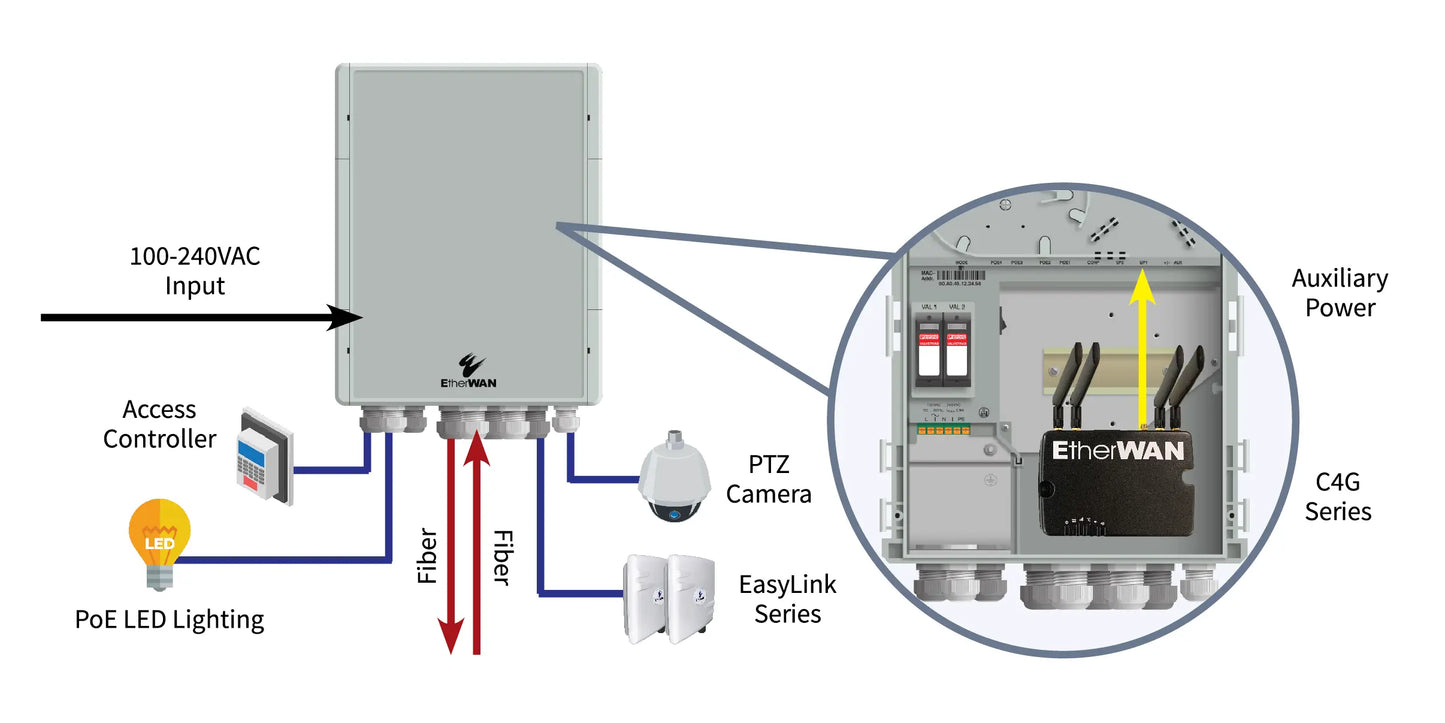

EASYPOEBOX2C Outdoor PoE Box with Managed Gigabit Switch

• Integrated managed PoE switch: Two 10/100/1000BASE-T PoE ports and two 10/100/1000BASE-T uplink ports in one enclosure.
• IEEE 802.3af/at/bt PoE: The two PoE ports deliver up to 90W each. Total PoE budget is 165W, reduced to 155W when the auxiliary power output is used.
• NEMA-rated indoor/outdoor enclosure: Built for non-ventilated installations and harsh environments.
• Hardened operation: Rated for temperatures from −40 to 70°C (−40 to 158°F), with a fanless design.
• Durable construction: Weather-resistant, corrosion-resistant, and vandal-resistant enclosure.
• Integrated power and protection: Built-in power supply, surge protection, and auxiliary DC power output.
• PoE device monitoring: PoE watchdog monitors connected devices.
• Fiber-ready layout: Integrated splice tray keeps fiber connections organized and protected.
• Flexible installation: Wall or pole mounting, with preinstalled cable bulkheads and a DIN rail for additional accessories.

Common Questions

Can both PoE ports deliver 90W at the same time?
No. Each port supports up to 90W, but the combined PoE budget is 165W—or 155W when the auxiliary power output is used.

Can the EASYPOEBOX2C be mounted outdoors?
Yes. Its NEMA 4/4X, IP65-rated enclosure is designed for indoor or outdoor use and supports wall or pole mounting.

Are the PoE switch and power supply included?
Yes. The EASYPOEBOX2C includes a managed PoE switch and power supply inside the enclosure.

Dimensions
11.2" x 4.8" x 14.3" (W x D x H)
284mm x 121mm x 364mm (W x D x H)

Weight
9.5 lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Accessories

EASYPOEBOXMCL - Mast Clamp Set for mounting 4" to 10" diameter pole

EASYPOEBOXMCS - Mast Clamp Set for mounting 2" to 5" diameter pole

EASYPOEBOXLOCK - Door locking tab

Click here for additional information

For detailed specifications, download the datasheet here
