EASYPOEBOX4C - Indoor/Outdoor Enclosure with Integrated 4-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch

EASYPOEBOX4C - Indoor/Outdoor Enclosure with Integrated 4-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch

SKU:EASYPOEBOX4C

Regular price $1,845.14 USD
Regular price Sale price $1,845.14 USD
Sale Sold out

EasyPoE Box Series

EASYPOEBOX4C

  • 4-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch
  • NEMA-rated indoor/outdoor design for non-ventilated & harsh environments
  • Wide operating temperature -40 to 70°C (-40 to 158°F)
  • Fanless design
  • Weather-resistant, anti-corrosion, and vandal-resistant design
  • Time/cost saving features
  • Integrated splicing tray for safe fiber connection storage
  • Adapter for wall and pole mounting
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
  • Smart PoE and Power
  • Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • PoE watchdog monitors status of connected PoE devices
  • Built-in power supply and surge protection with auxiliary DC power output

EtherWAN's EasyPoE® Box Series is an integrated solution that combines a managed PoE switch, splice tray, power supply, and a DIN-rail for accessories, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 4 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and 2 uplink ports, the smart camera box series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

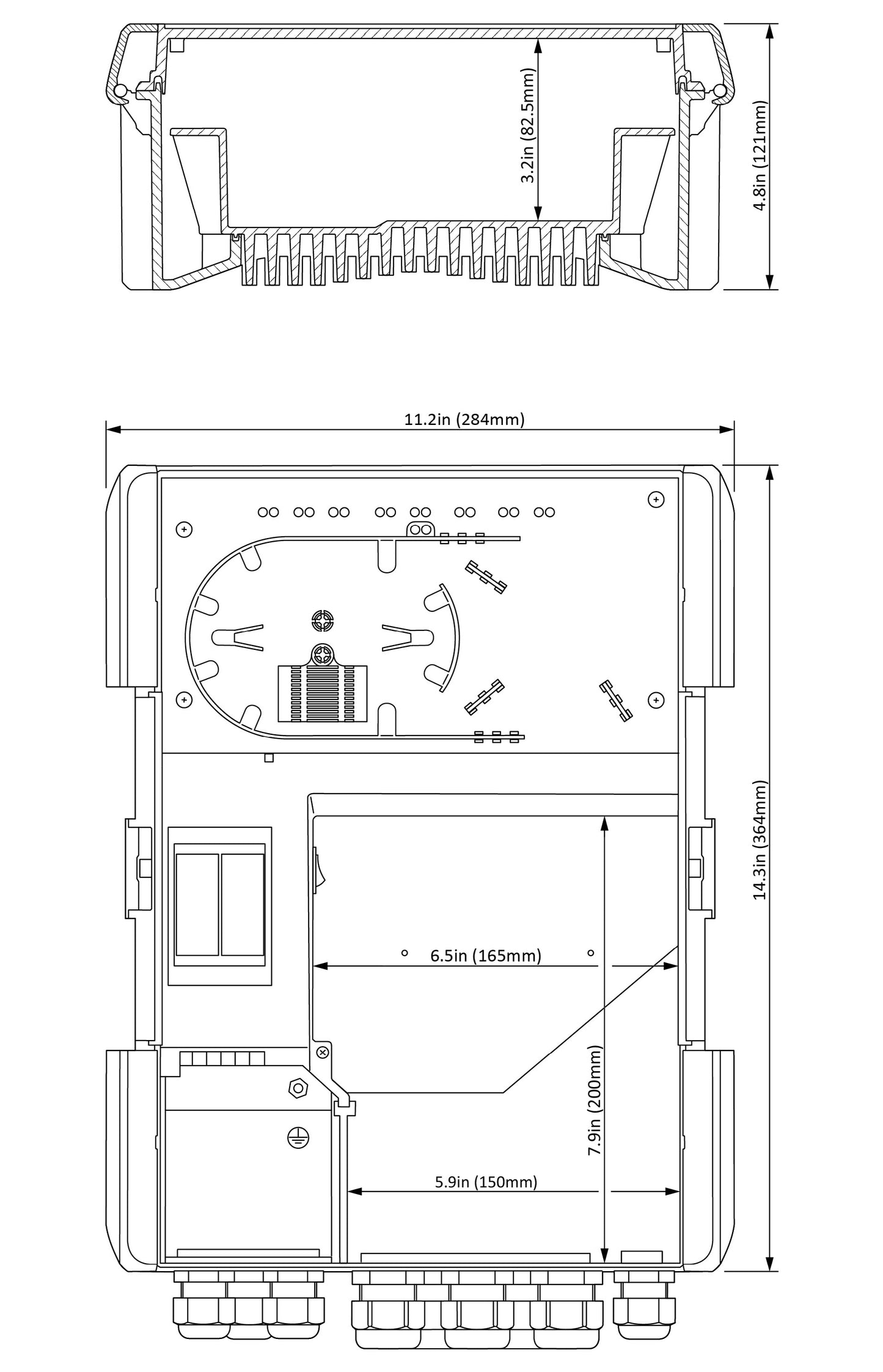

Dimensions
11.2" x 4.8" x 14.3" (W x D x H)
284mm x 121mm x 364mm (W x D x H)

Weight
9.5 lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

20 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 70°C (-40 to 158°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100-240VAC
ALARM RELAY: No
MOUNT TYPE: Panel, Wall, Pole
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 165W
REDUNDANT POWER: No
10/100/1000 PORTS: 6
10 GIG PORTS: No
FIBER PORTS: 0
INDUSTRY STANDARDS: UL 61010
ROUTING PROTOCOLS: RIP v1 & v2
