EASYPOEBOX4C Outdoor PoE Box with Managed Gigabit Switch

EASYPOEBOX4C Outdoor PoE Box with Managed Gigabit Switch

EASYPOEBOX4C

$1,957.51 USD
$1,957.51 USD
Sale Sold out
Shipping calculated at checkout.

EASYPOEBOX4C Outdoor Ethernet Switch Enclosure

Managed gigabit PoE switch with four PoE ports and two copper uplinks. Ports 1–3 support up to 90W, port 4 supports up to 30W. Total PoE budget: 165W.

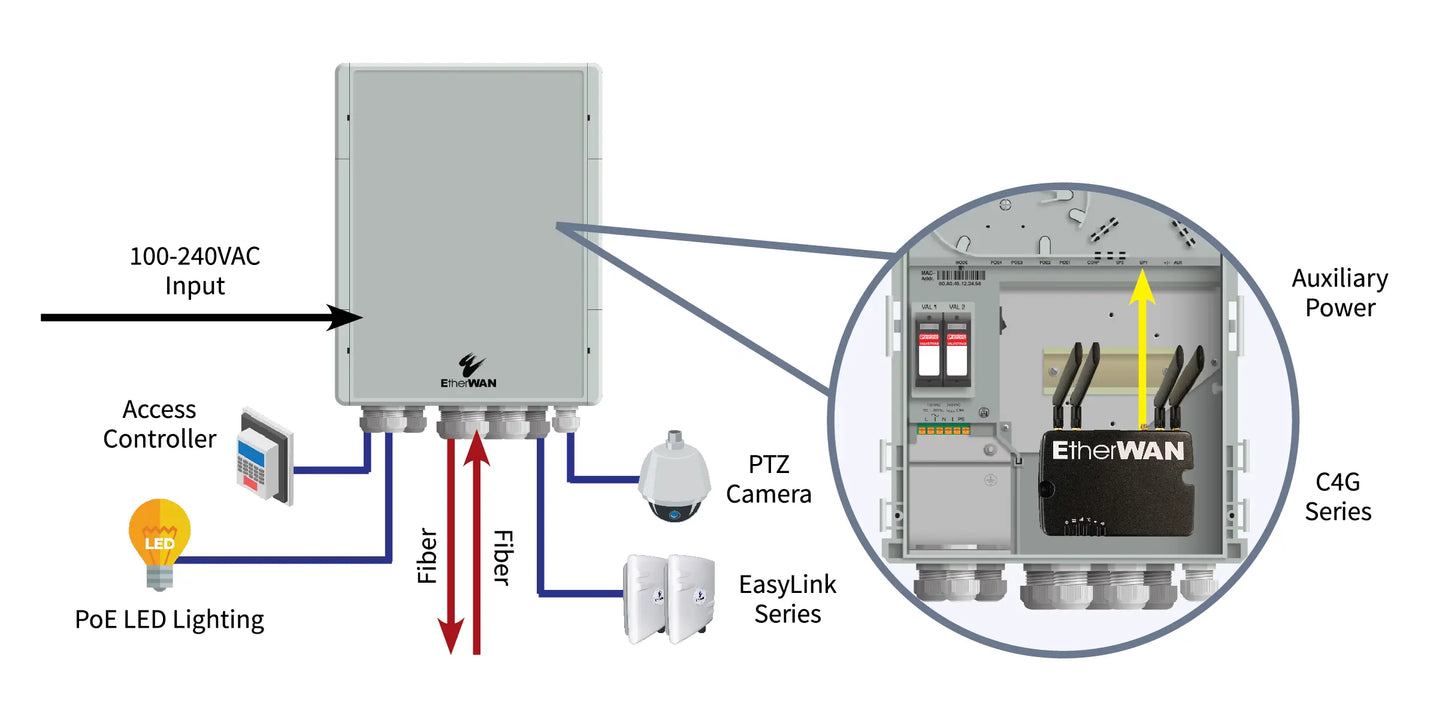

EtherWAN EASYPOEBOX4C is a NEMA-rated outdoor PoE box that combines a managed gigabit PoE switch, power supply, fiber splice tray, and DIN rail in one secure enclosure. It has four gigabit PoE ports and two gigabit uplink ports for outdoor surveillance, lighting, and network installations.

  • Integrated managed PoE switch: Four 10/100/1000BASE-T PoE ports and two 10/100/1000BASE-T uplink ports in one enclosure.
  • IEEE 802.3af/at/bt PoE: Ports 1–3 deliver up to 90W each, port 4 delivers up to 30W. Total PoE budget is 165W, reduced to 155W when the auxiliary power output is used.
  • NEMA-rated indoor/outdoor enclosure: Built for non-ventilated installations and harsh environments.
  • Hardened operation: Rated for temperatures from −40 to 70°C (−40 to 158°F), with a fanless design.
  • Durable construction: Weather-resistant, corrosion-resistant, and vandal-resistant enclosure.
  • Integrated power and protection: Built-in power supply, surge protection, and auxiliary DC power output.
  • PoE device monitoring: PoE watchdog monitors connected devices.
  • Fiber-ready layout: Integrated splice tray keeps fiber connections organized and protected.
  • Flexible installation: Wall or pole mounting, with preinstalled cable bulkheads and a DIN rail for additional accessories.

Applications

  • Outdoor IP camera and surveillance installations
  • Networked LED lighting
  • Other outdoor devices needing a managed PoE switch and protected connections

Common Questions

Can all four PoE ports deliver 90W at the same time?
No. Ports 1–3 support up to 90W each, while port 4 supports up to 30W. The total PoE budget is 165W, or 155W when the auxiliary power output is used.

Can the EASYPOEBOX4C be mounted outdoors?
Yes. Its NEMA 4/4X, IP65-rated enclosure is designed for indoor or outdoor use and supports wall or pole mounting.

Are the PoE switch and power supply included?
Yes. The EASYPOEBOX4C integrates a managed PoE switch and power supply inside the enclosure.

Dimensions
11.2" x 4.8" x 14.3" (W x D x H)
284mm x 121mm x 364mm (W x D x H)

Weight
9.5 lbs (4.3Kg)

Installation Type
Wall or Pole Mounting

Accessories

EASYPOEBOXMCL - Mast Clamp Set for mounting 4" to 10" diameter pole

EASYPOEBOXMCS - Mast Clamp Set for mounting 2" to 5" diameter pole

EASYPOEBOXLOCK - Door locking tab

Outdoor Ethernet Switch Enclosure

32 in stock

View full details

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 70°C (-40 to 158°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100-240VAC
ALARM RELAY: No
MOUNT TYPE: Panel, Wall, Pole
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 165W
REDUNDANT POWER: No
10/100/1000 PORTS: 6
10 GIG PORTS: No
FIBER PORTS: 0
INDUSTRY STANDARDS: UL 61010
ROUTING PROTOCOLS: RIP v1 & v2
