EASYRESTORE - Full Kit - Fiber Shear for Traffic Cabinets - Armored Cabling - EasyRestore Device + 12 LC Connectors for Switches + Connector & Bulkhead for Infrastructure Side

EASYRESTORE

EtherWAN’s EasyRestore for Fiber is a cabinet termination device for traffic cabinets and roadside nodes. EasyRestore allows fiber optic cabling to be control sheared at the base of the cabinet, preventing stress on the cable in the ground and at the electrical device connection.

NEW VERSION — The fiber optic cables on the EasyRestore, for both the device side and the infrastructure side, have been changed to an armored cable type. Armored fiber optic cables provide significantly better resistance to crushing, extreme weather conditions, and rodents.

• Infrastructure fiber cabling remains intact after an accident knocks down a cabinet
• Enables device restoration within minutes of equipment reset
• Eliminates patch cords and additional failure points, reducing maintenance costs
• Maintains material integrity at a wide operating temperature range from -40°F to 180°F
• IP66 weather resistance
• Outdoor rated cabling

Casing Material
Delrin

IP Rating
IP66

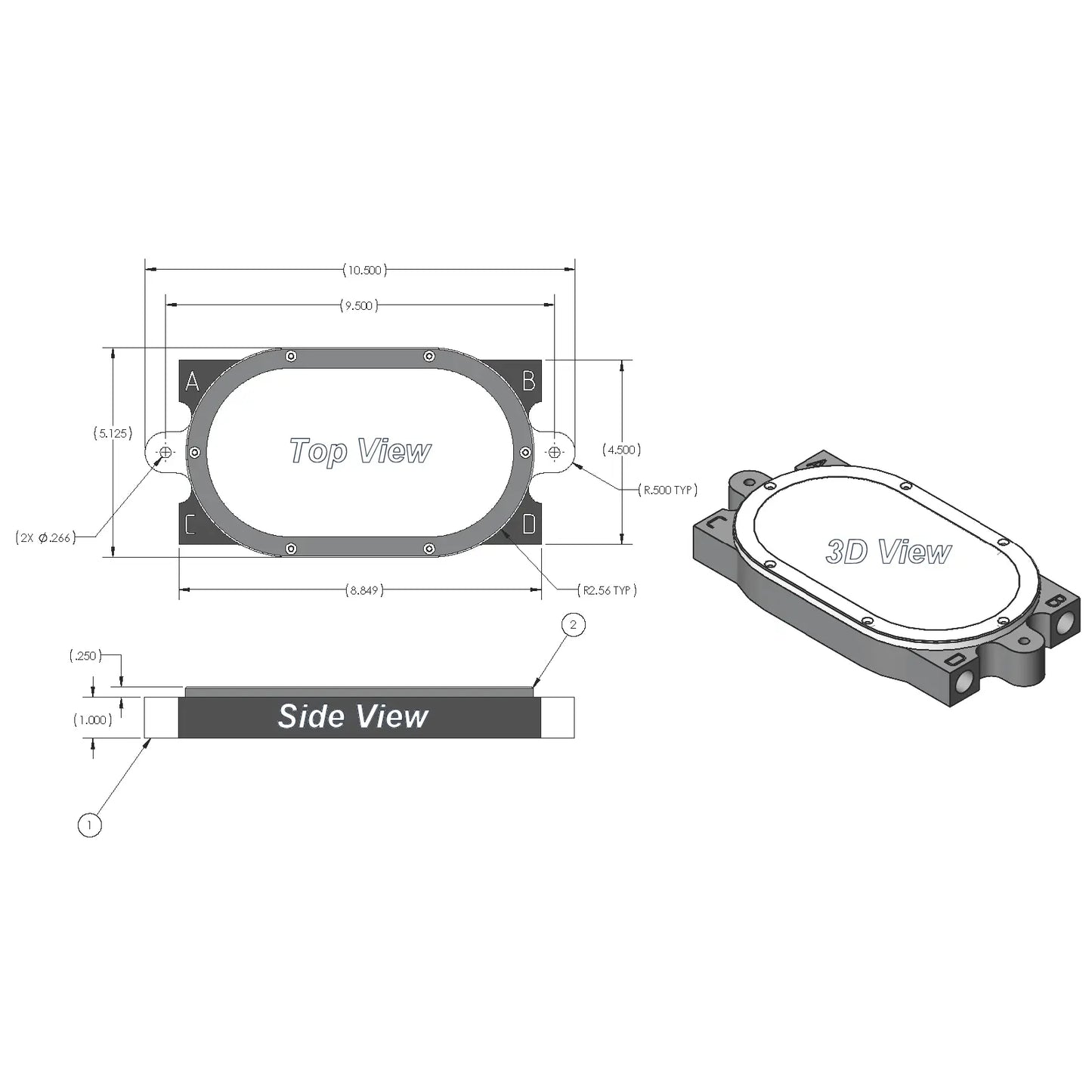

Dimensions
10.5” x 5” x 1.2” (W x D x H)

Weight
2 lbs (0.91kg)
