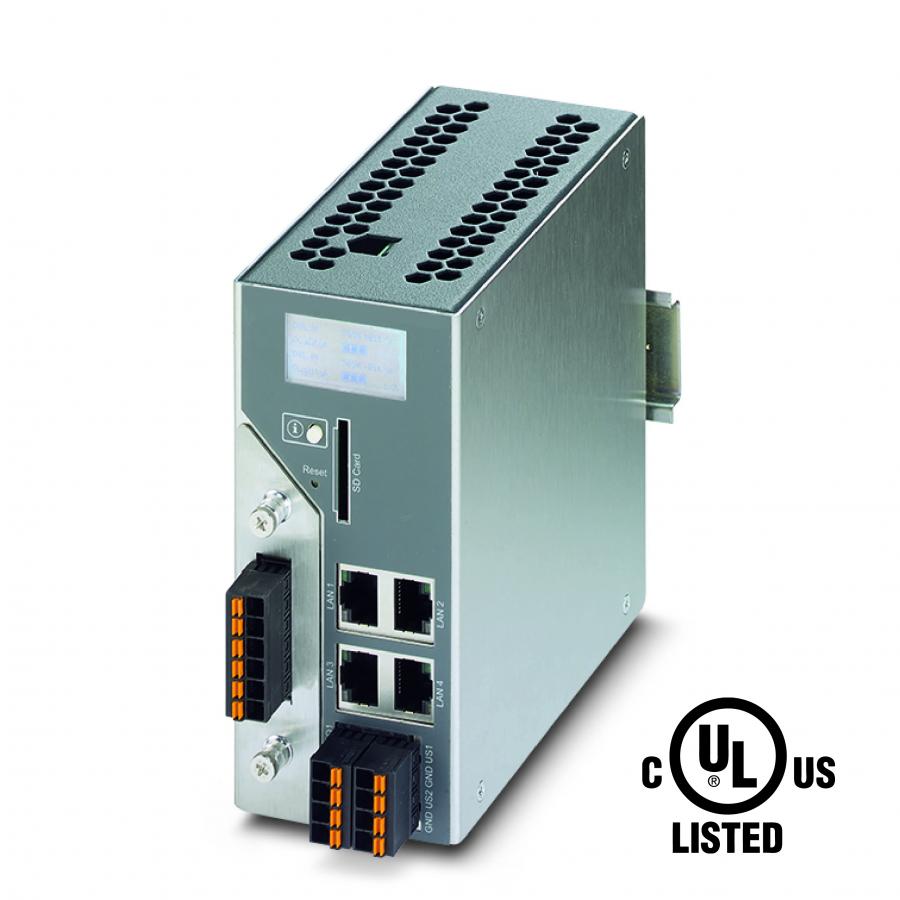

ED20KEXT4PSW - Industrial Ethernet Extender Managed 4-port 10/100BASE-TX with (2) SHDSL ports

ED20EXT4PSW

EtherWAN's ED20KEXT4PSW is a managed ethernet extender with point-to-point connections, line and ring structures, data rates of up to 30Mbps, distances of up to 12.4 miles (20km) on in-house copper cables, replaceable surge protection, 2 SHDSL ports, 4-port switch, and diagnostics via display and Ethernet.

• Distances up to 12.4 miles (20km)
• Up to 15.3Mbps in 2-wire operation
• Up to 30Mbps in 4-wire operation
• Robust modulation method (SHDSL)
• Automatic SHDSL data rate detection
• Network transparent (no IP configuration required)
• Automatic detection of network cable type (auto MDI(X))
• Automatic network data rate detection (10/100Mbps)
• Easy startup, plug and play
• Two digital outputs for alerting external controllers
• Remote diagnostics via IP and automatic event messages via SNMP

Casing Material
Aluminum/Steel Sheet DC01

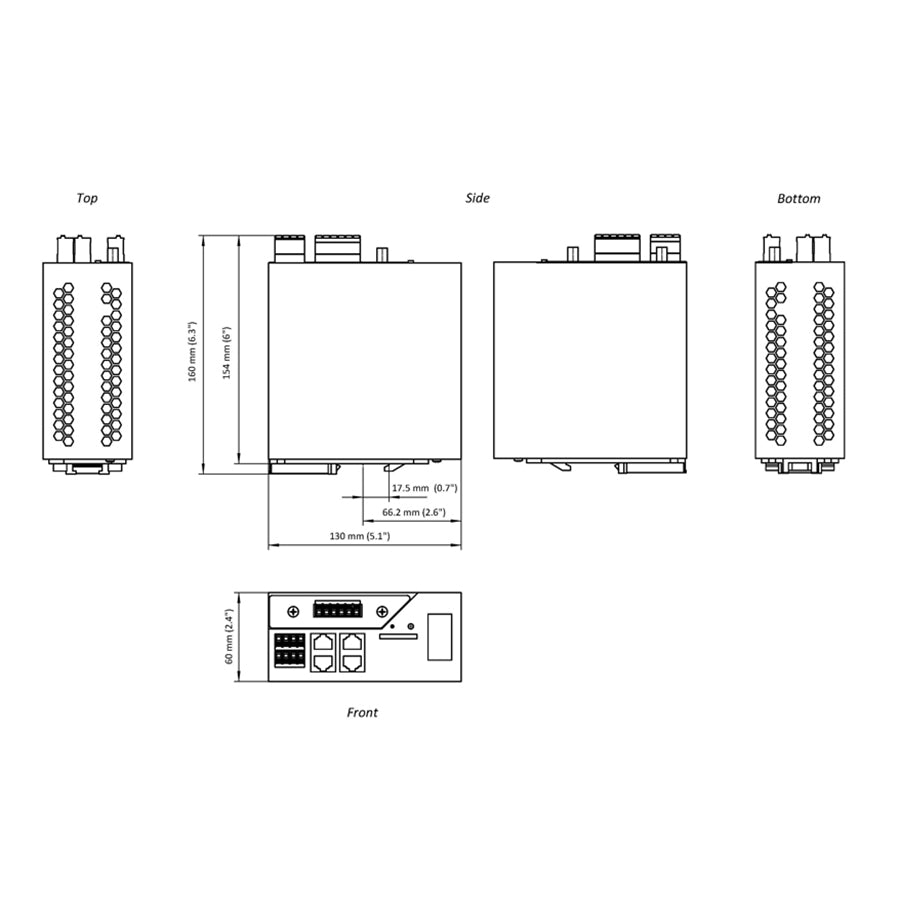

Dimensions
60mm x 130mm x 160mm (W x D x H)
2.4" x 5.1" x 6.3"

Weight
0.786kg (1.7lbs)

Installation Type
DIN-Rail Mounting
