ED20KEXT-2P : Industrial Ethernet Extender 2702409 PHOENIX CONTACT

ED20KEXT-2P industrial ethernet extender is an unmanaged SHDSL ethernet extender for point-to-point connections, line and ring structures, data rates up to 30Mbps, distances of up to 20km on in-house copper cables, diagnostics via USB and LEDs, 2 SHDSL ports, 1 LAN port.

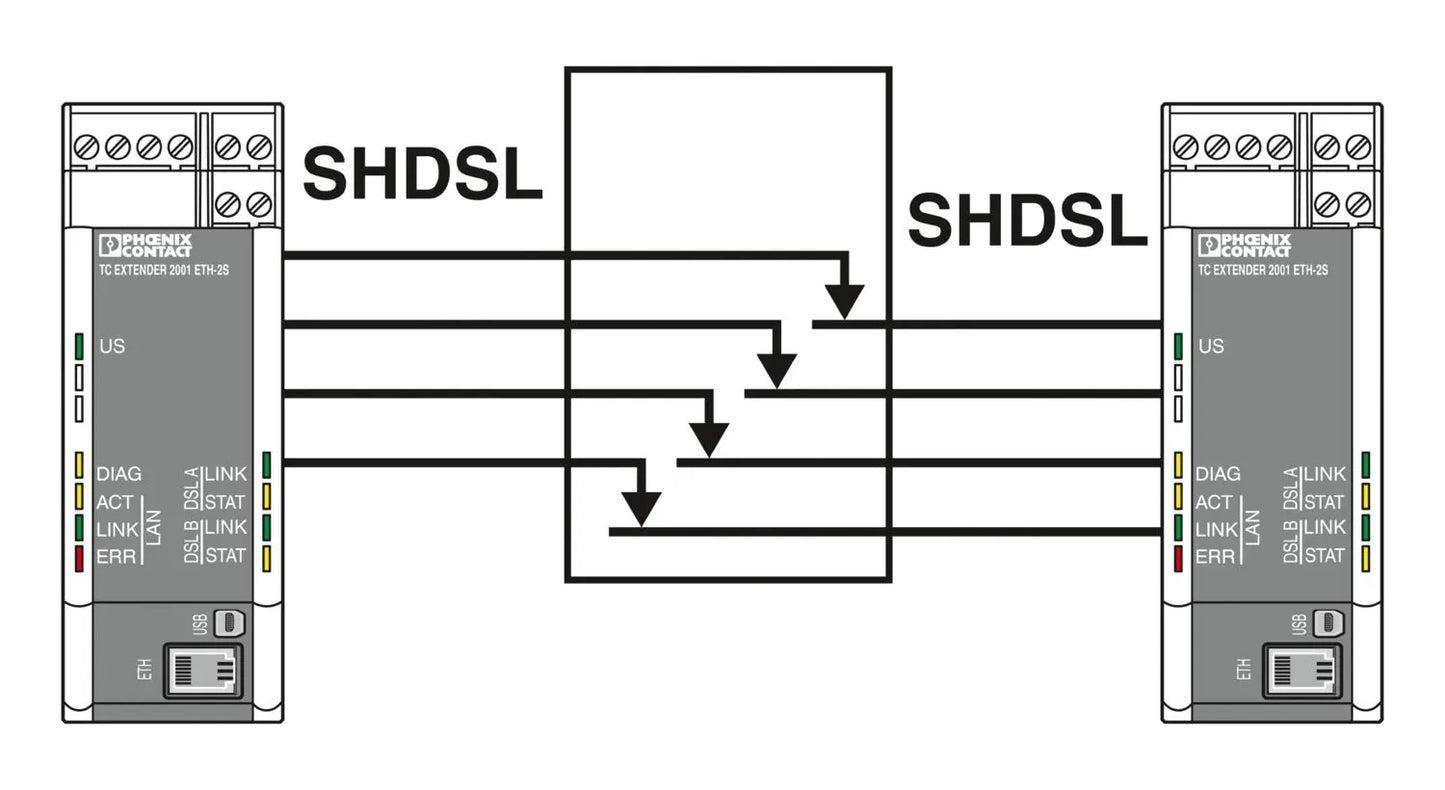

The ED20KEXT-2P industrial ethernet extender makes broadband ethernet applications on existing cables possible. This industrial ethernet extender can be used for in-house 2 and 4-wire cables, but not in the public telephone network. Point-to-point, line or ring structures can be established, with ranges of up to 12.4 miles (20km).

Features

• Distances up to 12.4 miles (20km)
• Up to 15.3 Mbps in 2-wire operation
• Up to 30 Mbps in 4-wire operation
• Robust modulation method (SHDSL)
• Automatic SHDSL data rate detection
• Network transparent (no IP configuration required)
• Automatic detection of network cable type (auto MDI(X)
• Automatic network data rate detection (10/100 Mbps)
• Easy startup, plug and play
• Future proof (IPv4 and IPv6-compatible)
• 2 digital outputs for alerting external controllers
• Transparent transmission of all standard Ethernet protocols, including EtherNet/IP™, Modbus/TCP, PROFINET, PROFIsafe, EtherCAT®, KNX, BACnet/IP
• Operating temperature range -20° to 60°C (-4° to 140°F)
• DIN-Rail mount

Width: 35mm / 1.38"
Height: 99mm / 3.90"
Depth: 114.5mm / 4.51"
