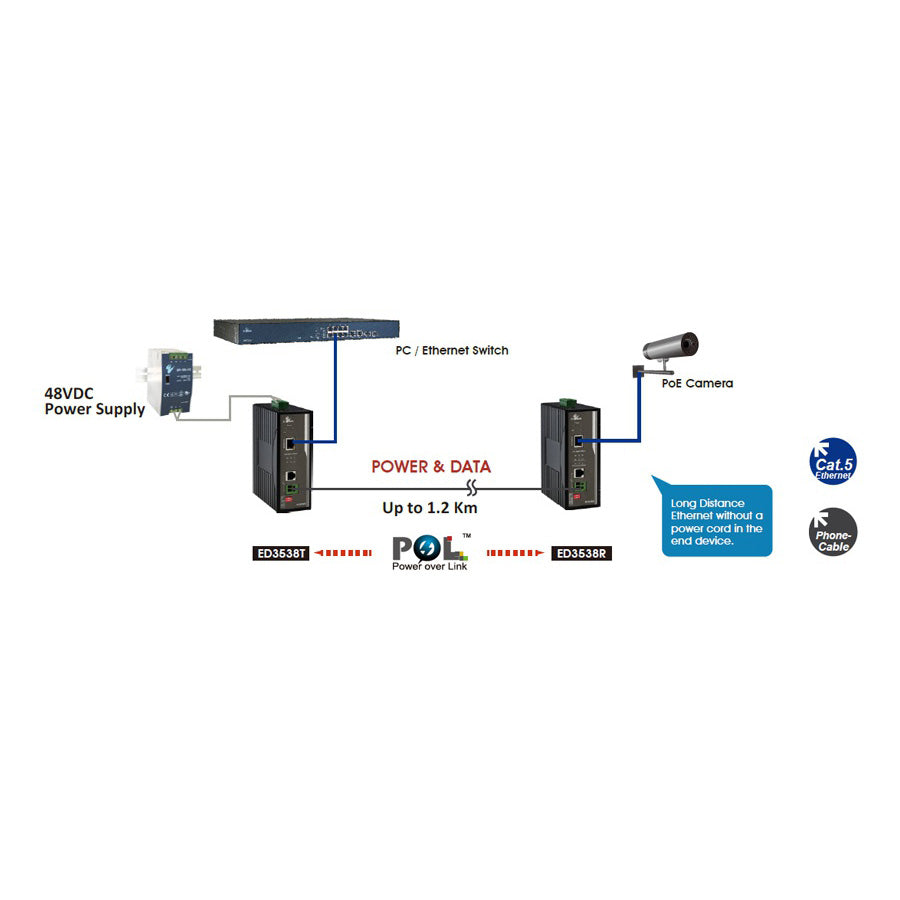

The ED3538 Hardened Ethernet Extender utilizes EtherWAN’s exclusive Power over Link (PoL) technology to deliver both PoE power and Ethernet communications over a single legacy twisted pair cable, such as a telephone line. The ED3538 PoL solution is comprised of one transmitter and one receiver working together to provide reliable communications and power to remote PoE Powered Devices such as IP cameras, wireless access points, emergency intercoms, or VoIP phones.

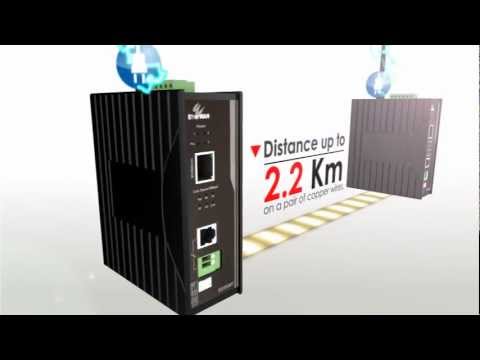

With just the transmitter connected to power, the ED3538 provides a maximum of 30 watts of power and a bandwidth of 100Mbps to the ED3538 receiver, at distances up to 300 meters. Under this setup, transmission over longer distances can be achieved with lower data and power throughput — up to 1200 meters at a data rate of 20Mbps and 5 watts of power. However, for applications that require even longer distances, the ED3538 can be connected to power at both the transmitter and the receiver unit, increasing the transmission distance to a remarkable 2200 meters, with a data rate of 1Mbps and a full 30 watts. The current data transmission rate and power sourcing equipment output is displayed by LED indicators.
The ED3538 is highly resistant to electromagnetic interference, shock, and vibration, ensuring connection reliability even in harsh environments.
Comes with 2 Units - ED3538T is the power transmitter of PoL, and ED3538R is the power receiver of PoL
Power over Link up to 1.2 km (3936 ft) by copper pair cable
Up to 300 meters transmission distance with 100Mbps data rate
Six transmission rate LEDs and three PoE/PSE output power LEDs on the front panel
Wide operating temperature range -40 to 75°C (-40 to 167°F)
Casing Aluminum case
IP Rating IP30
Dimensions 1.97" x 4.33" x 5.31" (W x D x H) 50mm x 110mm x 135mm
