ED3575-622 - Hardened Managed Ethernet Switch (6-Port 10/100BASE-TX +2-Port Gigabit combo SFP with 2-port Copper Pair Extender)

ED3575-622

EtherWAN's ED3575 is a hardened managed Ethernet switch and extender combo. Equipped with Ethernet, SFP, and copper extender ports, the ED3575 bridges the gap between modern and legacy infrastructures, providing the flexibility and versatility for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

The ED3575 Managed Ethernet Extender enables the extension of Ethernet connectivity over existing copper pair allowing legacy infrastructure to be leveraged for IP networks and extending the Ethernet distance limitations of 100 meters. With 6 Fast Ethernet, 2 Gigabit Ethernet ports and 2 copper extender ports, the ED3575 provides excellent network extension flexibility.

Upgrading an existing legacy control or surveillance system to a new IP-based Ethernet Extenders system is a complicated task, especially when existing cable infrastructure is old copper or twisted pair cable. EtherWAN's ED3575 provides Ethernet connection and extension over these existing copper wire cables, minimizing the expense of pulling new cable infrastructure.

The ED3575 is built with hardened specifications, providing wide temperature operation range from -40°C to 75°C to overcome severe outdoor environments. The ED3575's management provides remote login feature to execute configuration changing, link status check and device maintenance. Cooperating with managed switches, the ED3575 performs seamless OAM (Operation, Administration and Maintenance) functions. Incorporating VDSL2 similar technology, the ED3575's RJ11 and terminal block extender ports provide long distance transmission with 100Mbps rate within 300 meters, or 1Mbps up to 2200 meters.

• Dual extender ports for cascade appliances
• Dual gigabit SFP combo ports
• Comprehensive Layer 2 features
• Managed platform with dual functions as a switch and an extender
• Dual SFP ports for fiber connectivity
• Dual VDSL2 ports extend data up to 2.2km using legacy copper pair wire
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Port control
• 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
• Configure and monitor with eVue™ and eLite™

Casing Material
Aluminum

IP Rating
IP30

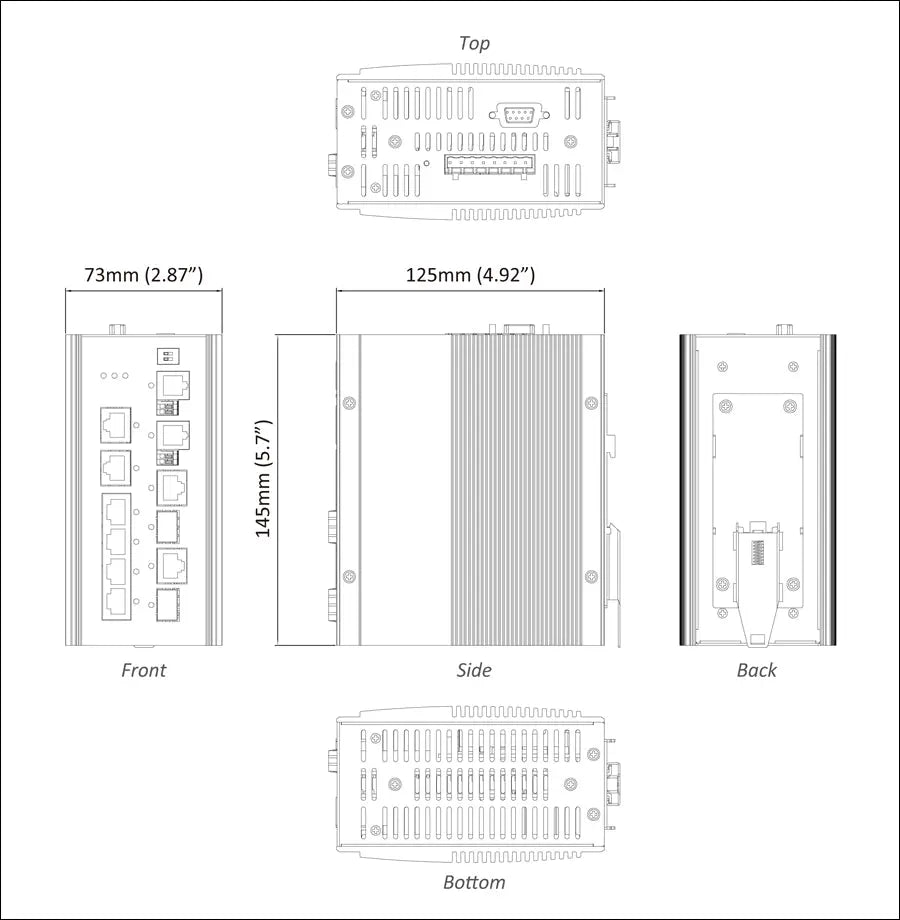

Dimensions
73mm x 125mm x 145mm (W x D x H)
2.87" x 4.92" x 5.7"

Weight
1.25Kg (2.76lbs)

Installation Type
DIN-rail (Top Hat Type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here
