EG97023-2VCR - Hardened Managed Layer-3 Gigabit Ethernet Switch 20-port (8-port GE SFP & 12-port 1G/10G SFP+)

EtherWAN’s EG97023 is a hardened layer 3 core/distribution switch, designed to support high bandwidth routing in harsh environments. Equipped with 12 ports capable of up to 10-gigabit speed each and 8 additional gigabit ports, along with a full capacity switching bandwidth, the EG97023 provides the optimal solution for connecting multiple networks. In addition to layer 3 benefits such as improved fault isolation, simplified security management, network traffic segregation, lower network latency, and simplified troubleshooting, the EG97023 is hardened and fan-less, designed to last and operate through the harshest environments. Backed by a limited lifetime warranty, the EG97023 provides flexibility, ultra-fast speeds, and reliability to support networks in urban infrastructure, transportation, security and other areas where connectivity is crucial.

• Multiple ports with ultra-fast 10-gigabit speeds running at full capacity
• (12) dual-rate 10-gigabit SFP+ ports for fiber connections into the core/hub
• (8) dual-rate gigabit SFP ports for fiber connections to the nodes/edge
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fan-less operation
• Thermal shock and electrical noise resistance
• Optimized routing at hardware level
• Improved fault isolation
• Layer 3 capability connects networks together
• NEMA TS2 rated
• UL certified for safety
• TAA/NDAA compliant for government projects
• Port Security, Authentication, and Access Control
• Storm Detection, IP ACL, and System Logging
• Configure and monitor with eVue™ Network Management Software

Casing Material
Metal

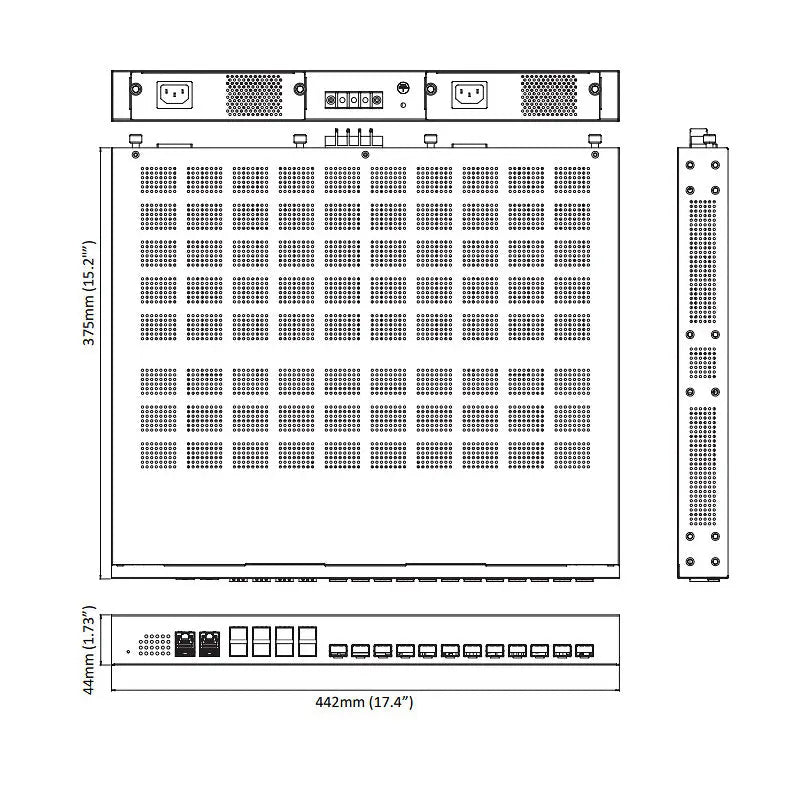

Dimensions
442mm x 325mm x 44mm (W x D x H)
17.4" x 12.8" x 1.73"

Weight
6.2kg (13.7lbs)

Installation Type
Rack mounting

Click here for additional information

For detailed specifications, download the datasheet here
