EL100C-20 - 20Km Media Converter - 10/100BASE-TX to 100BASE-FX Single Mode (SC) - 1310nm

EL100C-20 - 20Km Media Converter - 10/100BASE-TX to 100BASE-FX Single Mode (SC) - 1310nm

SKU:EL100C-20

Regular price $156.13 USD
Regular price Sale price $156.13 USD
Sale Sold out

EL100C-20

The EL100 Series provide media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. User can choose between store-and-forward mode and converter mode through DIP switch selection. The EL100C-20 is designed for SC fiber connection applications. The commercial grade media converter supports EtherWAN EMC1600 chassis system for easy group installation. The EL100 is the ideal media converter for enterprise environments.

  • Supports single-mode SC fiber ports
  • Mount up to 16 media converters with power redundancy with EMC 1600 Chassis system
  • EL100 models supports either 10 or 100 Mbit/s
  • Link Fault Pass Through helps improves monitoring by passing through information on disruptions

Casing Material
Aluminum

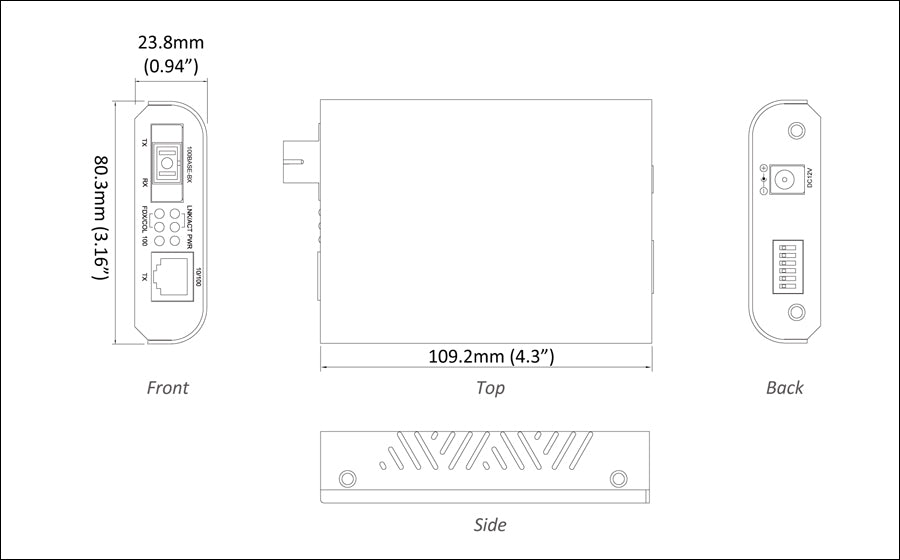

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
Wall mounting, or in EMC1600 Chassis System

Input
12VDC

Power Consumption
1.92W max. 0.16A@12VDC

Click here for additional information

For detailed specifications, download the datasheet here

102 in stock

View full details

Collapsible content

More Information

POE TYPE: None
POWER INPUT: 12VDC
ALARM RELAY: No
MOUNT TYPE: EMC1600 Chassis, Wall, Desktop
REDUNDANT POWER: No
PRODUCT CLASS: Commercial
OPERATING TEMPERATURE RANGE: 0 to 45°C (32 to 113°F)
MANAGEMENT TYPE: Unmanaged
FIBER TYPE: 100FX
FIBER PORTS: 1
FIBER DISTANCE: 20Km
FIBER/SFP CONNECTOR: SC
10/100 PORTS: 1
INDUSTRY STANDARDS: UL 60950
