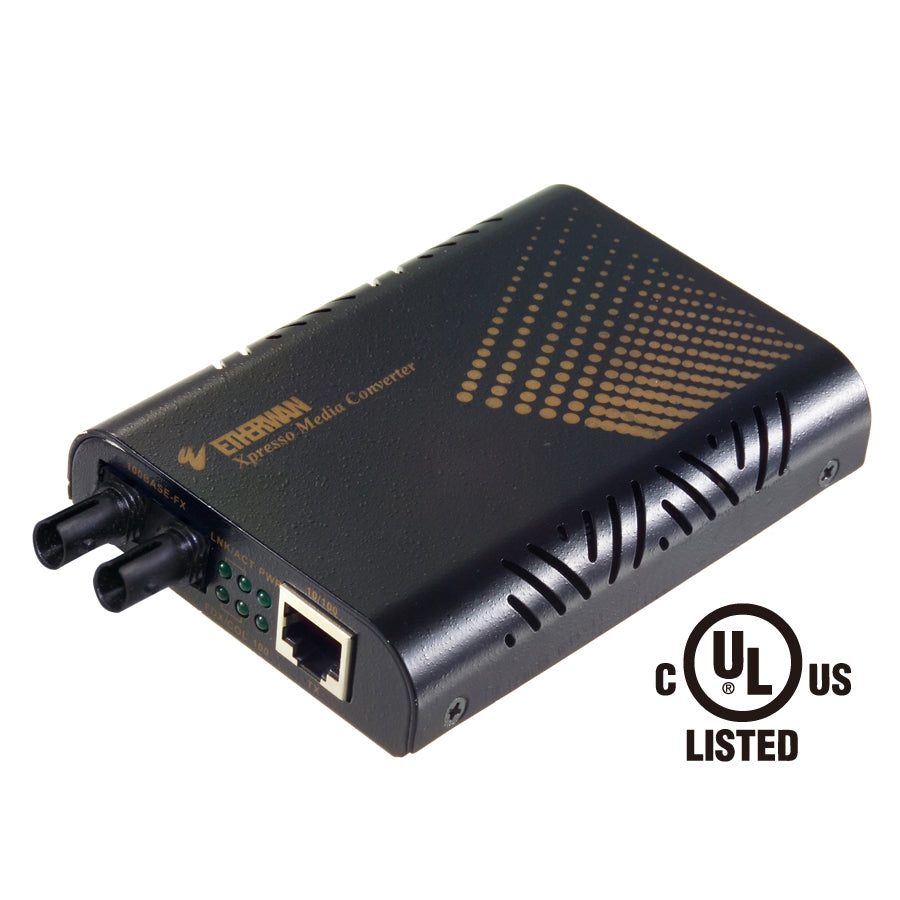

EL100T-20 - 20Km Media Converter - 10/100BASE-TX to 100BASE-FX Single Mode (ST) - 1310nm

EL100T-20

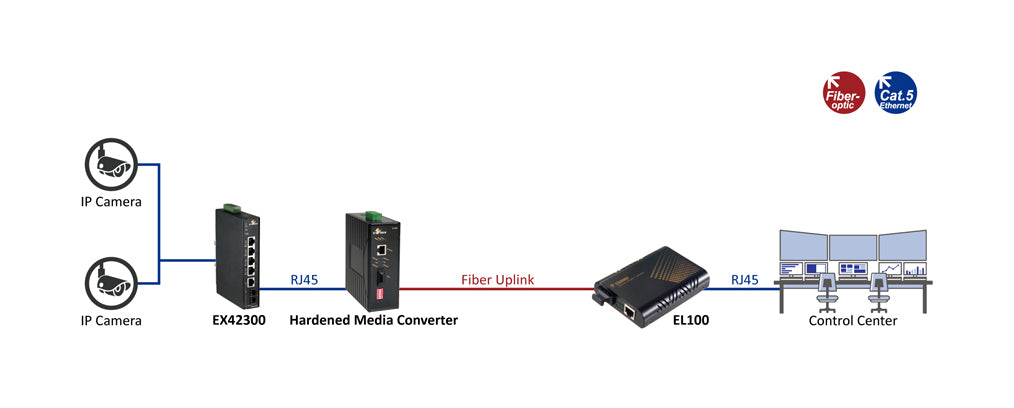

The EL100 Series provide media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. User can choose between store-and-forward mode and converter mode through DIP switch selection. The EL100T is designed for ST fiber connection applications. The commercial grade media converter supports EtherWAN EMC1600 chassis system for easy group installation. The EL100 is the ideal media converter for enterprise environments.

• Supports single-mode ST fiber ports
• Mount up to 16 media converters with power redundancy with EMC 1600 Chassis system
• EL100 models supports either 10 or 100 Mbit/s
• Link Fault Pass Through helps improves monitoring by passing through information on disruptions

Casing Material
Aluminum

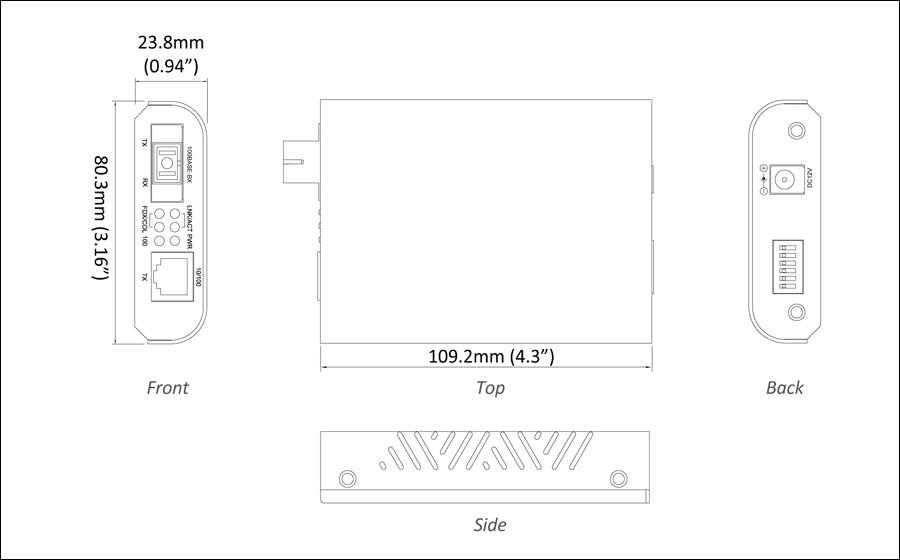

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
EMC1600 Chassis, Wall, Desktop

Input
12VDC

Power Consumption
1.92W max. 0.16A@12VDC
