EL2211-31U - 550m Media Converter - 10/100/1000BASE-TX to 1000BASE-SX (SC)

10/100/1000BASE-TX to 1000BASE-SX (SC) - 550m (850nm)

The EL2211 Series provides media conversion between 10/100/1000BASE-T(X) and 1000BASE-SX/LX/BX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. With Gigabit transmission rate, the EL2211 supports Jumbo Frame up to 9K bytes. The EL2211 is the ideal media converter for enterprise environments.

• Link Fault Pass Through (LFPT)
• Wall mounting or EtherWAN's EMC1600 chassis for easy group installation with power redundancy
• Auto 10/100/1000BASE-TX and 1000BASE-SX (SC) Ethernet transmission conversion
• 1000Mbps Full duplex, 10/100MBps Full/Half duplex
• Supports wall mounting or EtherWAN's EMC1600 chassis system for easy group installation with power redundancy
• LFPT function lets network operators be aware of network connection status
• If a link fails, the LFPT function will notify the connected device and disable the connection

Casing Material
Aluminum

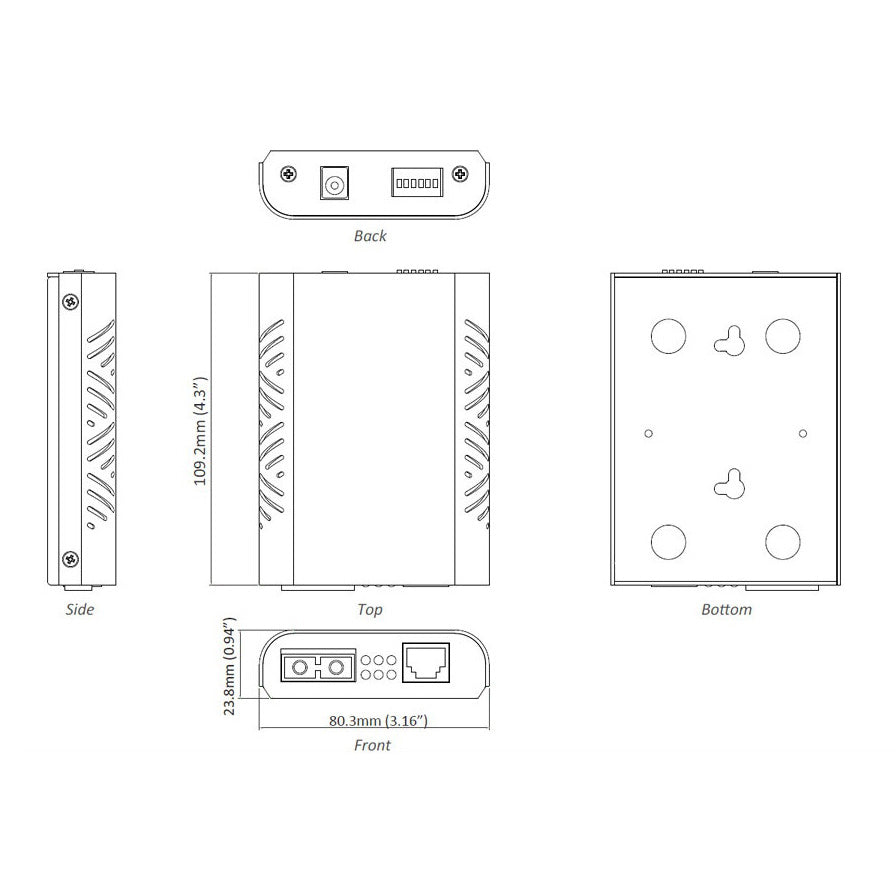

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
EMC1600 Chassis, Wall, Desktop
