EL2242-BT - Hardened PoE Media Converter (10/100/1000BASE-T PoE to 100/1000M SFP)

EL2242-BT - Hardened PoE Media Converter (10/100/1000BASE-T PoE to 100/1000M SFP)

SKU:EL2242-BT

Regular price $425.80 USD
Regular price Sale price $425.80 USD
Sale Sold out

EL2242-BT

EtherWAN’s EL2242-BT is a compact hardened DIN-rail mounted PoE Media Converter. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output and an 100/1000 SFP Slot, the EL2242-BT provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.

  • Provides PoE power up to 90W
  • Backward compatible with 60W/30W/15W PoE protocols
  • Link Fault Pass Through (LFPT)
  • Dual Rate SFP Slot
  • Supports IEEE 802.3bt PoE/PSE standard, up to 90W
  • Backward compatible with IEEE 802.3at and 802.3af
  • Fanless operation with wide operating temperature range of -40°C to 75°C
  • High impact, thermal shock, and electrical noise resistance
  • SFP port supports 100/1000BASE-X for fiber connectivity
  • Simple, DIP switch controlled for speed setting

Casing Material
Aluminum

IP Rating
IP30

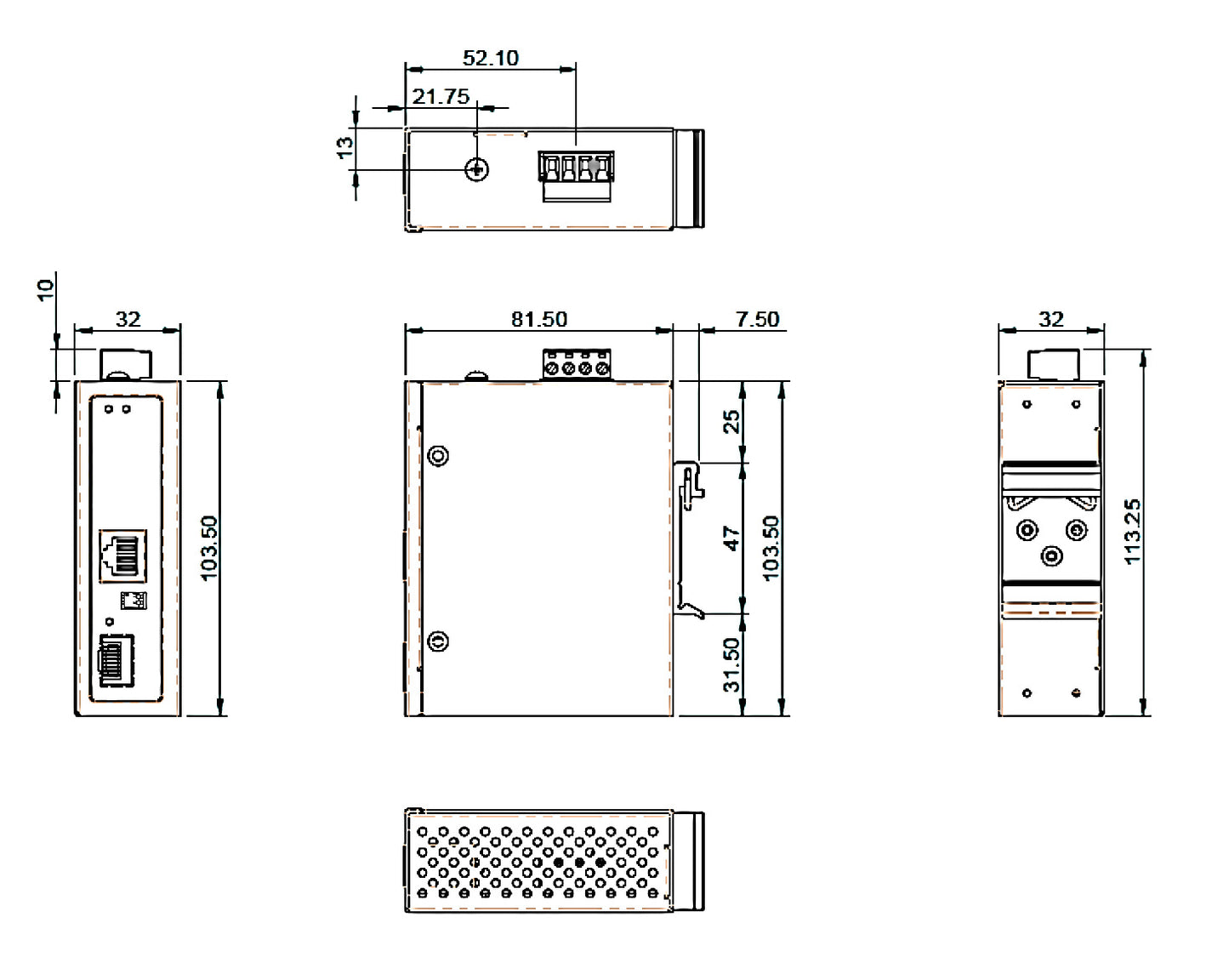

Dimensions
32mm x 81.5mm x 103.5mm (W x D x H)
1.26" x 3.21" x 4.07"

Weight
0.68kg (1.5lbs)

Installation Type
DIN-rail mounting or wall mounting

Click here for additional information

For detailed specifications, download the datasheet here

22 in stock

View full details

Collapsible content

More Information

POE TYPE: 802.3af (15w), 802.3at (30w), 802.3bt (60w), 802.3bt (90w)
POWER INPUT: 52–56VDC redundant inputs
ALARM RELAY: No
MOUNT TYPE: DIN-Rail, Panel
REDUNDANT POWER: Yes
POE POWER BUDGET: 90W
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Unmanaged
FIBER TYPE: 100MB SFP, 1000MB SFP
FIBER PORTS: 1
FIBER DISTANCE: SFP (Various distances)
FIBER/SFP CONNECTOR: SFP
10/100/1000 PORTS: 1
INDUSTRY STANDARDS: UL 60950
