EL2242-BT Hardened Fiber Media Converter with 90W PoE & SFP

10/100/1000 Mbps Ethernet with up to 90W PoE and a dual rate SFP slot supporting 100 Mbps or 1 Gbps fiber.

Hardened operation from −40 to 75°C (−40 to 167°F).

SFP module sold separately.

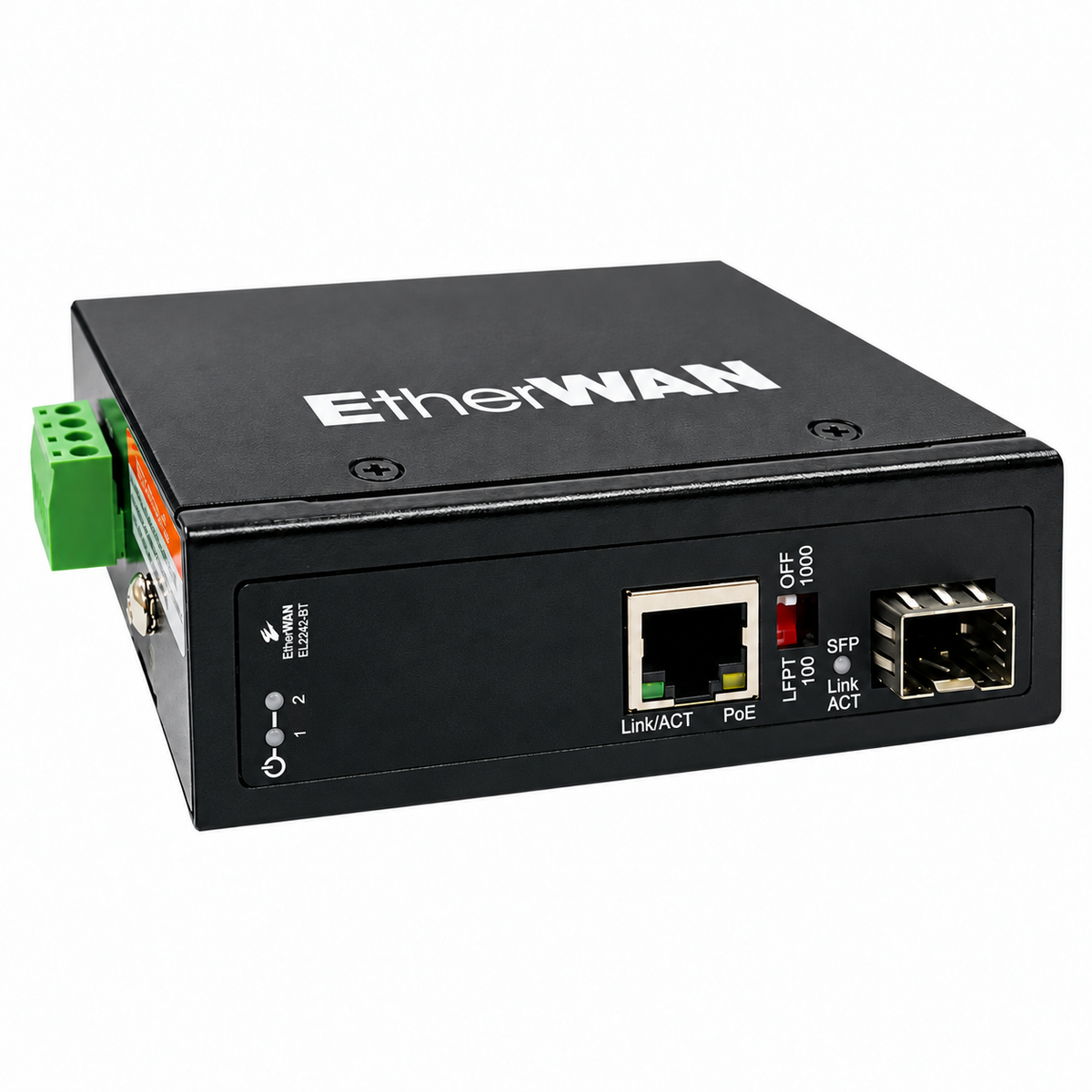

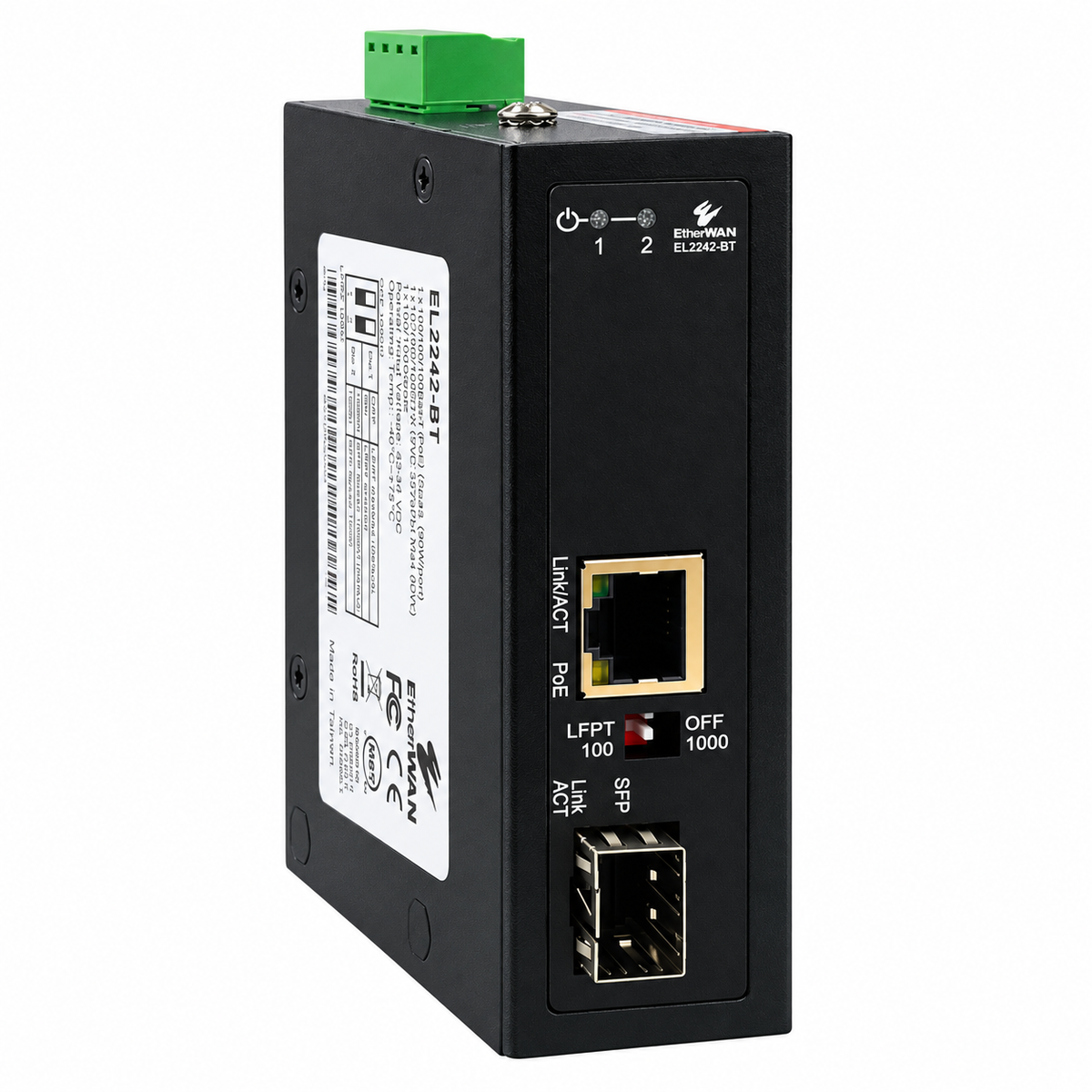

The EtherWAN EL2242-BT industrial fiber media converter connects a fiber network to a compatible PoE device, delivering Ethernet data and up to 90W of power through its RJ45 port. Its dual rate SFP slot lets you select a compatible fiber module for your network’s speed, fiber type, and required distance.

Built for demanding installations, its fanless aluminum housing supports operation in harsh environments. Redundant DC power inputs provide an alternative power connection, while Link Fault Pass Through helps connected equipment detect copper or fiber link failures.

Key Features

• High-power PoE: Supports IEEE 802.3bt with up to 90W output for compatible devices.
• Backward compatibility: Supports IEEE 802.3af and 802.3at PoE devices.
• Flexible fiber connectivity: One SFP slot supporting 100 Mbps or 1 Gbps fiber modules.
• Gigabit Ethernet port: One 10/100/1000 Mbps RJ45 port provides data and PoE.
• Hardened operation: Rated from −40 to 75°C (−40 to 167°F), with a fanless design.
• Industrial enclosure: Aluminum IP30 housing for protected installations.

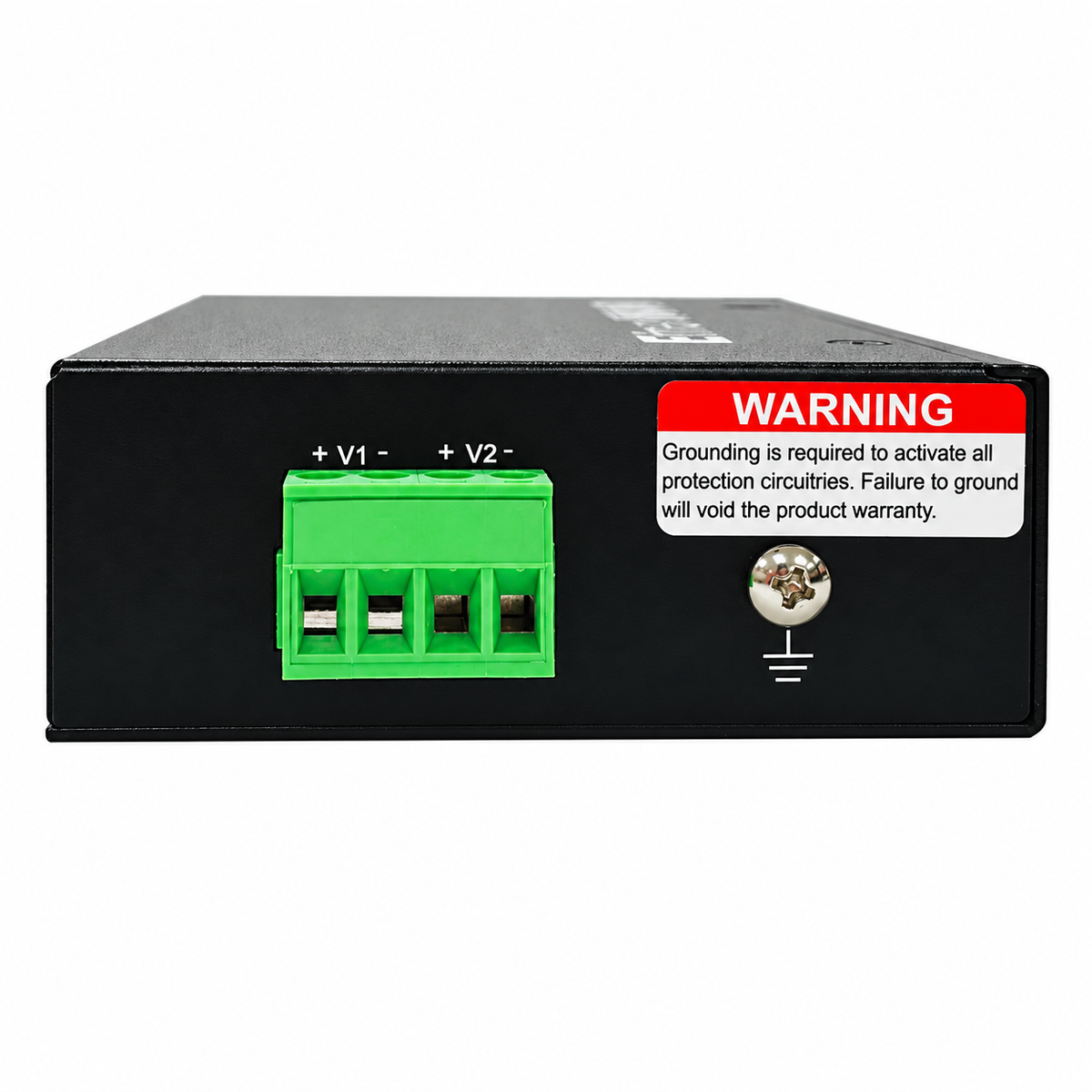

• Redundant power inputs: Accepts 52–56VDC through a terminal block.
• Link Fault Pass Through: Helps connected equipment detect copper or fiber link failures.

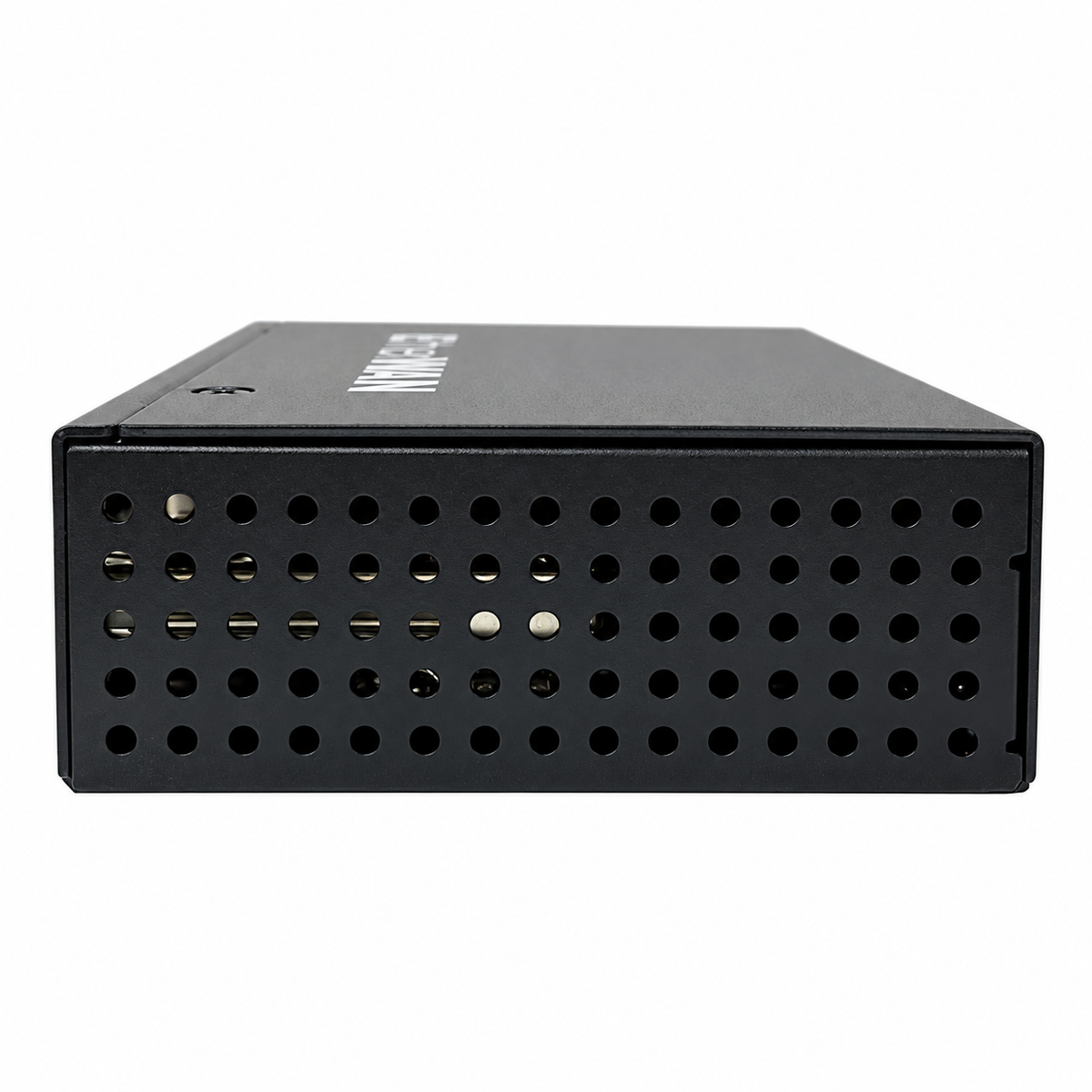

• DIP switch controls: Select fiber speed and enable or disable LFPT.
• Power protection: Includes reverse polarity and current overload protection.
• Flexible mounting: Supports DIN-rail or wall mounting.

Applications

• Fiber connections to compatible high-power PoE surveillance cameras.
• Remote wireless access points connected over fiber.
• Network-connected PoE LED lighting.
• Transportation, utility, and industrial surveillance installations.

Common Questions

Is an SFP module included?
No. Select a compatible 100 Mbps or 1 Gbps fiber SFP separately. The module determines the fiber type, connector, wavelength, and distance. Use compatible optics at the other end.

What power supply does it require?
Use an external 52–56VDC supply with sufficient capacity for the converter and connected PoE device. The converter consumes 2W at 52VDC without PoE. EtherWAN’s datasheet specifies 90W PoE output at 56VDC input. The power supply and connecting wiring are sold separately.

Can it be installed outdoors?
Yes, inside a suitable protective cabinet or enclosure. Its IP30 housing must be protected from rain and moisture.

Suggested Power Supplies
Hardened 54VDC power supply EPOW-54-240
(Power supplies are sold separately)

Casing
Aluminum, IP30

Dimensions
32mm x 81.5mm x 103.5mm (W x D x H)
1.26" x 3.21" x 4.07"

Weight
0.68Kg (1.50lbs.)

Power Input
52–56VDC, redundant DC terminal-block inputs

Power Consumption
2W at 52VDC, excluding PoE load

Installation
DIN-rail or wall mounting, mounting hardware included
