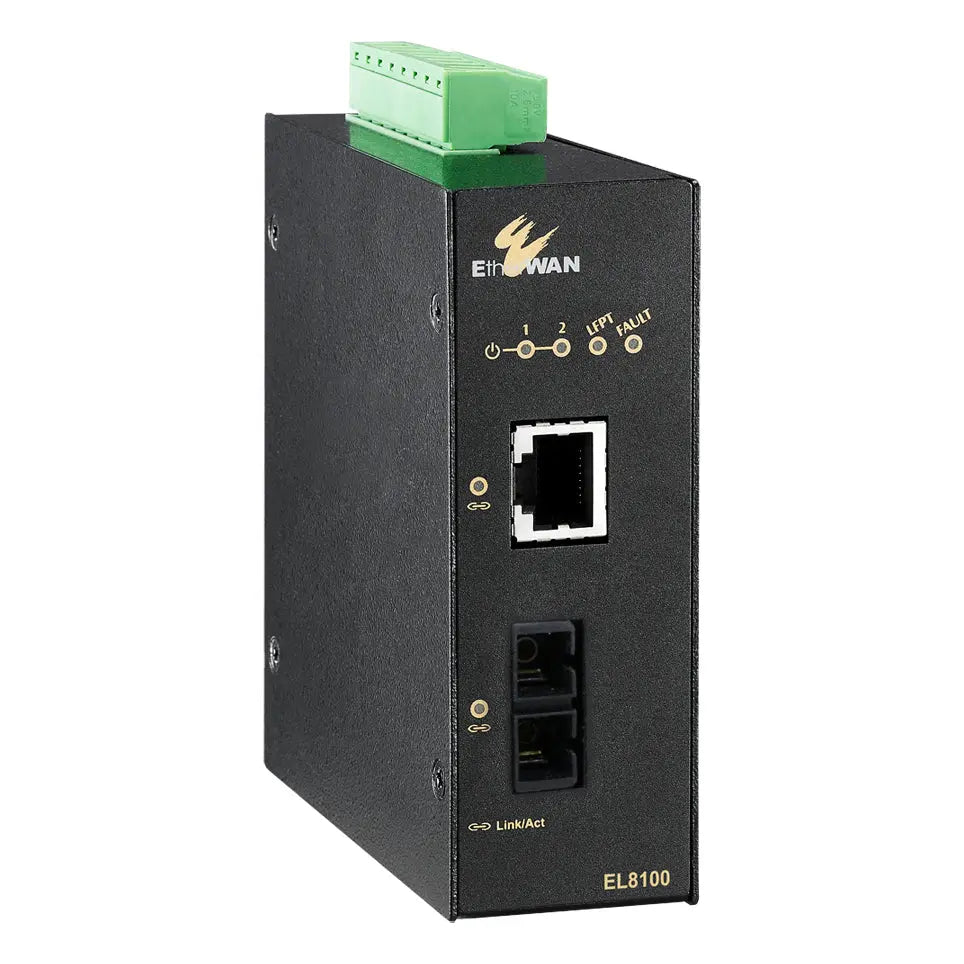

EL8100-41E : Fiber Media Converter : (SC) 2Km 10/100/1000BASE-SX

EtherWAN EL8100-41E fiber media converter provides media conversion between 10/100/1000BASE-TX and 1000BASE-SX (SC) fiber.

Built specifically for mission critical applications in harsh environments, the EL8100-41E's industrial hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C (-40 to 167°F), and aluminum housing.

With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8100-41E is the ideal media converter for environments where connectivity is crucial.

• 10/100/1000BASE-TX to 1000BASE-SX (SC) fiber ethernet transmission conversion
• 1000Mbps full duplex and full wire-speed forwarding rate
• Jumbo frames up to 10K bytes to increase throughput and transmission efficiency

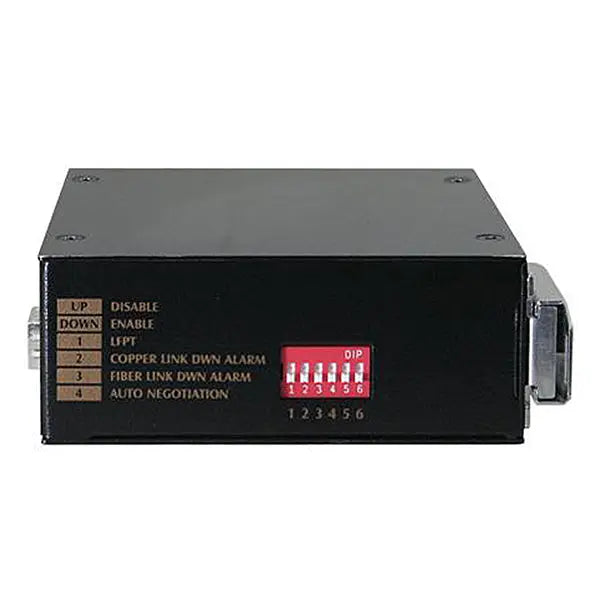

• Relay alarm configured by DIP switch to notify users when power fails or link is down
• Hardened temperature range from -40°C to 75°C (-40°F to 167°F),
• Redundant power inputs on terminal block connector
• Supports DIN-Rail mounting
• Link-Fault-Pass-Through (LFPT) - provides constant monitoring of the links connected to the media converters
• If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Casing
Aluminum Case

Dimensions
35.8mm x 90mm x 100mm (W x D x H)
1.41" x 3.54" x 3.94"

Weight
0.23Kg (0.51lbs.)

Installation
DIN-Rail

Click here for additional information

For detailed specifications, download the datasheet here

Please note that the EL8000-41E is a special order product, and if you decide to purchase this product, it cannot be cancelled, and it is non-returnable.

Lead time is approximately 4-8 weeks. By purchasing this product on etherwanshop.com, you agree to the terms that this item is non-cancellable and non-returnable (NCNR).

If you have any question please contact us at info@etherwanshop.com
