EL8020-V1E - Hardened Media Converter (10/100/1000BASE-TX to 100/1000 SFP)

The EL8020 Series provides media conversion between 10/100/1000BASE-TX and 100/1000 SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8020's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C (-40 to 167°F), and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8020 is the ideal media converter for environments where connectivity is crucial.

• Power failure alarm
• Dual-rate at copper and fiber connection
• 10/100/1000BASE-TX and 100/1000 SFP ethernet transmission conversion
• 1000Mbps full duplex and full wire-speed forwarding rate
• Jumbo frames up to 10K bytes to increase throughput and transmission efficiency
• Relay alarm configured by DIP switch to notify users when power fails or link is down
• Supports -40 to 75°C (-40 to 167°F) operating temperature
• Redundant power inputs on terminal block connector
• Supports DIN-Rail mounting
• Link-Fault-Pass-Through (LFPT) - provides constant monitoring of the links connected to the media converters
• If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Casing
Aluminum Case

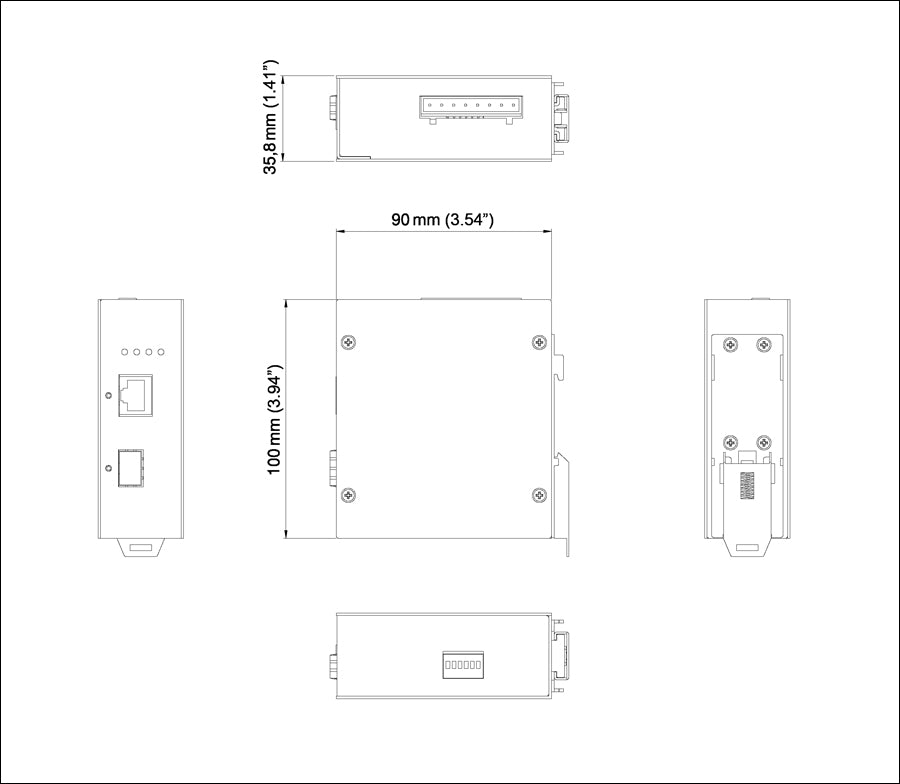

Dimensions
35.8mm x 90mm x 100mm (W x D x H)
1.41" x 3.54" x 3.94"

Weight
0.23Kg (0.51lbs.)

Installation
DIN-Rail

Click here for additional information

For detailed specifications, download the datasheet here
