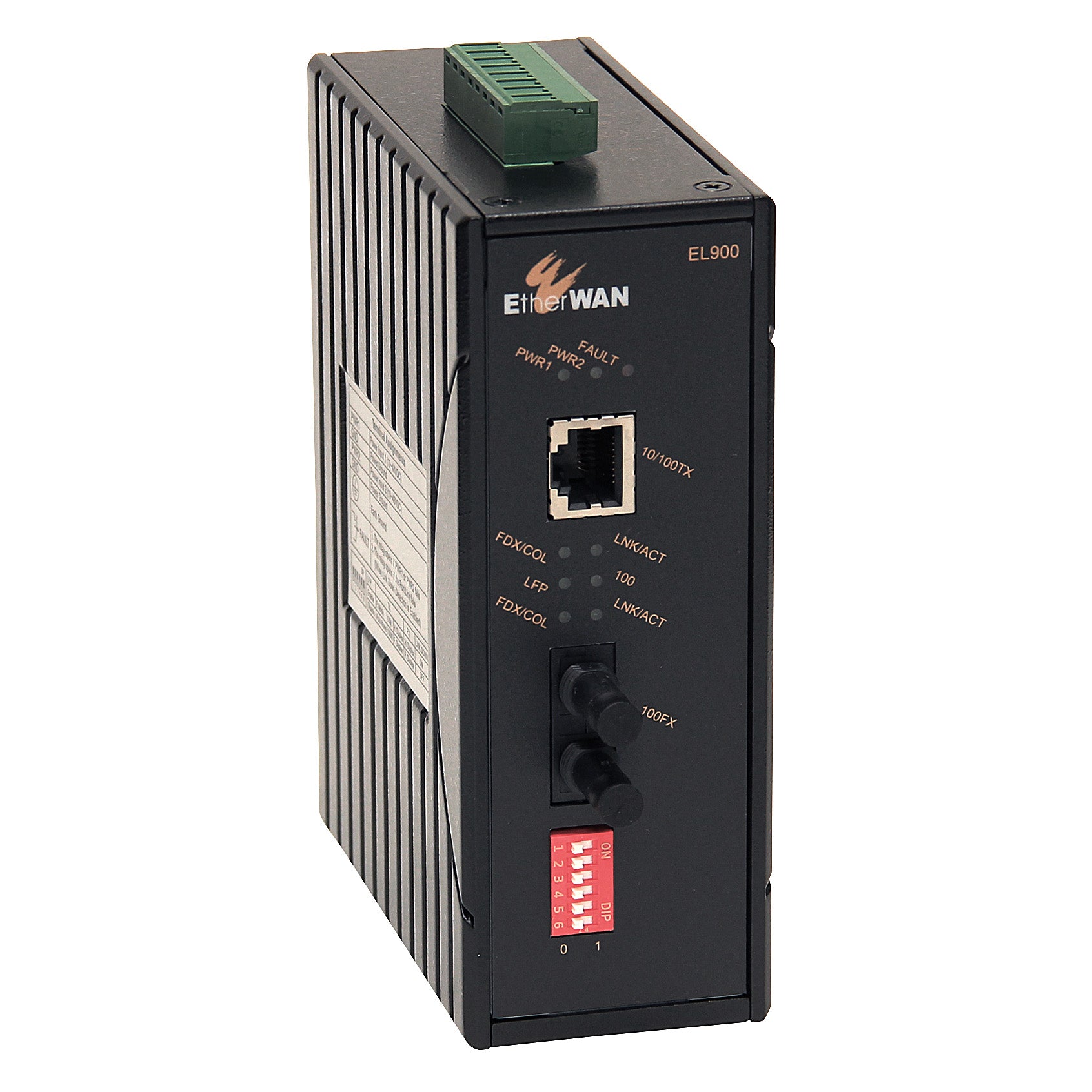

EL900-A-M-1-A - Hardened Media Convertor - 20Km, Single Mode (ST) - 1310nm, 10-48VDC (DC Terminal Block)

EL900-A-M-1-A provides media conversion between 10/100BASE-T and Single Mode (ST) - 20Km (1310nm) fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments.

• Design and certified for Class I, Division 2 electrical equipment
• Link Fault Pass Through (LFPT)
• Alarms for power and link failure
• Highly qualified for explosive environmental applications and certified by UL with ISA12.12.01 Class I, Division 2 classified for use in hazardous locations
• -40°C to 75°C wide operating temperature range design is suitable for installation in outdoor cabinet
• LFPT function let network operators be aware of network connection status
• When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vise versa

Casing
Aluminum Case

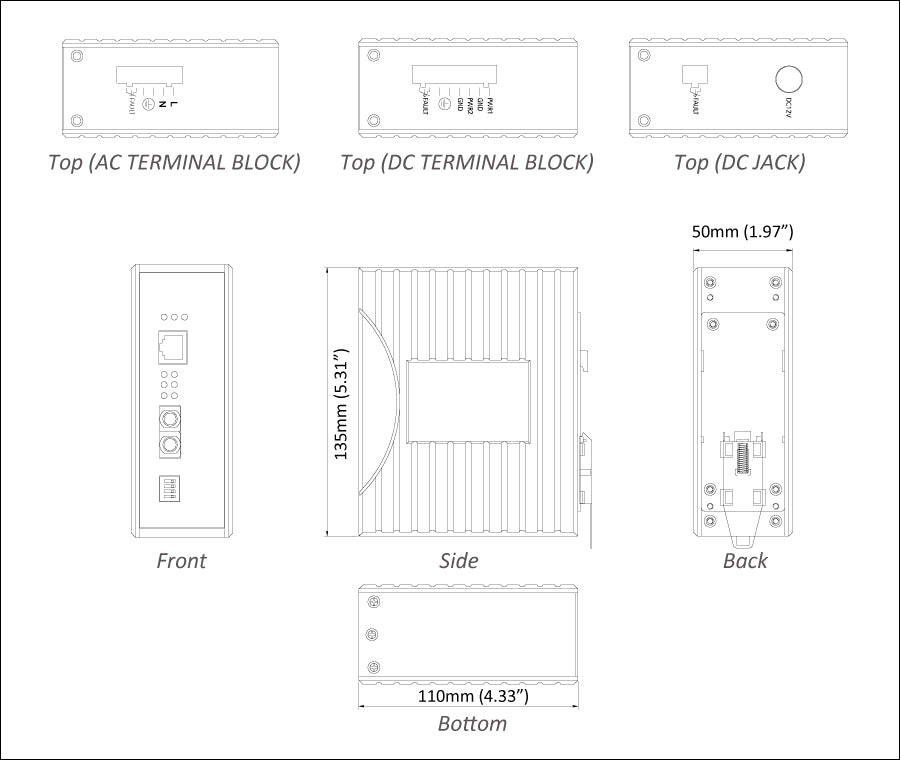

Dimensions
50mm x 110mm x 135mm (W x D x H)
1.97" x 4.33" x 5.31"

Weight
0.8Kg (1.76lbs.)

Installation

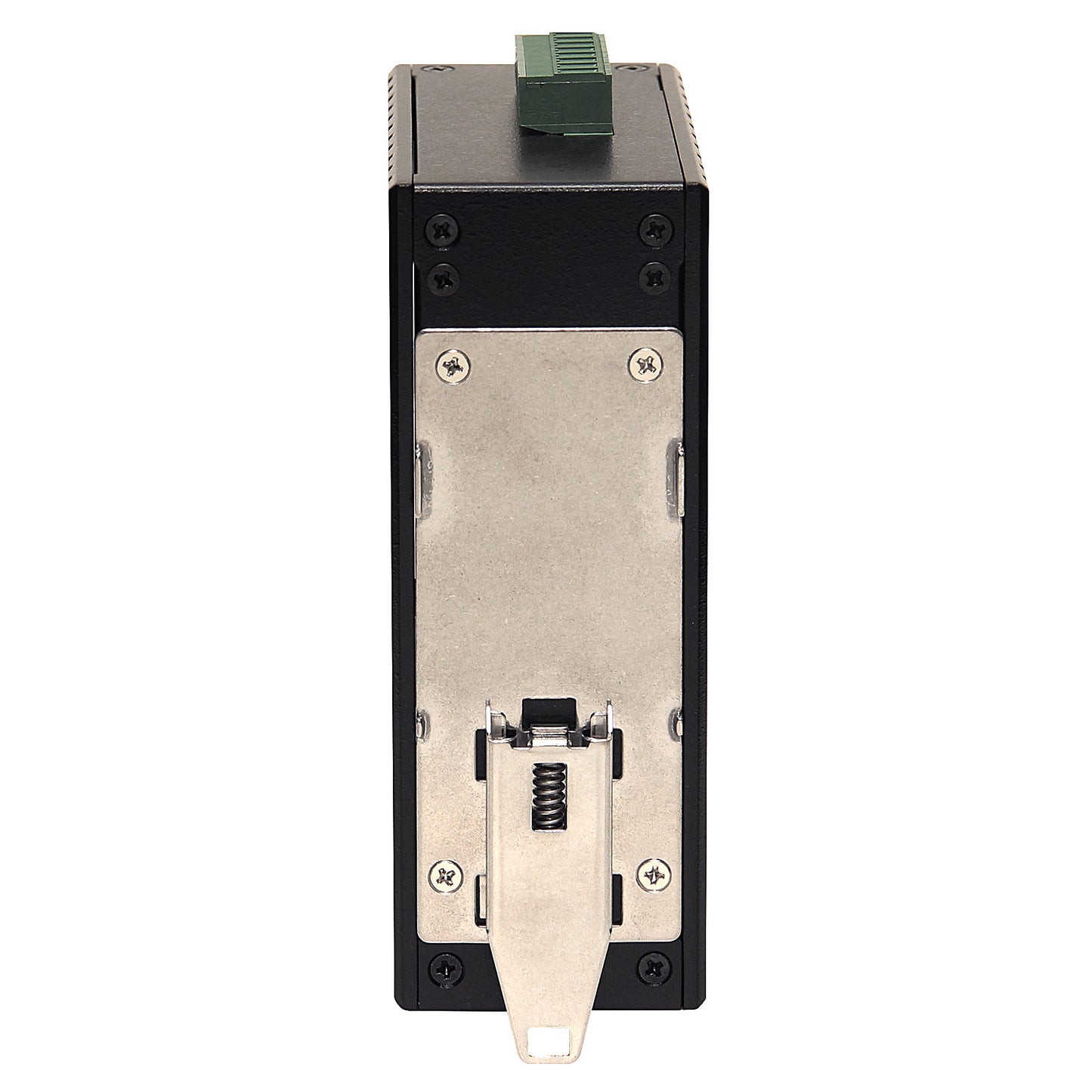

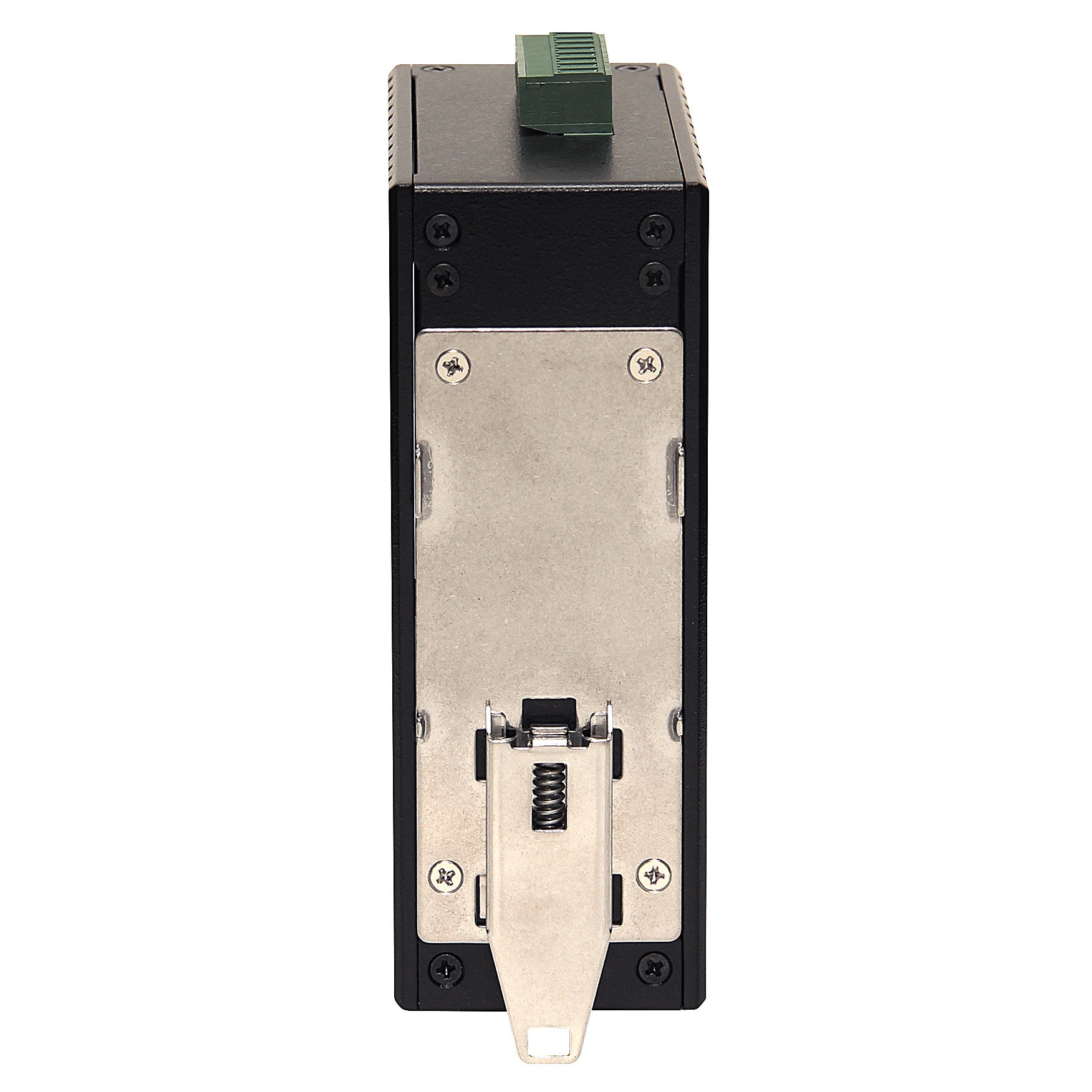

DIN-Rail (top hat type 35mm) or panel mounting
