EMC1600 - 16-Bay Media Converter & Ethernet Extender Chassis - Rack Mount

EMC1600

The EMC1600 is a 16-Bay chassis specifically designed to house and power selected EtherWAN Media Converters and Ethernet Extenders in a 19" rack enclosure.

The hot swappable design enables easy installation, product additions, and deletions of EtherWAN Media Converters and Ethernet Extenders without interrupting existing communications within the chassis. Each bay is electrically isolated from each other with fused over-current protection resulting is unprecedented reliability. The redundant internal power supplies provide both power redundancy and load sharing. Support for AC power input allows the EMC1600 to be used worldwide. With its solid metal enclosure, standard 19" rack-mount and two-unit height design, the EMC1600 is ideal for interconnecting disparate network media and extending Ethernet beyond its boundaries.

• Powers up to 16 media converters or ethernet extenders with redundant power supply modules
• Capable of hot-swap installations of compatible EtherWAN media converters and ethernet extenders
• Supported media converter models include EL2321, EL2211, EL2315, EM120, EL100/EL200 and ED3501 series

Casing
Metal Case

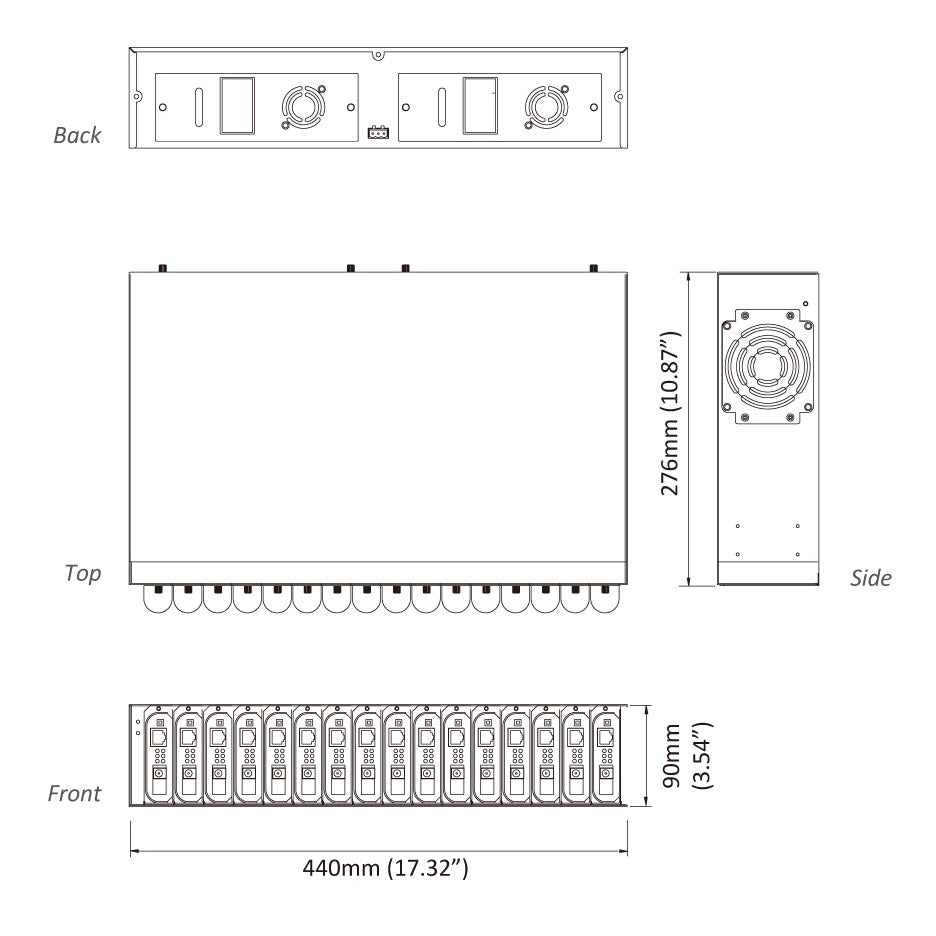

Dimensions
440mm x 276mm x 90mm (W x D x H)
17.32" x 10.87" x 3.54"
Standard 19" rack-mount size, two-unit-height

Weight
6.8Kg (14.96lbs)

Installation
Rack mounting

Click here for additional information

For detailed specifications, download the datasheet here
