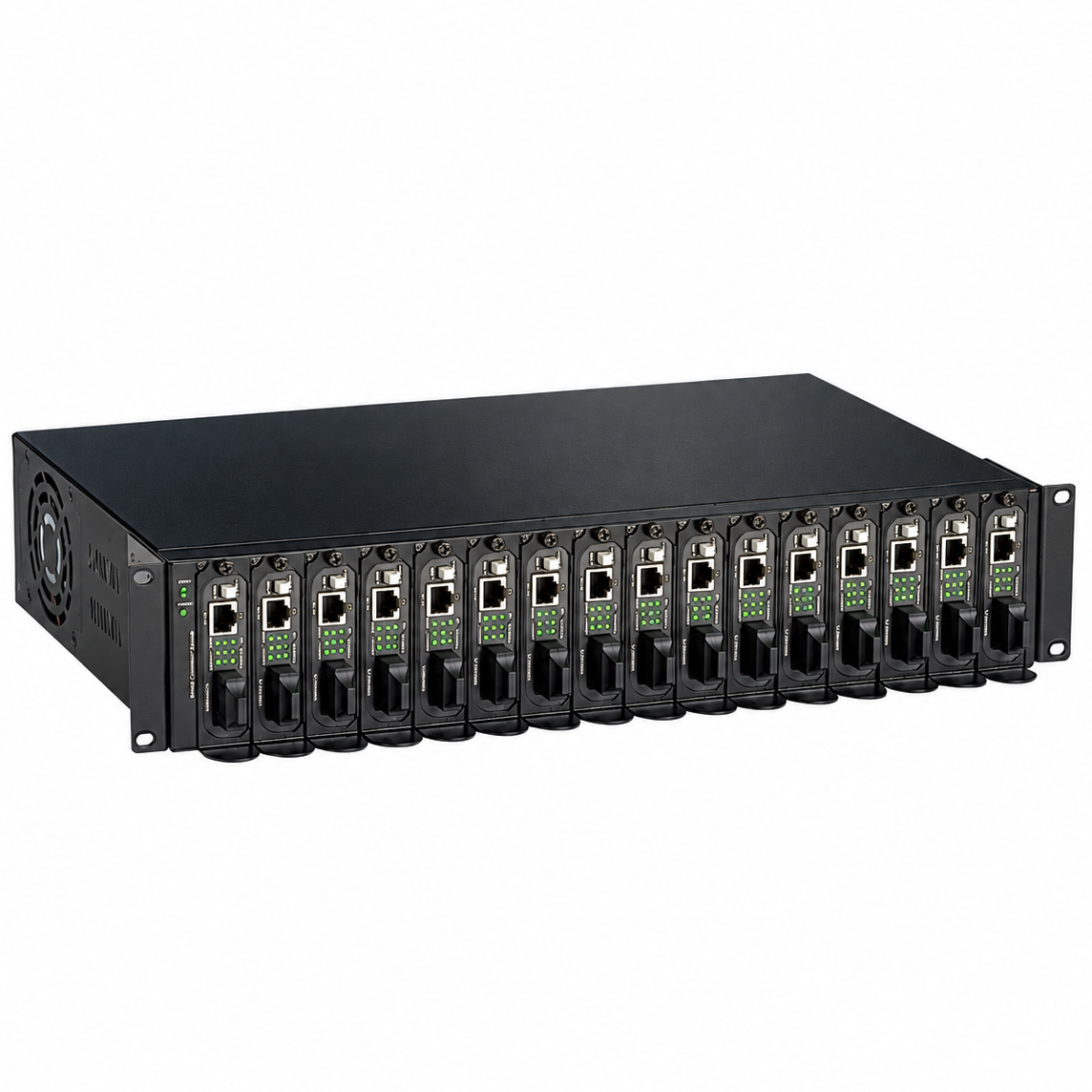

EMC1600 16-Slot Media Converter Rack Chassis

19" rack-mount chassis for up to 16 compatible EtherWAN media converters or Ethernet extenders.

Includes two AC power supplies for redundant power and load sharing.

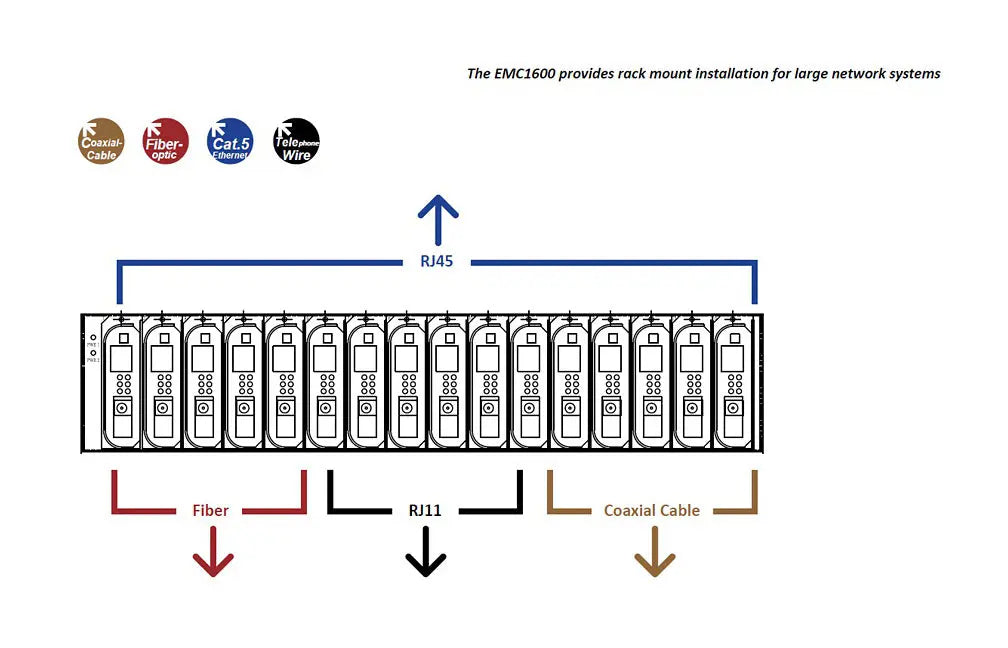

The EtherWAN EMC1600 brings multiple fiber connections and Ethernet extension links into one rack-mounted installation. Its 16-bay design centralizes compatible devices and their power connections, helping organize equipment in network rooms and communications racks.

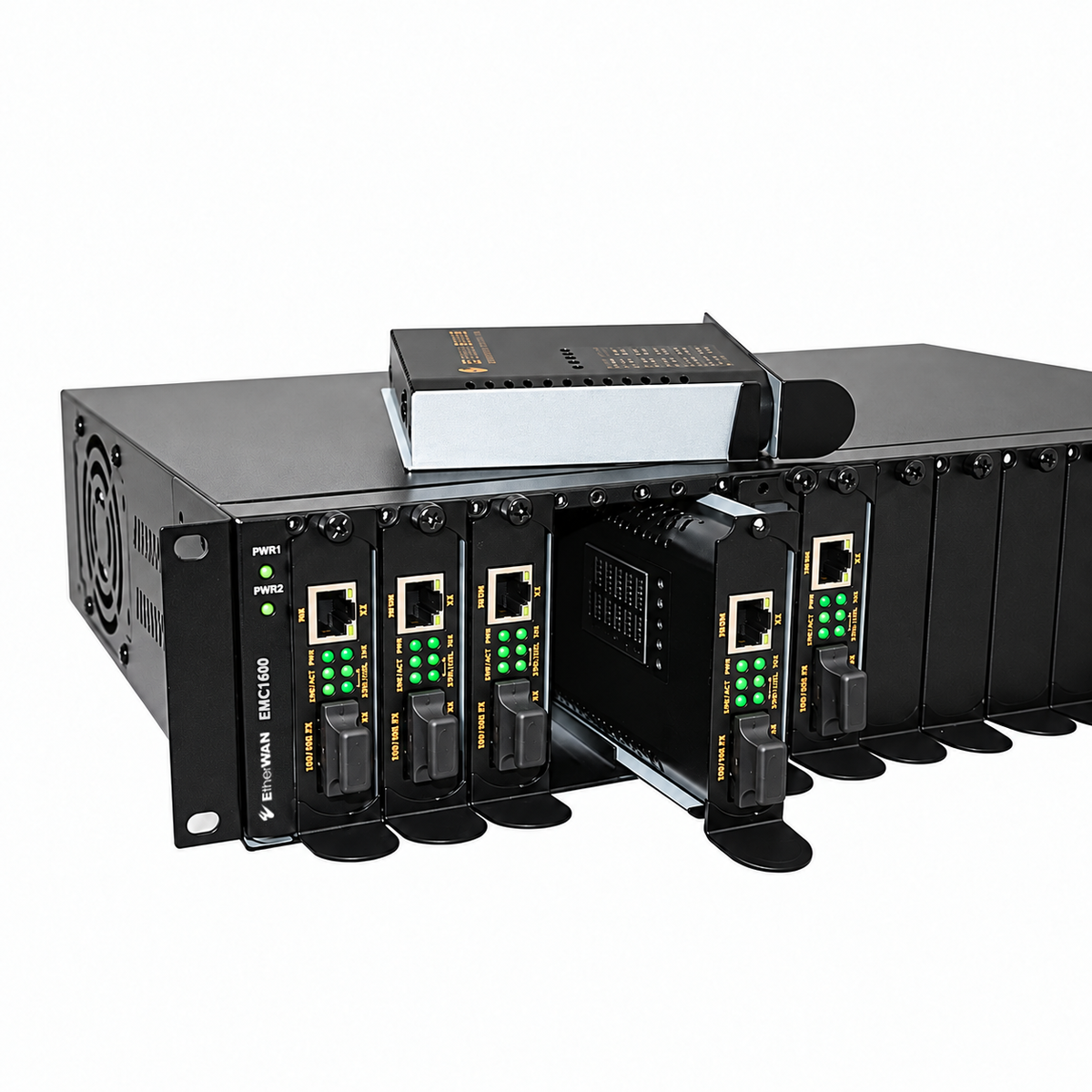

Compatible devices can be installed or removed while the chassis remains powered, without interrupting communications through the other installed devices. Each bay is electrically isolated and protected against overcurrent.

Key Features

• 16-slot capacity: Houses and powers up to 16 compatible EtherWAN media converters or Ethernet extenders.
• Two power supplies included: Redundant internal AC power supplies provide load sharing and power redundancy.
• Hot-swappable installation: Add or remove compatible devices without powering down the chassis or disrupting other installed links.
• Individual bay protection: Electrically isolated bays with fused overcurrent protection.
• Standard rack installation: Fits a 19" equipment rack and occupies two rack unit spaces.
• Universal AC input: Supports 100–240VAC, 50–60Hz.
• Power monitoring: Power status indicators and a relay output for external alarm signaling.
• Commercial operation: Rated from 0 to 45°C (32 to 113°F).

Applications

• Centralizing multiple Ethernet-to-fiber connections in a network room.
• Organizing compatible media converters in a communications rack.
• Housing compatible Ethernet extenders for links beyond standard Ethernet cable distances.
• Consolidating equipment and power connections in business, campus, and surveillance networks.

Common Questions

Which media converters work with the EMC1600?
Supported EtherWAN families include EL100/EL200, EL2211, EL2315, EL2321, and EM120, along with selected Ethernet extenders and other compatible models. Compatibility depends on the specific device, not simply its Ethernet speed or fiber connector. Confirm your model before ordering.

Are the power supplies and media converters included?
Two AC power supplies are included with the EMC1600 chassis. Media converters and Ethernet extenders are sold separately.

Can I add or replace a converter without shutting down the entire rack?
Yes. Compatible devices support hot-swappable installation. Removing a device interrupts its own connection, while other installed devices can continue operating.

Compatible Media Converters
Browse our commercial fiber media converters for use with the EMC1600.

Replacement Power Supply
The EMC1600-RPSA AC power supply is available separately as a replacement or spare. Two AC power supplies are included with the EMC1600 chassis.

Casing
Metal

Dimensions
440mm x 276mm x 90mm (W x D x H)
17.32" x 10.87" x 3.54"

Weight
6.8kg (14.99lbs.)

Power Input
100–240VAC, 50–60Hz

Power Consumption
Chassis system: 5.4W maximum, installed device power requirements are additional.

Installation
19" rack mounting
