EPOW-54-400 - Hardened Power Supply 400W, 54VDC, 100-277 VAC Input, NEMA-TS2 rated, 0-11.1A w/ Open Wire (US Plug)

Hardened Power Supply 54V 400W

With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with a fan-less and water-resistant design, EtherWAN’s EPOW-54-400 is a 54VDC hardened power supply designed to operate in the most extreme environments. The EPOW-54-400 has a 400W total power output and built in over-voltage and short-current protection, making it an ideal and reliable solution for powering hardened PoE switches and other applications.

• Active built-in PFC for max power distribution efficiency
• Constant voltage across output terminal
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• IP67 total dust protection and water resistance
• Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
• High impact, thermal shock, and electrical noise resistance
• AC and DC cables pre-attached

Casing Material
Aluminum

IP Rating
IP67 (Dust Tight and Waterproof)

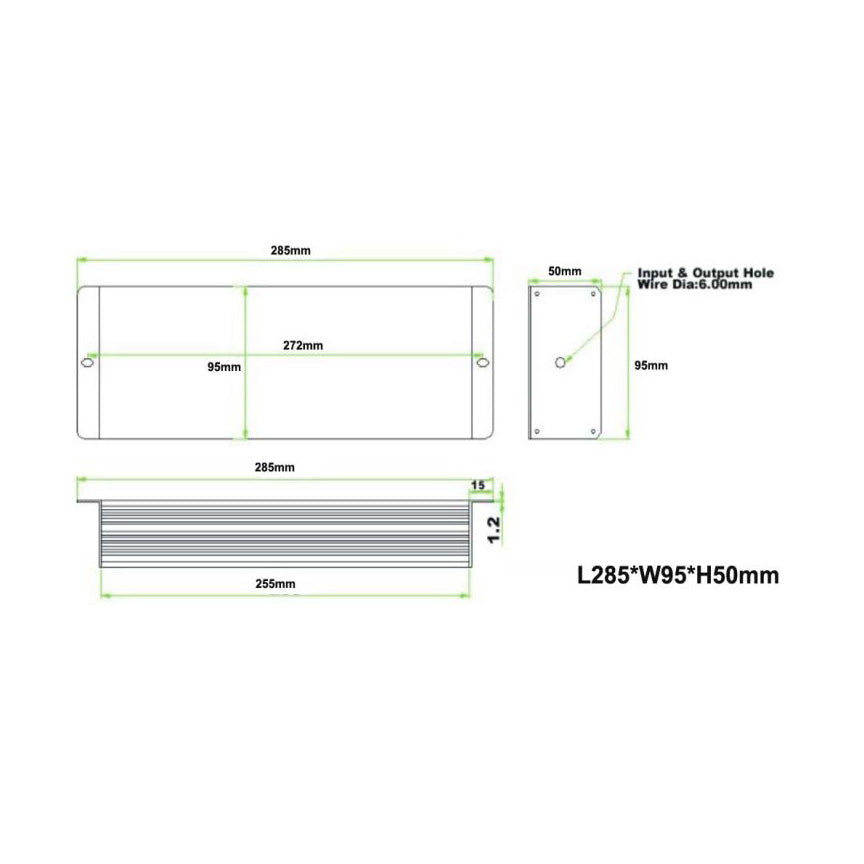

Dimensions
285mm x 95mm x 50mm (W x D x H)
11.22" x 3.74” x 1.97"

Weight
5.5lbs (2.5kg)

Installation Type
Wall mounting

Click here for additional information

For detailed specifications, download the datasheet here
