EPOW-54-600 - Hardened Power Supply 600W, 54VDC, 100-277 VAC Input, NEMA-TS2 rated, 0-11.1A w/ Open Wire (US Plug)

EPOW-54-600 - Hardened Power Supply 600W, 54VDC, 100-277 VAC Input, NEMA-TS2 rated, 0-11.1A w/ Open Wire (US Plug)

SKU:EPOW-54-600

Regular price $354.84 USD
Regular price Sale price $354.84 USD
Sale Sold out

EPOW-54-600

Hardened Power Supply 54V 600W

With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-54-600 is a 54V 600W hardened power supply designed to operate in the most extreme environments. The EPOW-54-600 has a 600W power budget and built in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.

  • Active built-in PFC for max power distribution efficiency
  • Constant voltage across output terminal
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • IP67 total dust protection and water resistance
  • Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
  • High impact, thermal shock, and electrical noise resistance
  • AC and DC cables pre-attached
  • Mounting holes to install outdoors and or in cabinets

Casing Material
Aluminum

IP Rating
IP67 (Dust Tight and Waterproof)

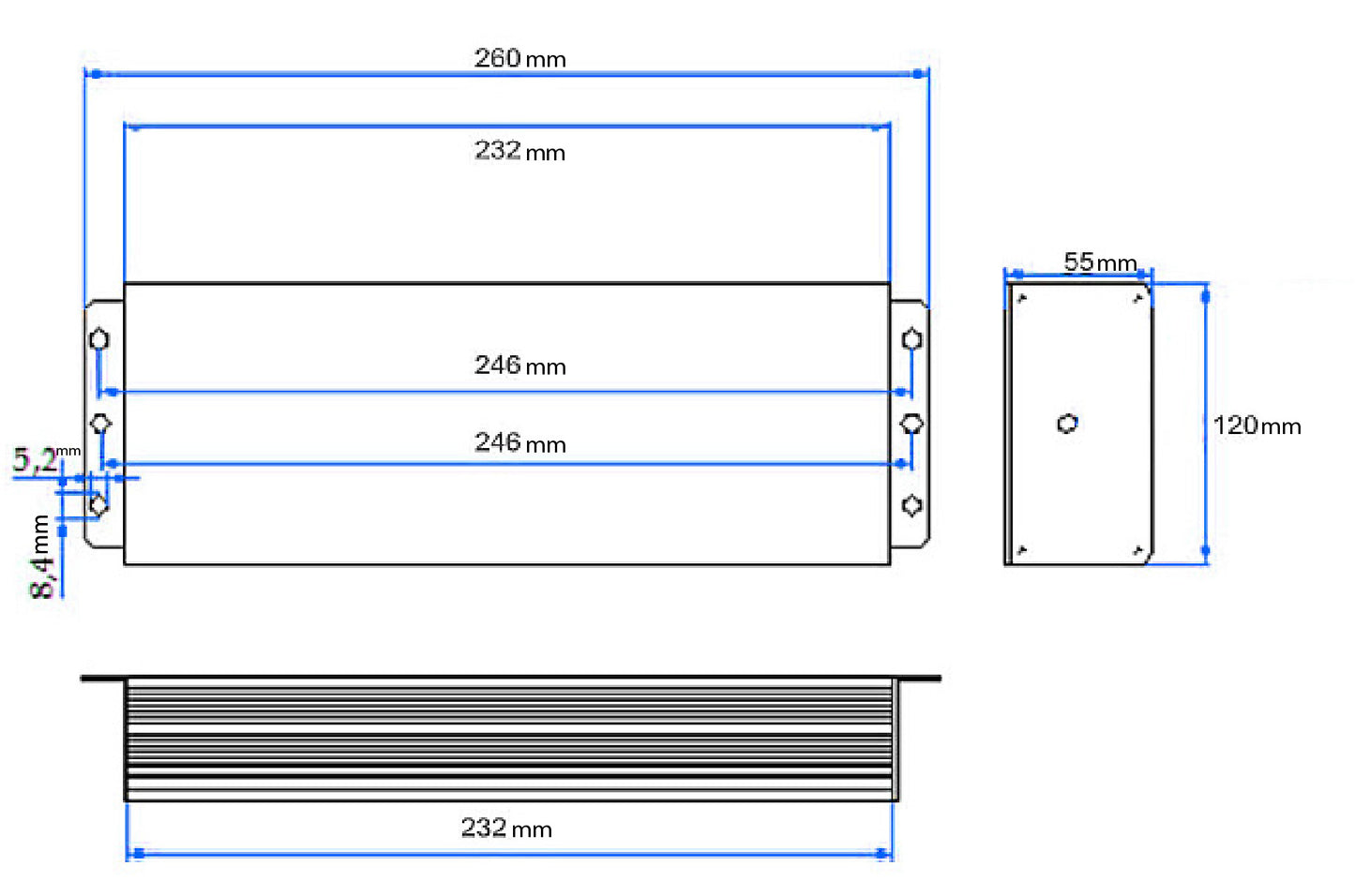

Dimensions
260mm x 120mm x 55mm (W x D x H)
10.24" x 4.73” x 2.17"

Weight
6.62lbs (3kg)

Installation Type
Wall mounting

Click here for additional information

For detailed specifications, download the datasheet here

47 in stock

View full details

Collapsible content

More Information

INPUT VOLTAGE: 100-277 VAC
OUTPUT POWER (WATTS): 600
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40°C to 75°C (-40°F to 167°F)
POWER SUPPLY TYPE: Power Brick
INDUSTRY STANDARDS: NEMA-TS2
