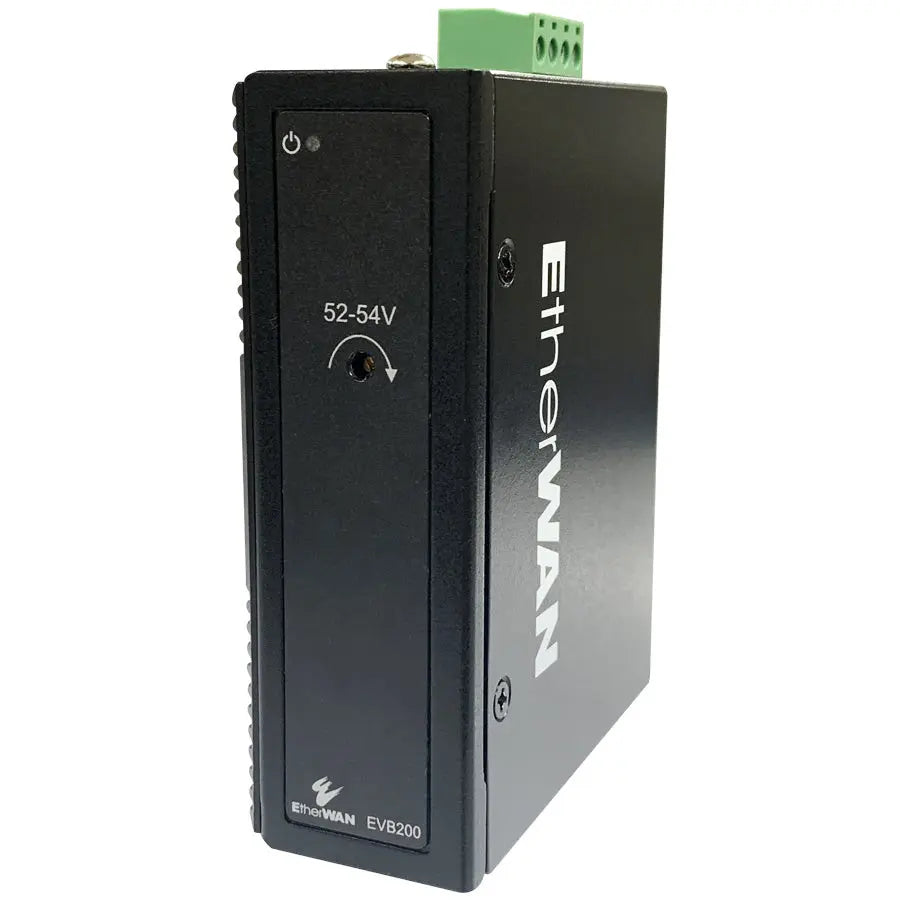

EVB200 : Industrial Voltage Booster : PoE Outdoor Hardened

EVB200 : Industrial Voltage Booster

The EVB200 industrial voltage booster is a hardened device for raising the input voltage to provide a steady voltage level suitable for power over ethernet (PoE) devices. With an input range of 12-24VDC, a max of 100W of power is provided at 52-54VDC.

A range of 24-48VDC provides 200W max at 52-54VDC. The output voltage can be adjusted with the voltage knob. The power booster ensures reliable operation in harsh environments and is a perfect addition to applications such as solar where 12V or 24V are most common, but PoE is needed.

• Delivers 100W Max @ 12V-24VDC input range & 200W max @ 24-48VDC input range
• Boosts 12-24VDC to 52-54VDC necessary for PoE+ & up (30W-90W)
• Hardened-grade for non-ventilated and harsh environments
• Perfect for solar and traffic cabinet applications where 12-24VDC is used
• Wide operating temperature range -40 to 75°C (-40 to 167°F)

• High impact, thermal shock, and electrical noise resistance
• Fanless operation

Casing Material
Rugged Metal

IP Rating
IP30

Dimensions
32mm x 81.5mm x 103.5mm
1.26" x 3.21" x 4.07"

Installation
DIN-Rail or wall mount

Click here for additional information

For detailed specifications, download the datasheet here
