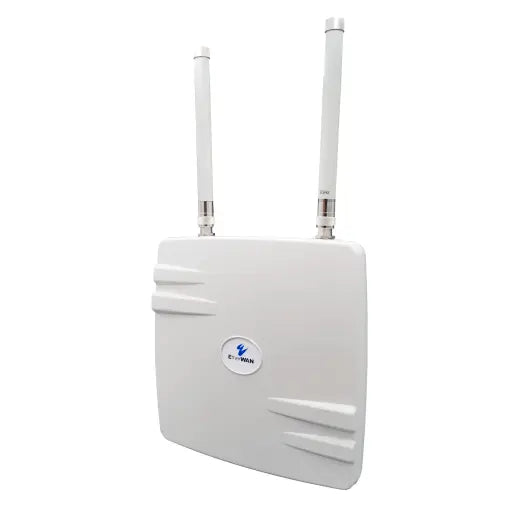

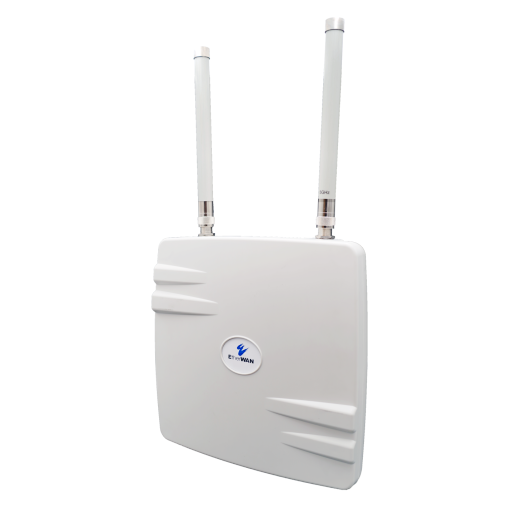

EW75000-08 - Hardened IP67 Outdoor Wireless Access Point 5GHz/8dBi Omni-Directional Antenna 802.11ac

EW75000-08

The eWAV series is a family of hardened IP67 outdoor wireless access points (WAP) providing high-speed wireless connectivity for harsh and demanding environments. Comprised of high-power, long-range single and dual-band IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the series is hardened against extreme temperatures and water ingress.

eWAV delivers the power and range (up to 20 miles) to wirelessly connect remote networks, or extend existing networks in an efficient and cost-effective way. It supports 5GHz 802.11a/n/ac for long-distance Point-to-Point and Point-to-Multi-Point connections with up to 867Mbps transmission speeds.

High bandwidth wireless connectivity

• Design for Point-to-Point wireless remote connectivity
• IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 866Mbps
• 2 x 2 MIMO antennas with high gains

Hardened grade with IP67 protection

• Wide operating temperature range for extreme environments
• Fanless and ruggedized outdoor IP67 enclosure

Comprehensive and advanced software features

• Static routing, RIPv1 & v2 and OSPFv2
• Built in Stateful Firewall and RADIUS for security control
• RF strength LEDs and Bandwidth Tester to ease installation effort

Casing
Aluminum Case
IP67

Dimensions
270mm x 565mm x 76mm (W x H x D)
10.63" x 22.25" x 3"

Weight
3.5lbs.

Installation
• Pole/Wall Mounting

Click here for additional information

For detailed specifications, download the datasheet here
