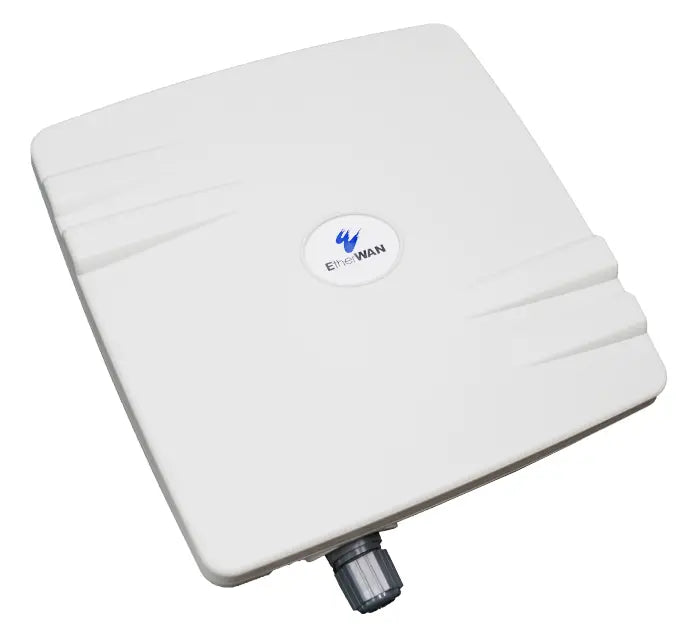

EW75000-13MP : Outdoor Wireless Bridge : Access Point : WiFi Antenna

EtherWAN EW75000-13MP outdoor wireless bridge is part of the eWAV series, and is a hardened IP67 outdoor wireless Multi-Point Bridge / Access Point unit providing high speed wireless connectivity remotely. Comprised of high-power IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the EW75000-13MP is industrial hardened against extreme temperatures and water ingress for harsh and demanding environments.

EtherWAN EW75000-13MP outdoor wireless bridge delivers the power and range (up to 20 miles) to wirelessly connect remote networks, or extend existing networks in an efficient and cost-effective way. It supports 5GHz 802.11a/n/ac for long distance Point-to-Point data transmission. Maximum transmission speeds are up to 867Mbps on the 5GHz band.

High bandwidth wireless connectivity

• Design for Point-to-Point wireless remote connectivity
• IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 866Mbps
• 2 x 2 MIMO antennas with high gains

Hardened grade with IP67 protection

• Wide operating temperature range for extreme environments
• Fanless and ruggedized outdoor IP67 enclosure

Comprehensive and advanced software features

• Static routing, RIPv1 & v2 and OSPFv2
• Built in Stateful Firewall and RADIUS for security control
• RF strength LEDs and Bandwidth Tester to ease installation effort

Casing
UV Protected Polystyrene case with internal metal enclosure
IP67

Dimensions
270mm x 301.7mm x 76mm (W x H x D)
10.63" x 11.88" x 3"

Weight
3.5lbs

Installation
Pole/Wall Mounting

Click here for additional information

For detailed specifications, download the datasheet here
