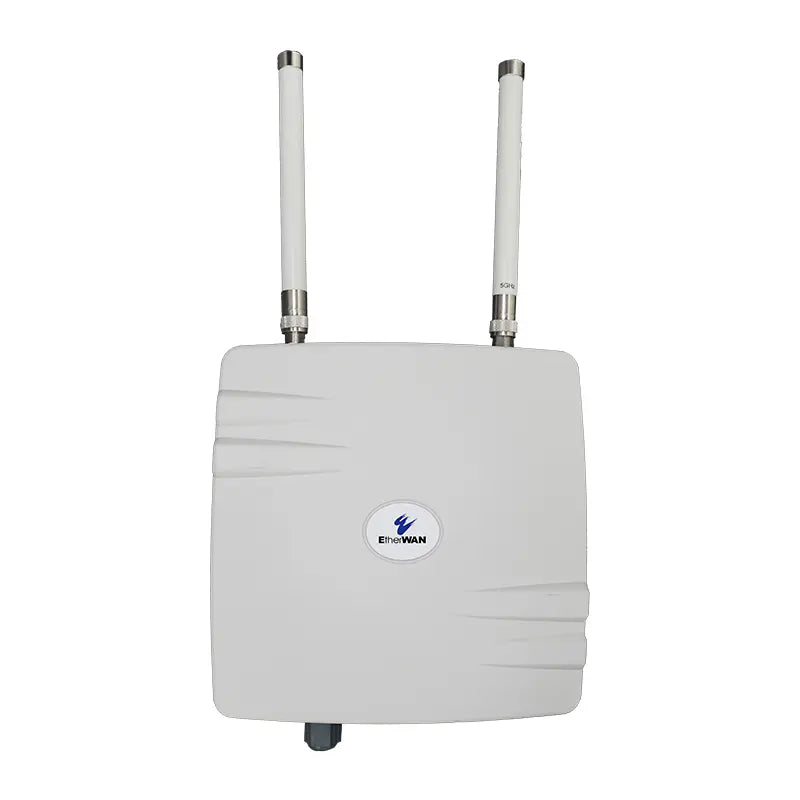

EW75200-1308 - Hardened IP67 Outdoor Wireless Access Point with 5GHz/19dBi Panel Antenna & 5GHz/8dBi Omni Antenna

EW75200-1308 - Hardened IP67 Outdoor Wireless Access Point with 5GHz/19dBi Panel Antenna & 5GHz/8dBi Omni Antenna


Regular price $1,564.00 USD
Regular price Sale price $1,564.00 USD
Sale Sold out


The eWAV EW75200-1308 is a hardened IP67 outdoor wireless access points (WAP) providing high speed wireless connectivity for harsh and demanding environments. Comprised of high-power, long-range IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the series is hardened against extreme temperatures and water ingress. eWAV delivers the power and range (up to 20 miles) to wirelessly connect remote networks or extend existing networks in an efficient and cost-effective way. The EW75200-1308 supports two 5GHz 802.11a/n/ac Radios for long-distance Point-to-Point/Point-to-Multi-Point data transmission and local device access such as laptops, wireless IP cameras, or mobile devices. Maximum transmission speeds are up to 866Mbps on each 5GHz radio.

  • Designed for Point-to-Point and Point-to-Multipoint wireless backhaul applications
  • IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 866Mbps
  • 1 x dual polarization, high gain panel antenna
  • 2 x high gain omnidirectional antennas
  • Wide operating temperature range for extreme environments
  • Fanless and hardened outdoor IP67 enclosure
  • Static routing, RIP v1/v2 and OSPF v2
  • Built in Stateful Firewall and RADIUS for security control
  • RF strength LEDs and bandwidth tester to ease installation effort

UV Protected Polystyrene case

270mm x 565mm x 76mm
10.63" x 22.25" x 3"

(1.9 kg) 4.2lbs.

Pole/Wall Mounting

Click here for additional information

For detailed specifications, download the datasheet here

19 in stock

View full details

Collapsible content

More Information

POE TYPE: 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
ANTENNA TYPE: 5GHz/8dBi Omni Directional
MOUNT TYPE: Wall, Pole
SECURITY: AES, Firewall, RADIUS client, WEP, WPA, WPA2
ROUTING PROTOCOLS: OSPF v2, RIP v1 & v2, Static Routing
POWER INPUT: 48VDC PoE Including Passive PoE, Telecom PoE, 802.3af and 802.3at
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
LAYER 3: Yes
10/100/1000 PORTS: 1
WIRELESS TYPE: Access Point (AP)
