EX19082 - Smart Managed 10-Port Gigabit PoE Ethernet Switch - (8) 10/100/1000BASE-T(X) PoE+ ports and (2) Gigabit uplink ports (RJ45 port + 1 SFP)

EX19082 - Smart Managed 10-Port Gigabit PoE Ethernet Switch - (8) 10/100/1000BASE-T(X) PoE+ ports and (2) Gigabit uplink ports (RJ45 port + 1 SFP)

SKU:EX19082

Regular price $381.10 USD
Regular price Sale price $381.10 USD
Sale Sold out

EX19082

EtherWAN's EX19082 provides a 10-port managed switching platform supporting IEEE802.3at Power over Ethernet, high performance switching with features required for small-business or enterprise environments where sustained connectivity is crucial.

The EX19082 is equipped with (8) 10/100/1000BASE Gigabit PoE ports, (1) 10/100/1000BASE RJ45 port, and (1) 100/1000BASE SFP port. The EX19082 is feature rich with full wire speed throughput and management features, making it a powerful network switch.

The IEEE802.3at PoE ports provide up to 30W/port with a PoE power budget of 250W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption.

Users are able to access management features such as IP configuration, QoS, VLANs, trunking and more, via a web browser interface.

  • Easy to use web GUI
  • VLAN configuration
  • Comprehensive IP configuration and QoS
  • Total PoE power budget of 240W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

Casing Material
Metal

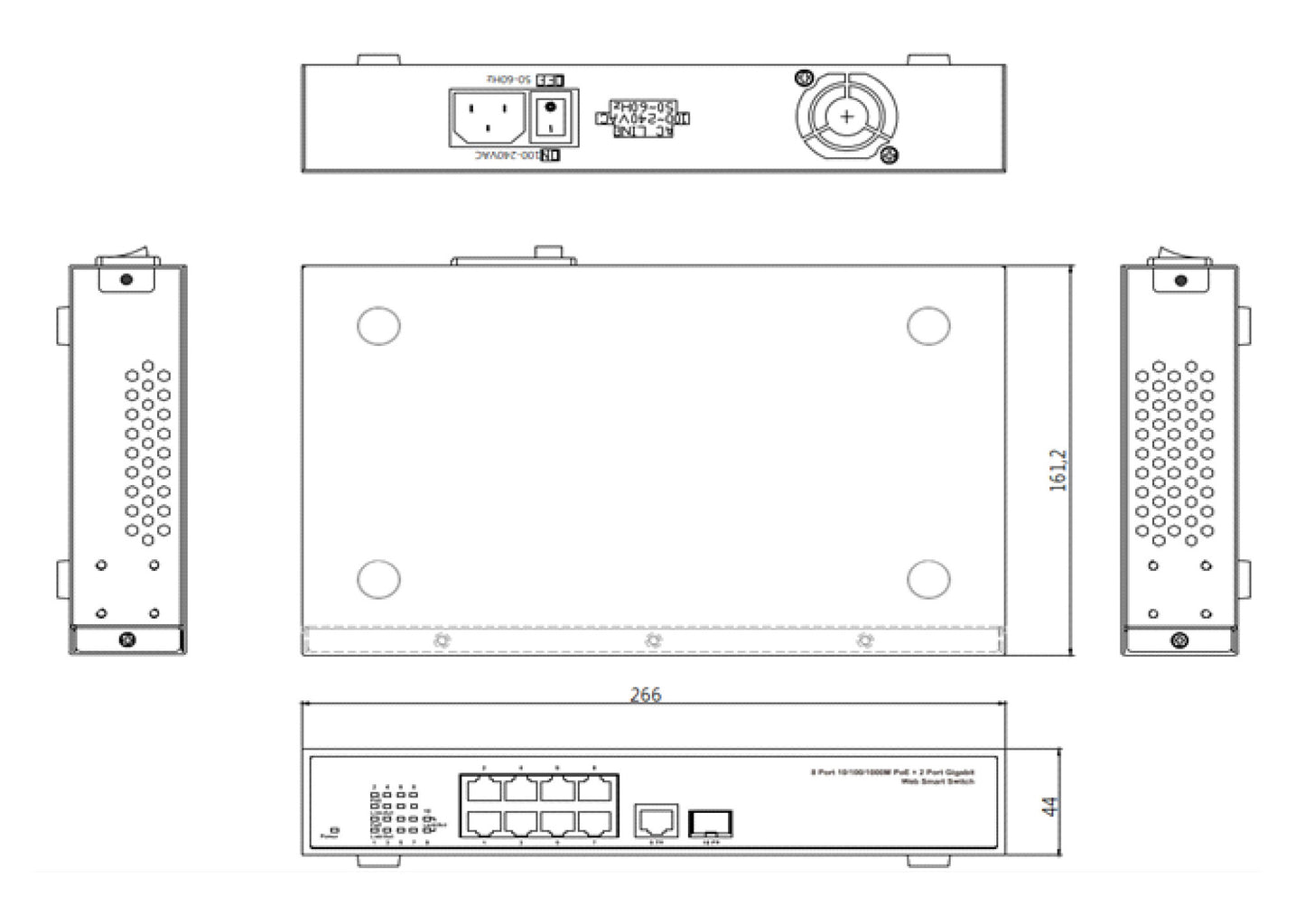

Dimensions
266mm x 161mm x 44mm (W x D x H)
10.5" x 6.34" x 1.73"

Weight
4lbs (1.8kg)

Installation Type
Rack mounting or desktop

Click here for additional information

For detailed specifications, download the datasheet here

123 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Commercial
OPERATING TEMPERATURE RANGE: 0°C TO 45°C (32°F TO 113°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100 TO 240VAC, 50/60HZ
ALARM RELAY: No
MOUNT TYPE: Desktop
LAYER 3: No
POE TYPE: 802.3AF (15W), 802.3AT (30W)
POE POWER BUDGET: 250W
REDUNDANT POWER: No
10/100/1000 PORTS: 9
10 GIG PORTS: No
FIBER TYPE: 100MB SFP, 1000MB SFP
FIBER PORTS: 1
FIBER/SFP CONNECTOR: SFP
FIBER DISTANCE: SFP (VARIOUS DISTANCES)
