EX26262F V2
EtherWAN's EX26262F V2 provides a 26-port switching platform with support for IEEE802.3at Power over Ethernet, high performance switching, and the advanced management features required for enterprise environments.
Equipped with (24) 10/100/1000BASE-T PoE ports, in combination with (2) 100/1000 SFP Combo options, the EX26262F is feature-rich, with 9216 Bytes Jumbo Frame support, full wire speed Gigabit throughput, and QoS support.
The PoE ports provide up to 30 Watts per port, with a total power budget of 450 Watts, allowing the switch to operate a wide variety of Powered Devices with different bandwidth and power consumption requirements. These include IP cameras, wireless access points, IP phones, and other PoE devices.
Robust management features include port security, IGMP snooping, VLANs, GARP protocols, and LACP, as well as SNMP & RMON. An intuitive GUI for web management simplifies switch configuration, status monitoring, and maintenance effort.
- Max. PoE output power per port up to 30W, with max PoE power budget 450W
- IPv4/IPv6 Layer 3 switching
- Comprehensive QoS based on 802.1p, DSCP, and IP precedenceÂ
- High availability based on RSTP/MSTP/LACPÂ
- Integrated port security with ACL and 802.1x
Casing Material
Aluminum

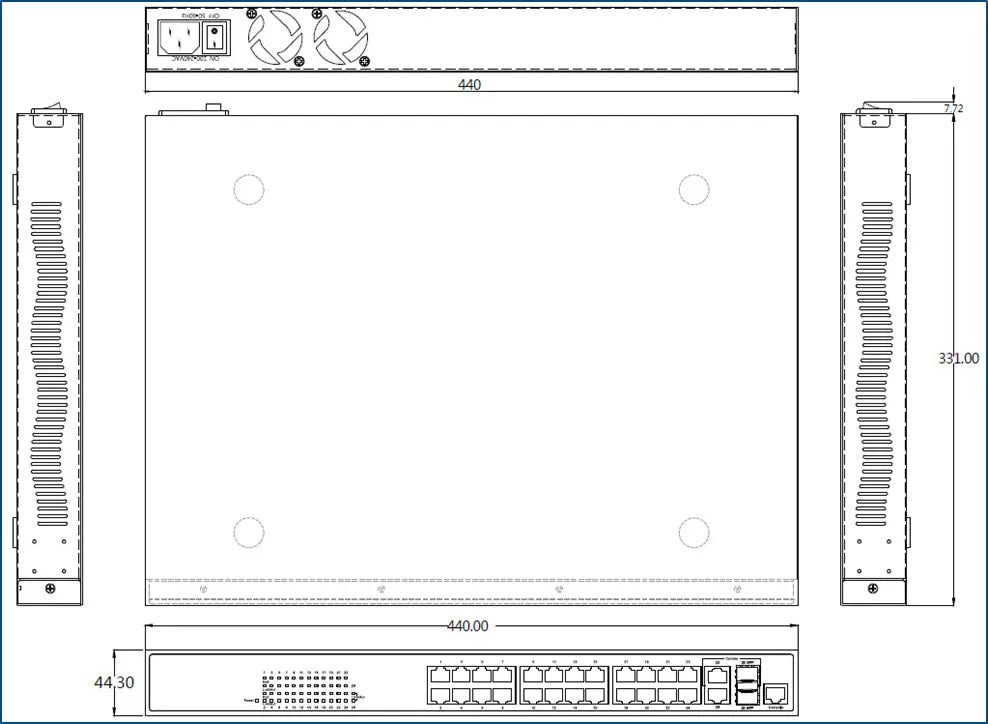

Dimensions
440mm x 330mm x 44mm (W x D x H)
17.3" x 12.99" x 1.73"
Weight
10.56lbs (5.5kg)
Installation Type
Rack Mounting
Click here for additional information
For detailed specifications, download the datasheet here
