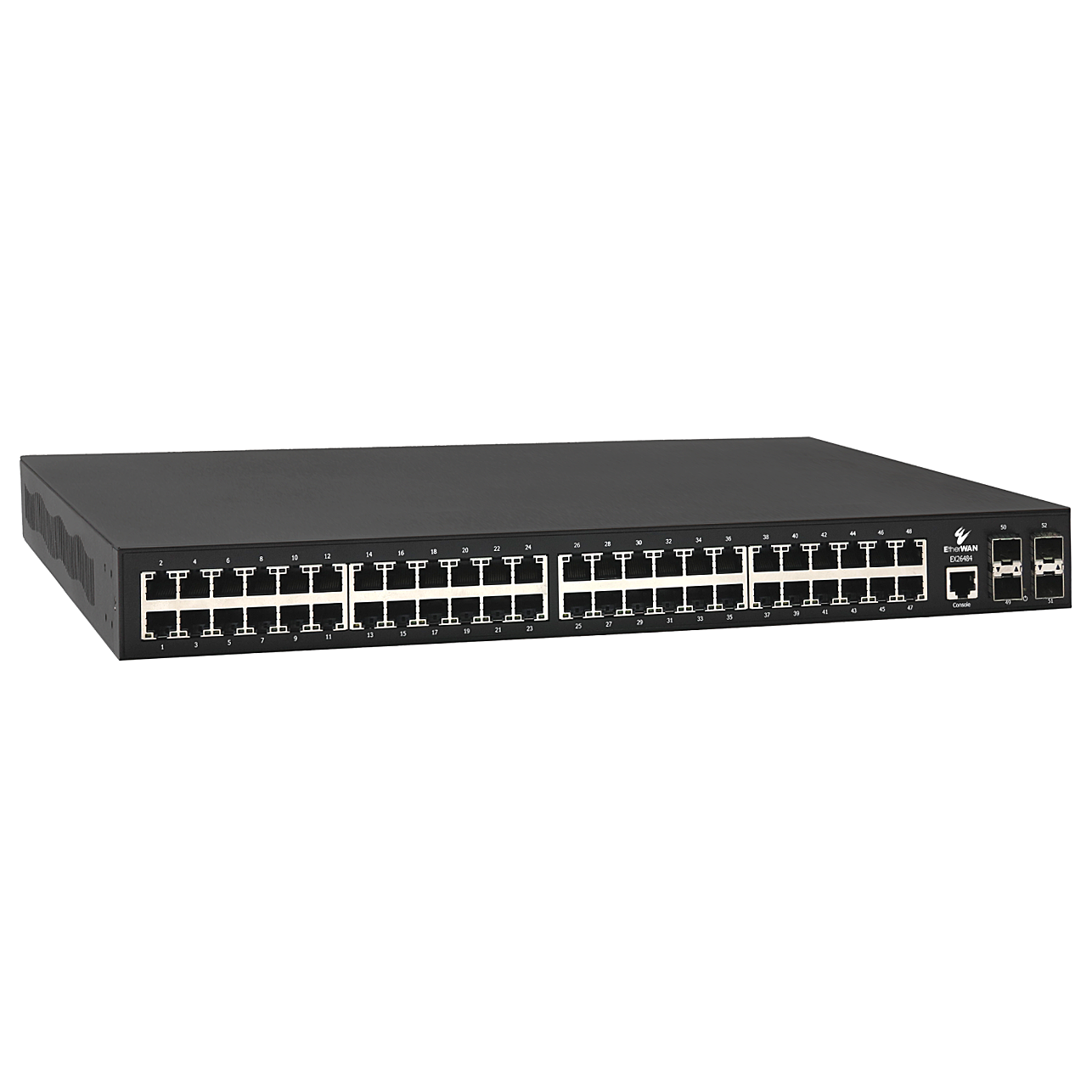

EX26484-920 - Managed 52-Port PoE Ethernet Switch (48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+) 860W Power Budget

EX26484-920 - Managed 52-Port PoE Ethernet Switch (48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+) 860W Power Budget

SKU:EX26484-920

Regular price $3,264.48 USD
Regular price Sale price $3,264.48 USD
Sale Sold out

EX26484-920 Series

EtherWAN’s EX26484-920 is a managed 52-port PoE Ethernet switch platform. Equipped with 48 gigabit PoE ports along with a high total PoE power budget of 860W and (4) 10-gigabit SFP+ ports, the EX26484-920 series provides flexibility, speed, and reliability for networks in urban infrastructure, security, and other areas where connectivity is crucial.

  • (48) 10/100/1000BASE-T(X) ports for high bandwidth connections
  • (4) 10 Gigabit fiber connections
  • Full capacity switching running at full duplex
  • PoE watchdog monitors status of connected PoE devices
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Port control and security
  • High PoE power budget

Casing Material
Aluminum

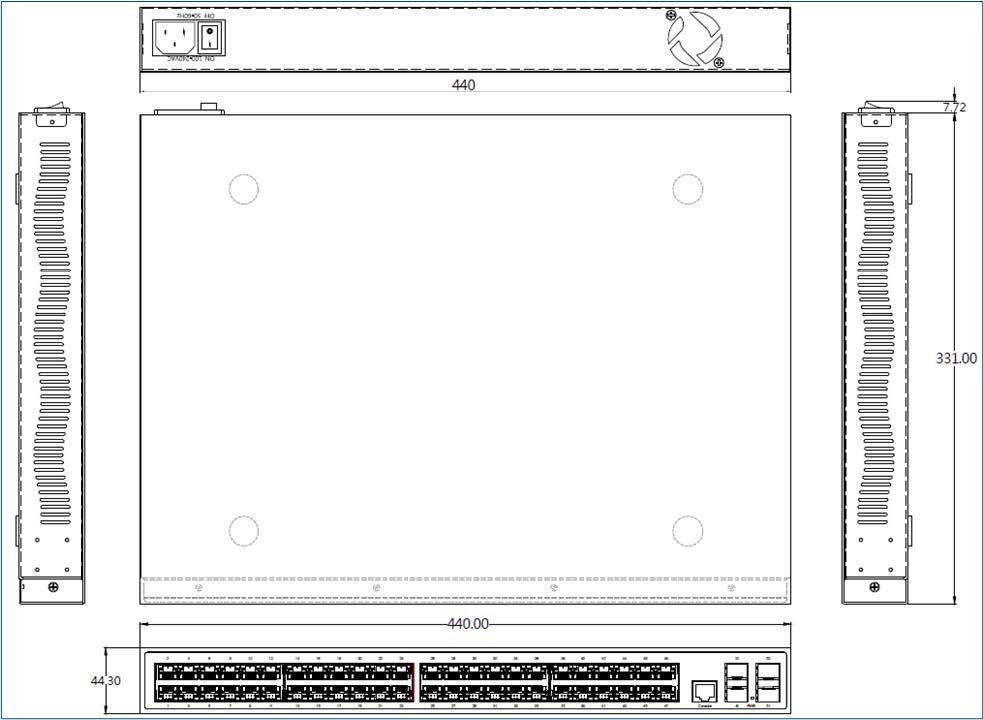

Dimensions
440mm x 380mm x 44mm (W x D x H)
(17.3" x 14.96" x 1.73")

Weight
5.5kg (12.1lbs)

Installation Type
Rack Mounting

Click here for additional information

For detailed specifications, download the datasheet here

Low stock: 3 left

View full details

Collapsible content

More Information

PRODUCT CLASS: Commercial
OPERATING TEMPERATURE RANGE: 0°C TO 50°C (32°F TO 122°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 100 TO 240VAC, 50/60HZ
ALARM RELAY: No
MOUNT TYPE: Rack
LAYER 3: No
POE TYPE: 802.3AF (15W), 802.3AT (30W)
POE POWER BUDGET: 860W
REDUNDANT POWER: No
10/100/1000 PORTS: 48
10 GIG PORTS: Yes
FIBER TYPE: 1000MB SFP, 10Gig SFP
FIBER PORTS: 4
FIBER/SFP CONNECTOR: SFP
FIBER DISTANCE: SFP (VARIOUS DISTANCES)
INDUSTRY STANDARDS: UL 62368
ROUTING PROTOCOLS: Static Routing
