EX32914-5 - Industrial Unmanaged Gigabit Ethernet Switch (4-port 10/100/1000BASE-T +1-port 1000BASE-SX (ST) - 550m

EX32914-5

INDUSTRIAL UNMANAGED 4-PORT 10/100/1000BASE-T + 1-PORT FIBER OPTICAL 1000BASE-SX (ST) - 550M

EtherWAN's EX32914-5 is a compact industrial unmanaged gigabit switching platform, designed for easy deployment in harsh environments. The EX32914-5 is equipped with 4-port 10/100/1000BASE-T plus 1-fiber port 1000BASE-SX (ST) - 550m, for long distance connectivity.

Although unmanaged, the EX32900 series is feature-rich with Jumbo Frame support, full wire speed Gigabit throughput, QoS support and eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet) compliant, making the EX32900 Series a powerful yet energy efficient network switch.

• Industrial grade, DIN Rail mounted
• Supports -10° to 60°C (14° to 140°F) operating temperature
• Palm size, full gigabit switch
• Fanless Design
• No moving parts

Casing
Plastic case
IP30

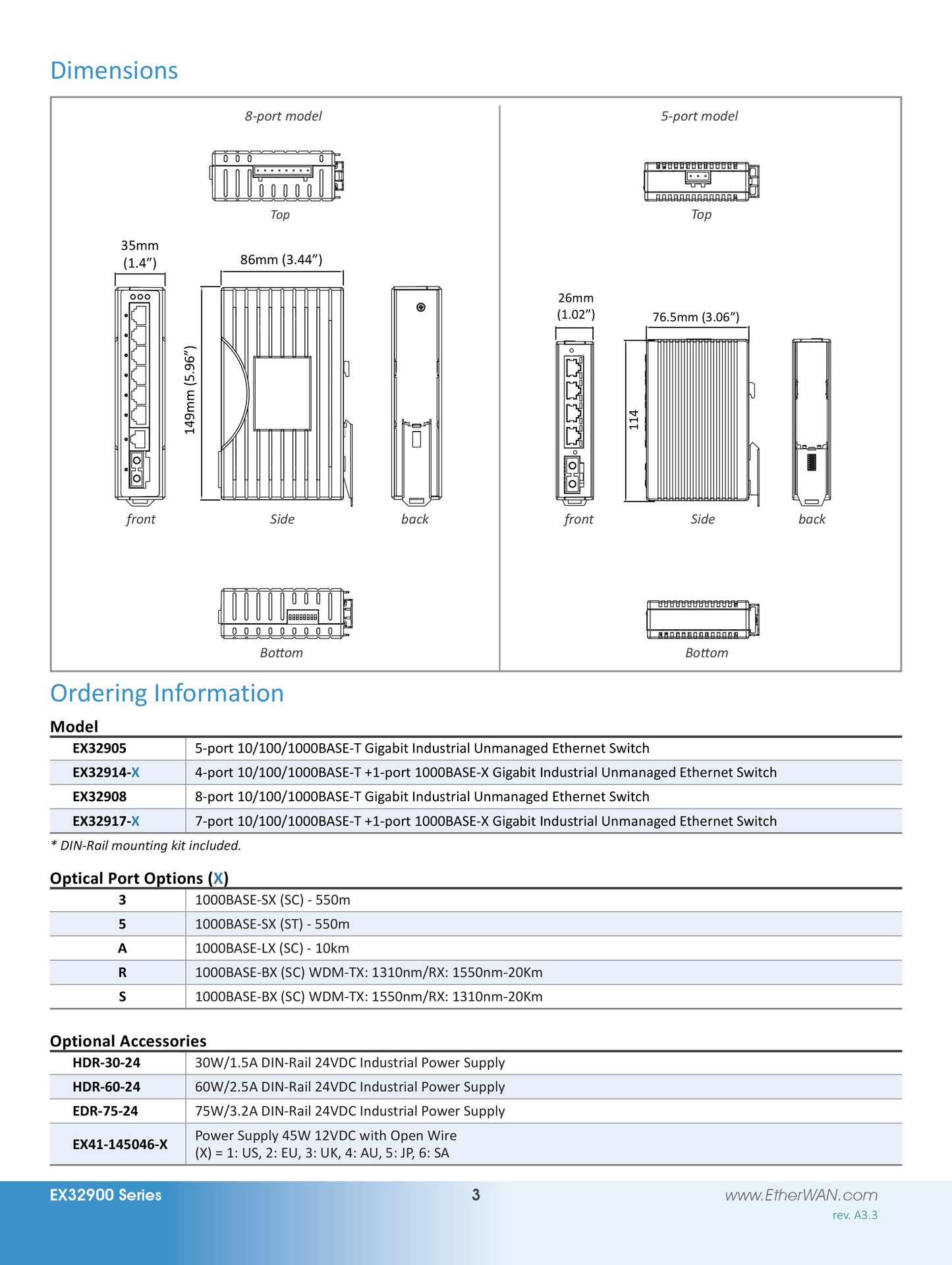

Dimensions
26mm x 76.5mm x 114mm (W x D x H)
(1.02" x 3.06" x 4.33")

Weight
0.2Kg (0.44lb.)

Installation
• DIN-Rail (Top hat type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here
