EX41922-T - Hardened Unmanaged 2-port 10/100/1000BASE PoE + 2-port 100/1000 SFP Ethernet Switch

EtherWAN’s EX41922 Series is a compact hardened unmanaged Gigabit switch, designed as an easily deployed platform for peripheral devices in harsh environments. It is a cost-effective option for surveillance systems in extreme climates.

The new EX41922-T is equipped with two 10/100/1000Base RJ-45 copper ports supporting Power over Ethernet (PoE), and two 100/1000Base SFP fiber optic slots for long distance connectivity. The two uplink SFP interfaces provide 100 or 1000SFP speed, selected by DIP switch. They can be used in a daisy chain formation, and are compatible with the proprietary Alpha-chain redundancy protocol when used with a compatible EtherWAN managed switch. Moreover, EX41922-T provides up to 30 Watts PoE per port with a total power budget of 60 Watts. Although unmanaged, the EX41922-T is feature-rich with 10K Jumbo Frame support, full wire speed Gigabit throughput, QoS support, and eco-friendly IEEE802.3az EEE (Energy Efficient Ethernet) compliance. With its hardened specifications, high performance, and energy efficiency, the EX41922-T is a flexible and reliable solution for extended networks.

• Supports -40 to 75°C (-40 to 167°F) operating temperature
• Redundant power inputs on terminal block connector
• Supports DIN-Rail mounting
• Up to two 1000BASE SFP ports for daisy chain or Alpha-chain applications
• Provides 100BASE or 1000BASE SFP by DIP switch
• Provide relay alarm to notify users when power fails or link down occurs by DIP switch
• Gigabit wire-speed transmission for bandwidth-demanding application
• Jumbo frame up to 10K bytes to increase throughput and transmission efficiency

Casing
Metal case
IP30

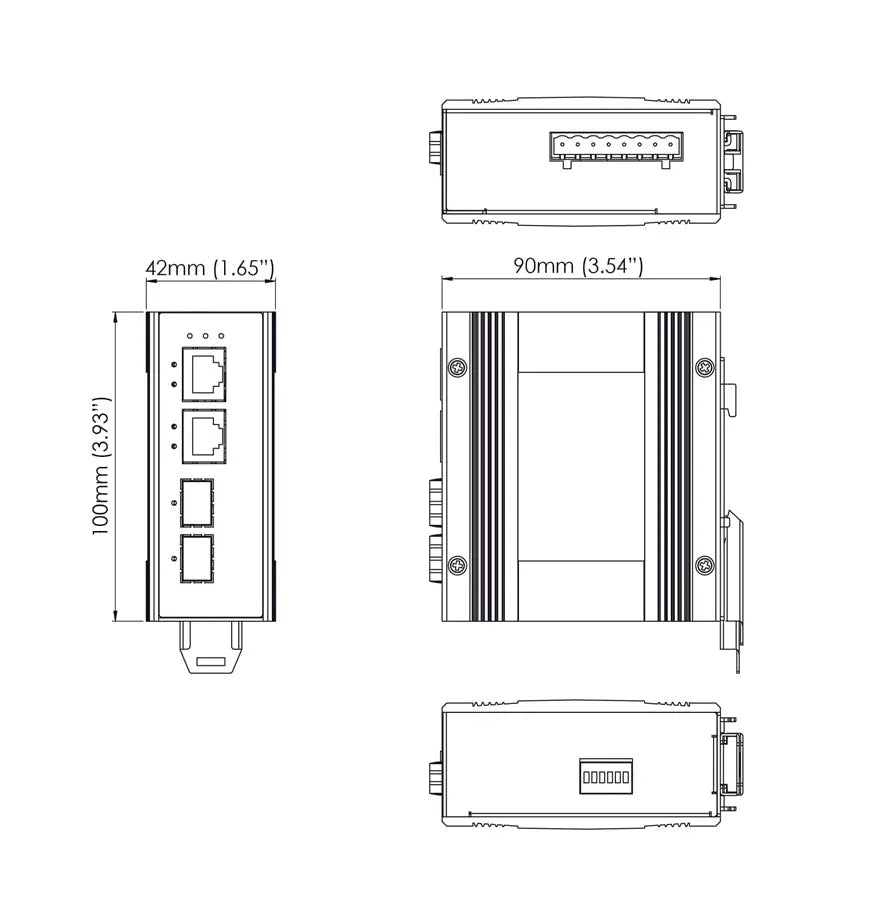

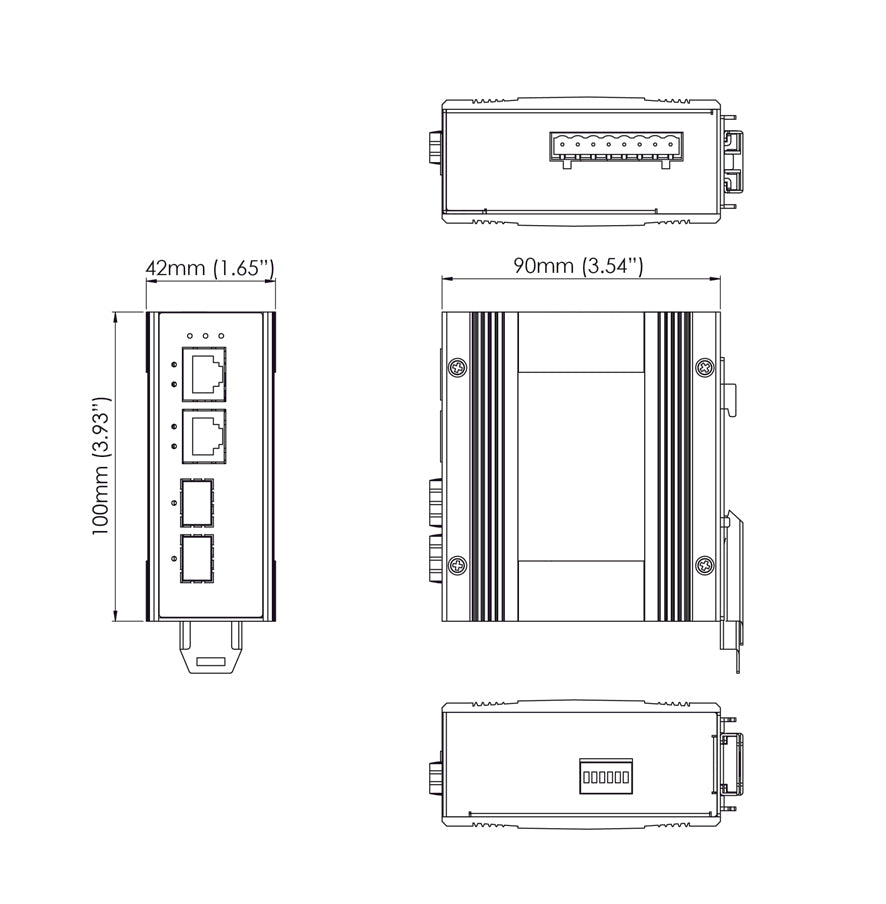

Dimensions
42mm x 90mm x 100mm (W x D x H)
(1.65" x 3.54" x 3.93")

Weight
0.37Kg (0.82lb)

Installation
DIN-Rail
