EX41941 - Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch
EX41941 - Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch
SKU:EX41941
EX41941
EtherWAN’s EX41941 is a compact hardened unmanaged PoE switch which can be wall or DIN-rail mounted. The (4) gigabit PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. (1) RJ45 uplink port provides flexibility for data transmission and cascading. The EX41941 provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.
- Up to 30W output per port for various security, LED lighting, and other applications
- Total PoE power budget of 120W
- Backward compatible with 802.3af devices
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Hardened-Grade for non-ventilated & harsh environments
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Casing Material
Aluminum
IP Rating
IP30

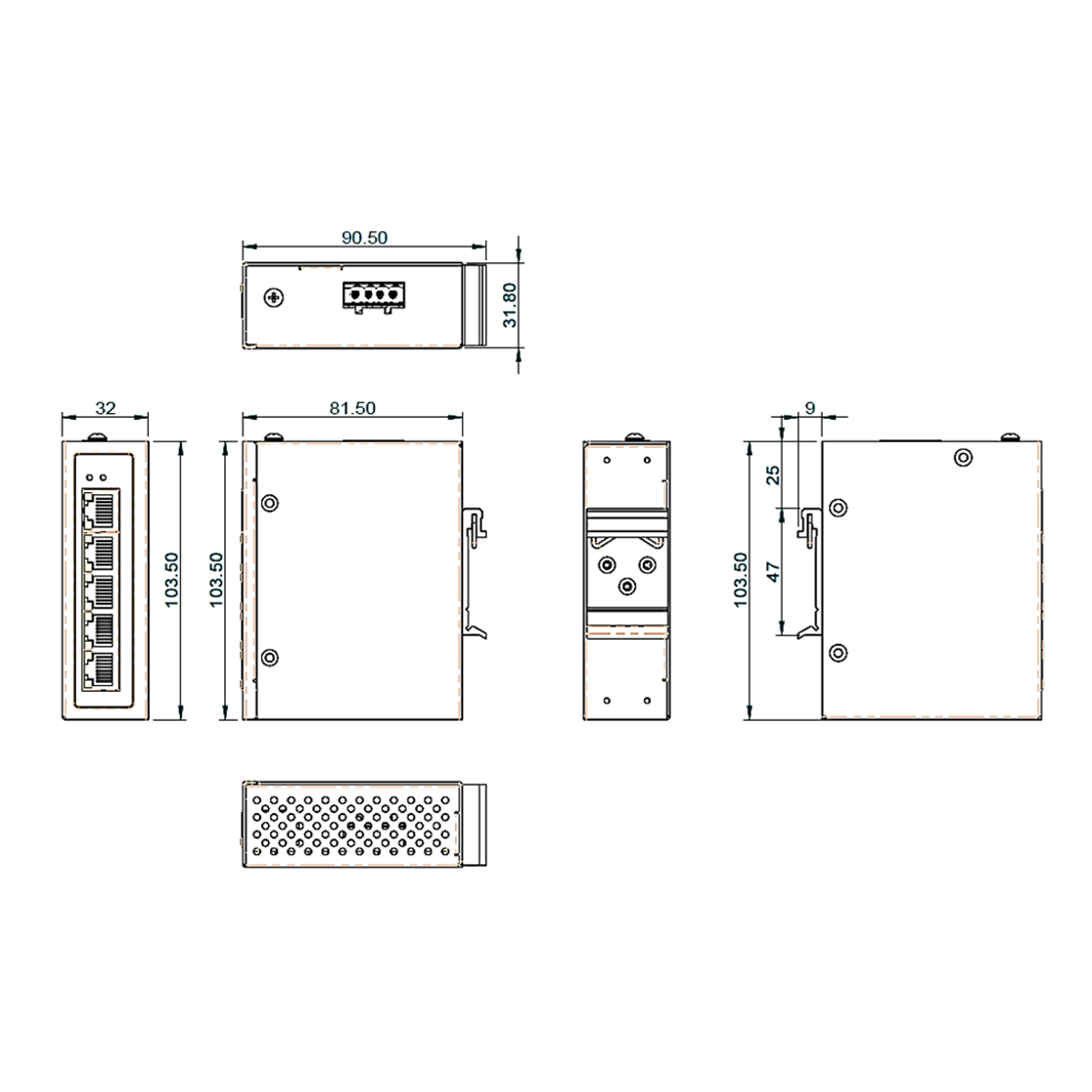

Dimensions
1.26" x 3.21" x 4.07" (W x D x H)
32mm x 81.5mm x 103.5mm
Weight
1.0lbs (0.45kg)
Installation Type
DIN-rail or wall/panel mounting
Share
46 in stock
View full detailsCollapsible content
More Information
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F) Tested @ -40 to 85°C (-40 to 185°F)
MANAGEMENT TYPE: Unmanaged
POWER INPUT: 48 to 56VDC
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail, Panel, Wall
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w)
POE POWER BUDGET: 120W
REDUNDANT POWER: Yes
10/100/1000 PORTS: 4
