EX41941F - Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch

EX41941F

EtherWAN’s EX41941F is a compact hardened unmanaged flat form factor PoE switch which can be wall or DIN-rail mounted. (4) gigabit PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. (1) RJ45 uplink port provides flexibility for data transmission and cascading. The EX41941F provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.

• Up to 30W output per port for various security, LED lighting, and other applications
• Total PoE power budget of 120W
• Backward compatible with 802.3af devices
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Hardened-Grade for non-ventilated & harsh environments
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing Material
Aluminum

IP Rating
IP30

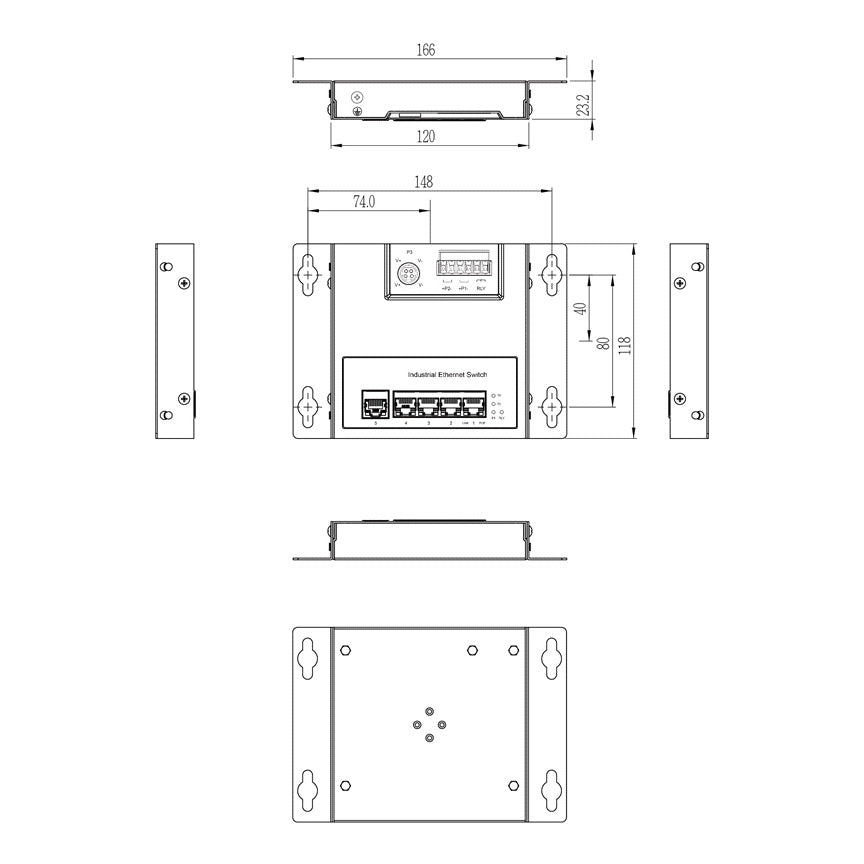

Dimensions
4.7" x 0.91" x 6.5" (W x D x H)
118mm x 23.2mm x 166mm

Weight
1.0lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting
