EX42005-00-1-A - 5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV surge protection

EX42005-00-1-A - 5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV surge protection

SKU:EX42005-00-1-A

Regular price $120.65 USD
Regular price Sale price $120.65 USD
Sale Sold out

EX42005-00-1-A

EtherWAN's EX42000 Series is a compact industrial unmanaged Fast Ethernet switch, designed for easy deployment in harsh environments.

The EX42000-00-1-A is equipped with 5 Fast Ethernet copper ports. This switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation, and auto MDI/MDIX operation, allowing for fast and hassle-free connection and setup.

Although unmanaged, the EX42000 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), Broadcast storm protection, IEEE 802.3az EEE (Energy Efficient Ethernet), and 4 kV surge protection. The EX42000 can be DIN rail mounted, and its compact size makes it an ideal solution for factory floors, warehouses, and locations without climate control.

  • Palm-size design for areas with limited space
  • Broadcast storm protection
  • Supports -10 to 60°C (14 to 140°F) operating temperature
  • Supports DIN-Rail mounting
  • Augmented 4 kV surge protection in accordance with EN 61000-4-5
  • 30 Frames / 10ms for 100Mbps

Casing Material
Plastic Case

IP Rating
IP30

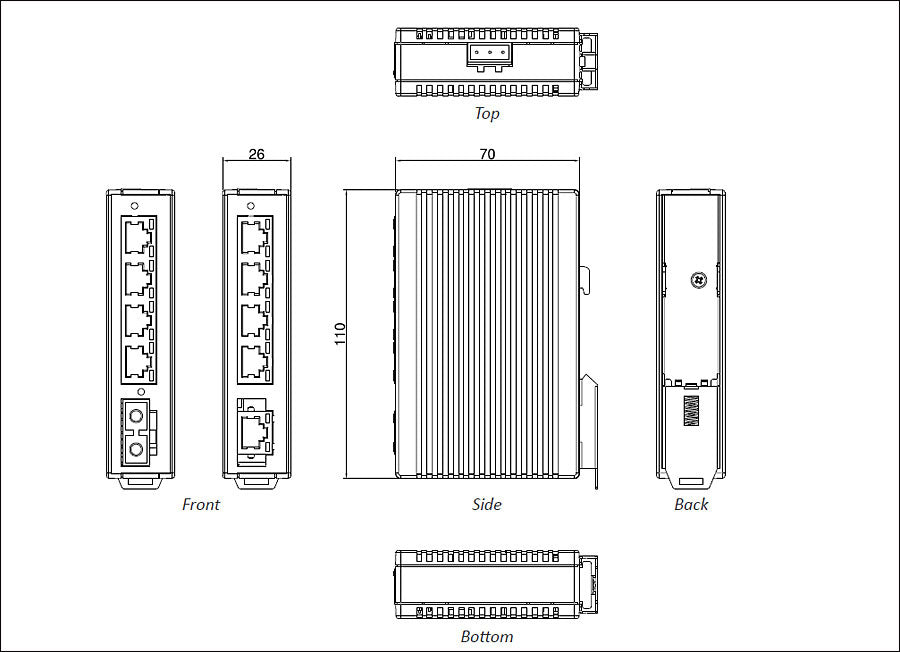

Dimensions
26mm x 70mm x 110mm (W x D x H)
1.02" x 2.76" x 4.33"

Weight
0.2Kg (0.44lbs.)

Installation Type
DIN-Rail (Top hat type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here

89 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -10 to 60°C (14 to 140°F)
MANAGEMENT TYPE: Unmanaged
POWER INPUT: 12 to 48VDC Terminal Block
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail
LAYER 3: No
POE TYPE: None
REDUNDANT POWER: No
10/100 PORTS: 5
INDUSTRY STANDARDS: UL 62368
