EX42005-00-1-A : Unmanaged Ethernet Switch : 5-port 10/100BASE-TX

EX42005-00-1-A : Unmanaged Ethernet Switch

EtherWAN EX42005-00-1-A unmanaged ethernet switch is a compact industrial unmanaged Fast Ethernet switch, designed for easy deployment in harsh environments.

The EX42000-00-1-A unmanaged ethernet switch is equipped with (5) Fast Ethernet copper ports. This switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation, and auto MDI/MDIX operation, allowing for fast and hassle-free connection and setup.

Although unmanaged, the EX42005-00-1-A is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), broadcast storm protection, IEEE 802.3az EEE (Energy Efficient Ethernet), and 4 kV surge protection.

The EX42005-00-1-A can be DIN rail mounted, and its compact size makes it an ideal solution for factory floors, warehouses, and locations without climate control.

• (5) Fast Ethernet copper ports
• Palm-size design for areas with limited space
• Broadcast storm protection
• Industrial -10 to 60°C (14 to 140°F) operating temperature
• Supports DIN-Rail mounting
• Augmented 4 kV surge protection in accordance with EN 61000-4-5
• 30 Frames / 10ms for 100Mbps

Casing Material
Plastic Case

IP Rating
IP30

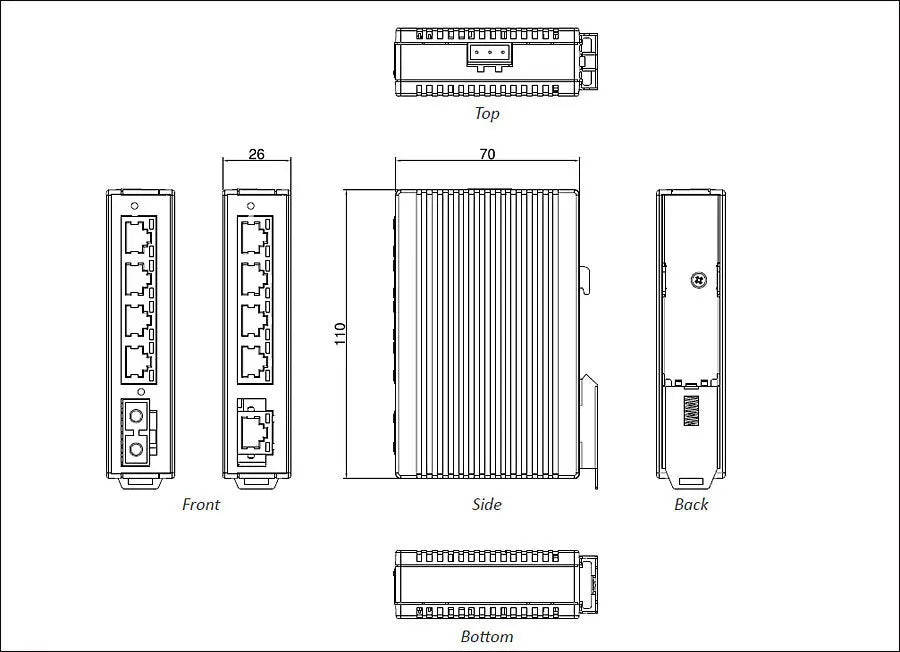

Dimensions
26mm x 70mm x 110mm (W x D x H)
1.02" x 2.76" x 4.33"

Weight
0.2Kg (0.44lbs.)

Installation Type
DIN-Rail (Top hat type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here
