EX42395AT - Hardened Unmanaged 4-Port Gigabit PoE Ethernet Switch & 2-Port Gigabit SFP/RJ45 Combo

EX42395AT

EtherWAN’s EX42395AT is a hardened unmanaged PoE switch which can be wall or DIN-rail mounted. 4 gigabit PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. 2 SFP/RJ45 combo uplink ports provide flexibility for data transmission and cascading. The EX42395AT provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.

• High-Power PoE - up to 30W
• 120W PoE power budget
• Hardened-Grade for non-ventilated & harsh environments
• Up to 30W output per port for various security, LED lighting, and other applications
• Total PoE power budget of 120W
• Backward compatible with 802.3af devices
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing Material
Aluminum

IP Rating
IP30

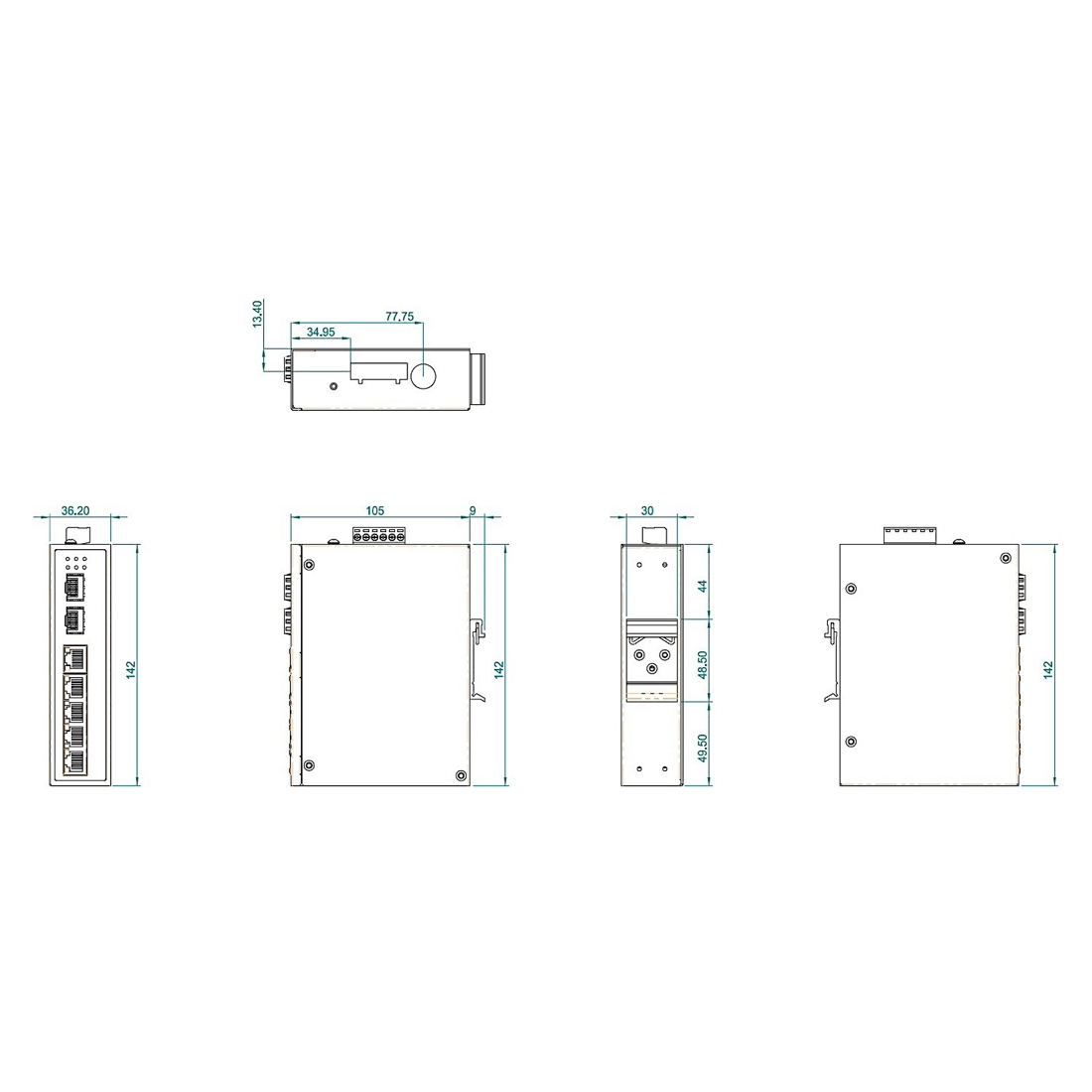

Dimensions
1.43" x 4.13" x 5.6" (W x D x H)
36.2mm x 105mm x 142mm

Weight
1.0lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
