EX42395AT : Industrial PoE Switch : 4-Port Hardened SFP Ethernet

EX42395AT : Industrial PoE Switch

EtherWAN EX42395AT industrial PoE switch is a hardened, unmanaged, PoE switch which can be wall or DIN-rail mounted. Four gigabit PoE ports provide up to 30W output per port, with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. Two SFP/RJ45 combo uplink ports provide flexibility for data transmission and cascading.

The EX42395AT industrial PoE switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the EX42395AT is designed to operate at -40°C to 75°C (-40°F to 167°F) in harsh environments, where high ESD, shock, and vibration may be present.

• Up to 30W output per port for various security, LED lighting, and other applications

• 120W PoE power budget
• Hardened operating temperature range -40 to 75°C (-40 to 167°F)

• Backward compatible with 802.3af devices

• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing Material
Aluminum

IP Rating
IP30

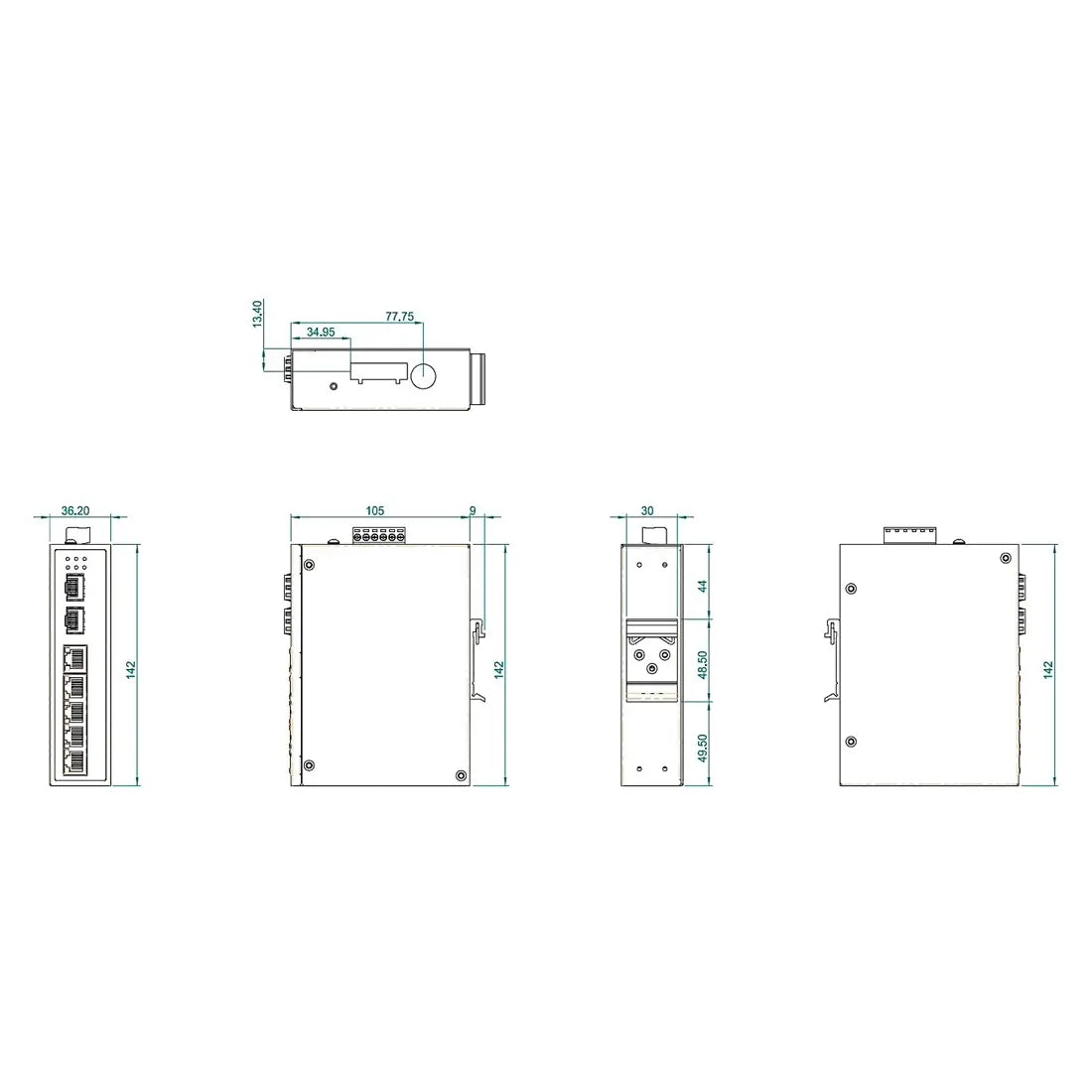

Dimensions
1.43" x 4.13" x 5.6" (W x D x H)
36.2mm x 105mm x 142mm

Weight
1.0lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
