EX42395BT - Hardened Unmanaged 6-Port Gigabit PoE Switch (4-port 10/100/1000BASE-T PoE + 1-port Combo Gigabit TX/SFP + 1-port 100/1000BASE SFP)

EX42395BT - Hardened Unmanaged 6-Port Gigabit PoE Switch (4-port 10/100/1000BASE-T PoE + 1-port Combo Gigabit TX/SFP + 1-port 100/1000BASE SFP)

SKU:EX42395BT

Regular price $638.70 USD
Regular price Sale price $638.70 USD
Sale Sold out

EX42395BT

EtherWAN's EX42395BT is a compact hardened unmanaged DIN-rail mounted PoE switch. Equipped with 4 gigabit PoE ports using that provides up to 90W output per port using the latest IEEE 802.3bt PoE technology and 2 dual-rate gigabit SFP ports, the EX42395BT provides the power required to support various security, LED lighting, and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.

  • High power PoE using the latest IEEE 802.3bt technology
  • Hardened-grade for non-ventilated and harsh environments
  • Up to 90W output per port for various security, LED lighting, and other applications
  • Dual-speed SFP slots provide fiber connectivity
  • Backward compatible with 802.3af and 802.3at devices
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance
  • Combo TX/SFP port provides extra copper or fiber connectivity
  • Convenient DIP switches control SFP speed and combo port


Casing Material
Aluminum

IP Rating
IP30

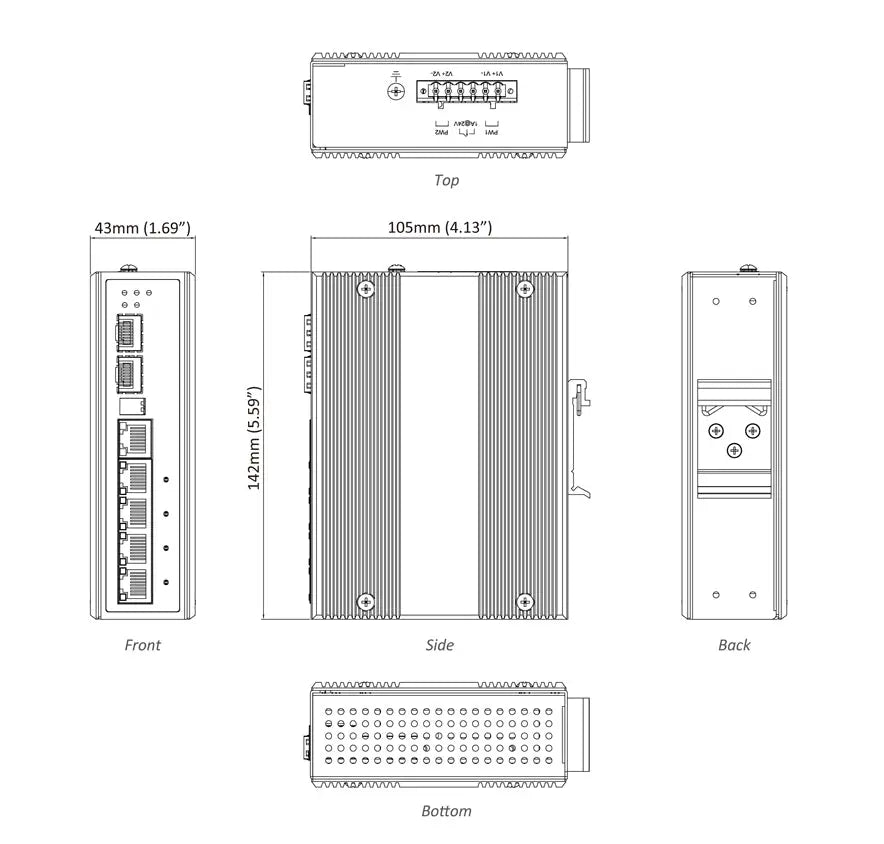

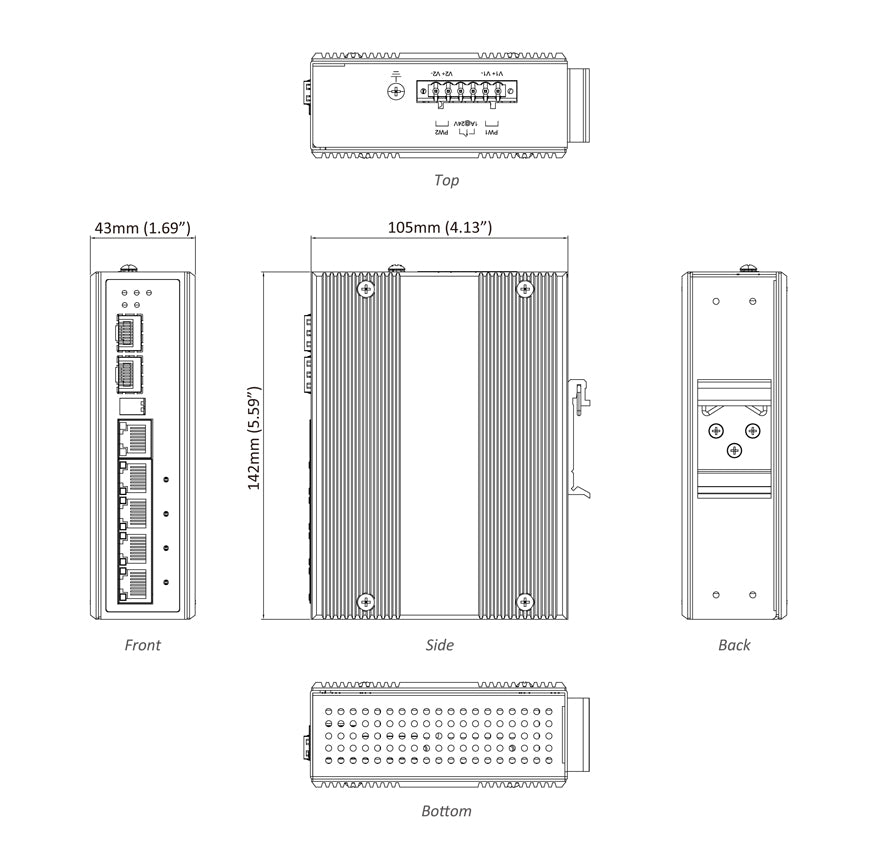

Dimensions
43mm x 105mm x 142mm (W x D x H)
1.69" x 4.13" x 5.59"

Weight
1.5lbs (0.68kg)

Installation Type
DIN-rail or wall mounting

Click here for additional information

For detailed specifications, download the datasheet here

29 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F) Tested @ -40 to 85°C (-40 to 185°F)
MANAGEMENT TYPE: Unmanaged
POWER INPUT: 48 to 56VDC
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail, Panel, Wall
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 240W
REDUNDANT POWER: Yes
10/100/1000 PORTS: 4
FIBER TYPE: 100MB SFP, 1000MB SFP
FIBER PORTS: 2
FIBER/SFP CONNECTOR: SFP
FIBER DISTANCE: SFP (Various distances)
INDUSTRY STANDARDS: UL 60950
